Seat Belt Timer/Buzzer

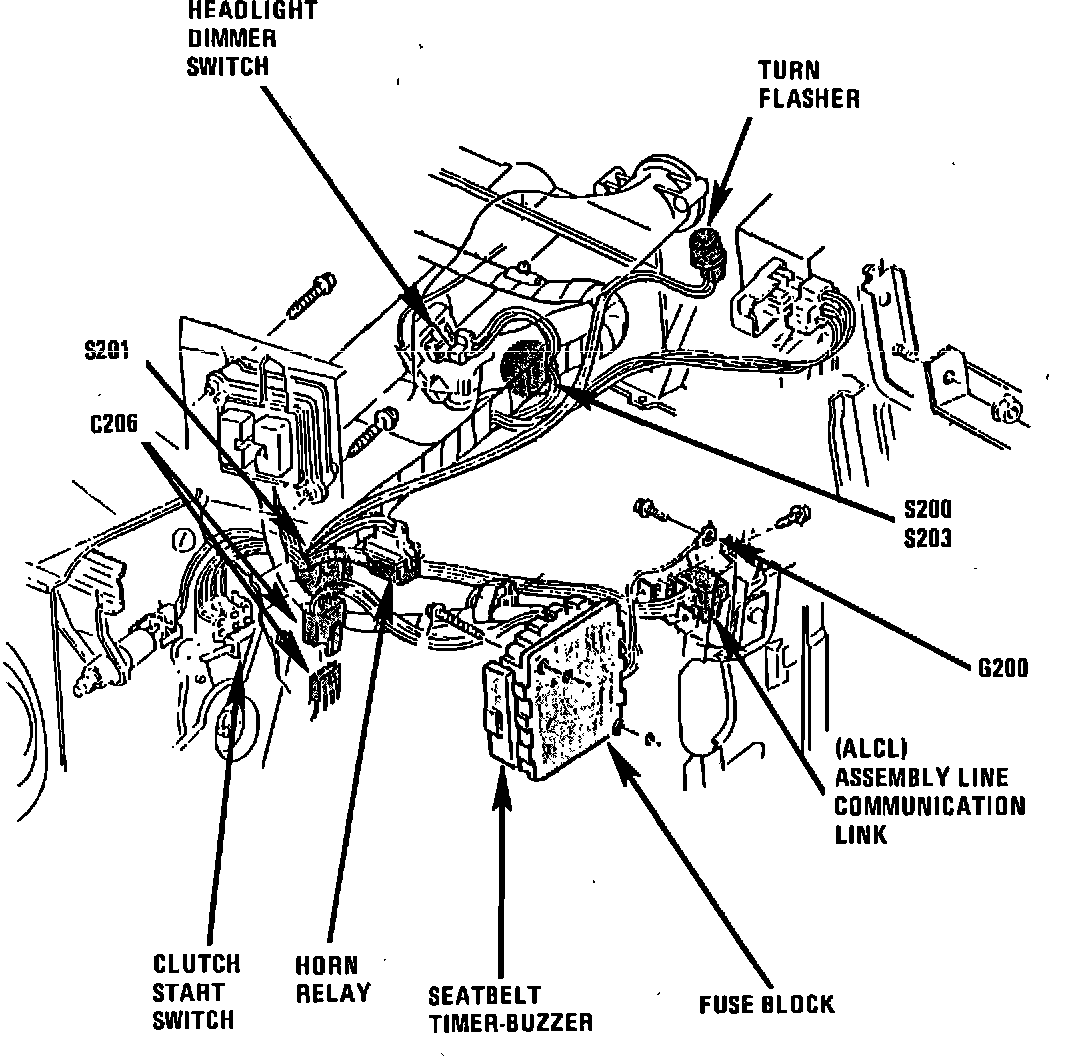

Seat Belt Timer/Buzzer
Behind LH Side Of I/P:
Below LH Side Of I/P, On RH Side Of Fuse Panel
