Home >> Cadillac >> 2013 >> XTS FWD V6-3.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Control Valve Assembly >> Locations

Compressor Control Valve Assembly: Locations





Powertrain Component Views

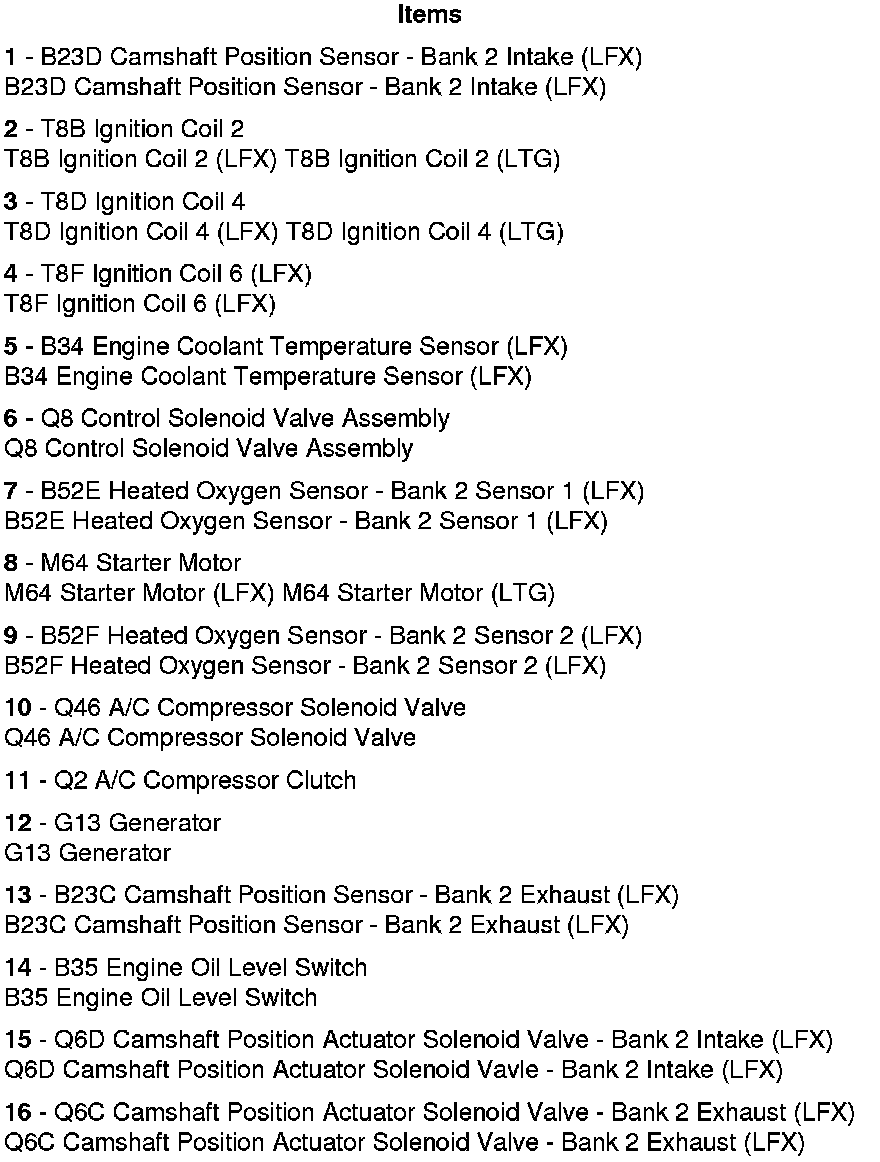

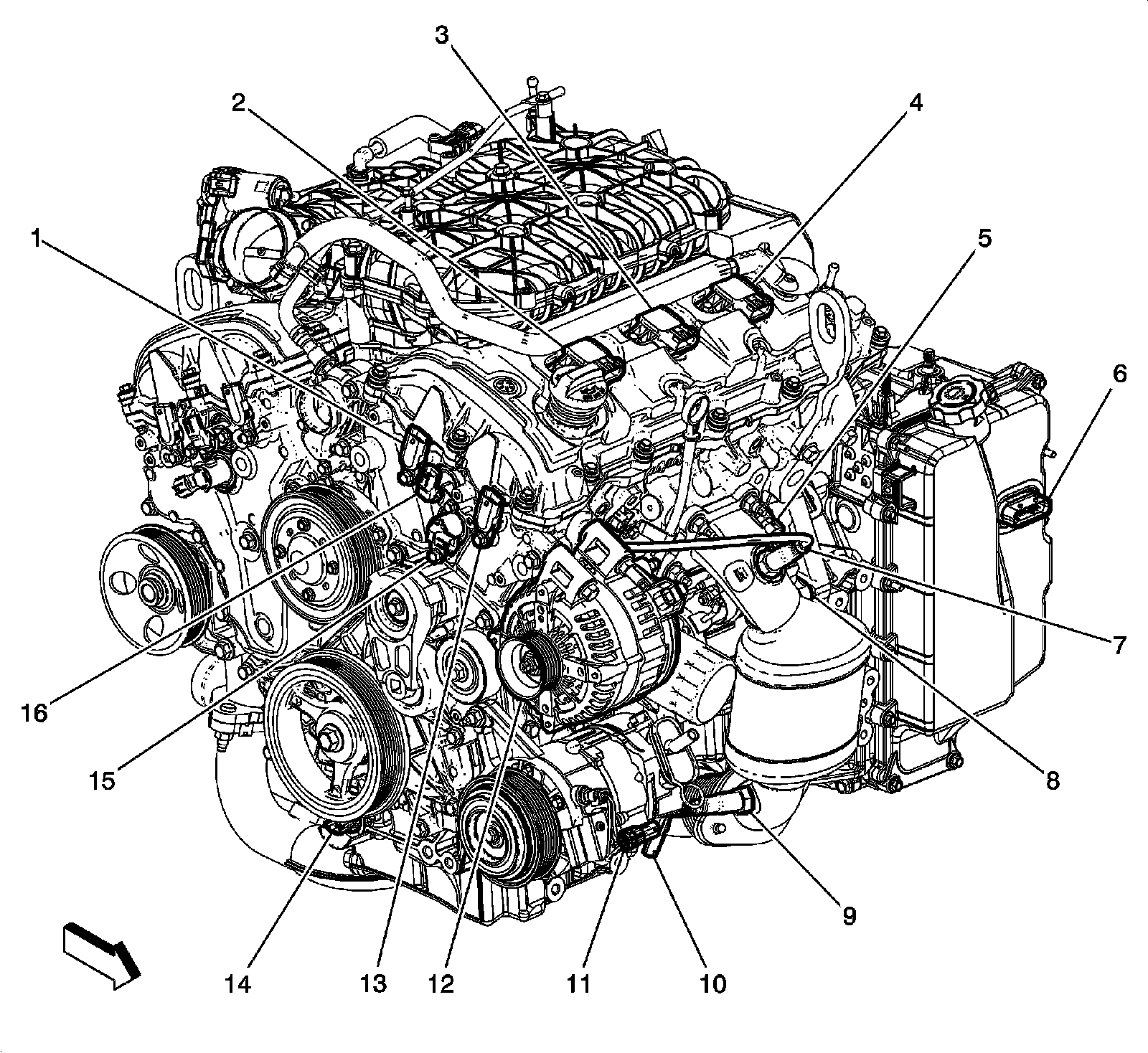

Front and Right Side of Engine Components (LFX)
