Rear Differential Clutch Control Module X2
Rear Differential Clutch Control Module X2

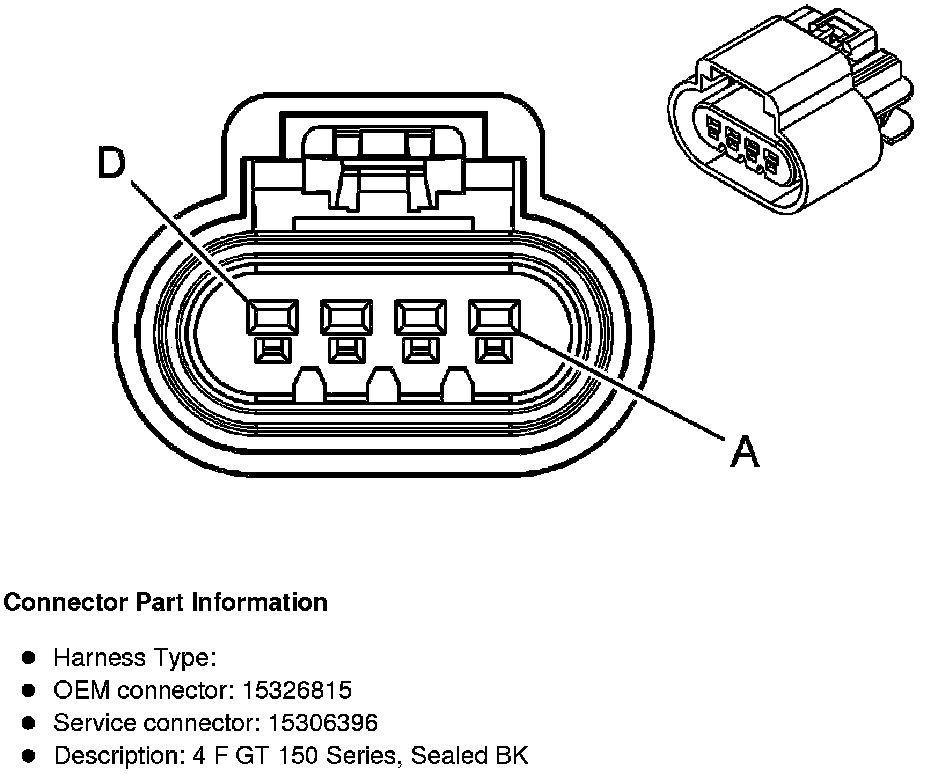

Component Connector End Views

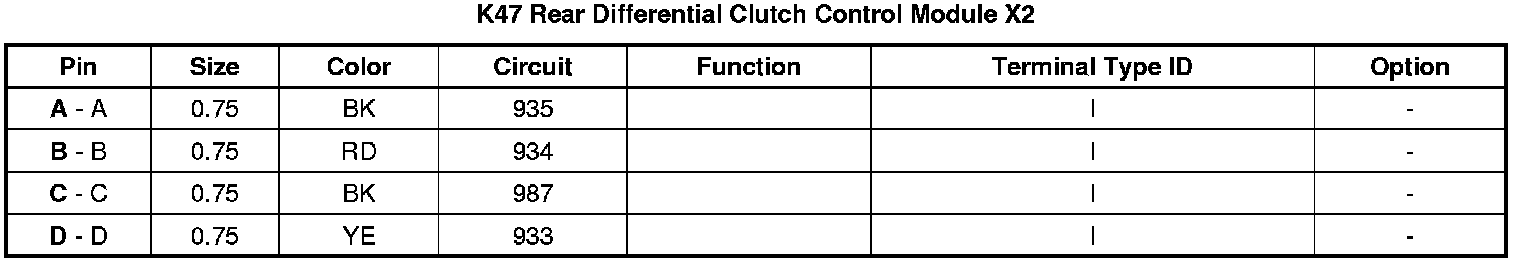

K47 Rear Differential Clutch
Control Module
X2
