Home >> Cadillac >> 2012 >> SRX FWD V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations




Electrical Center Identification Views

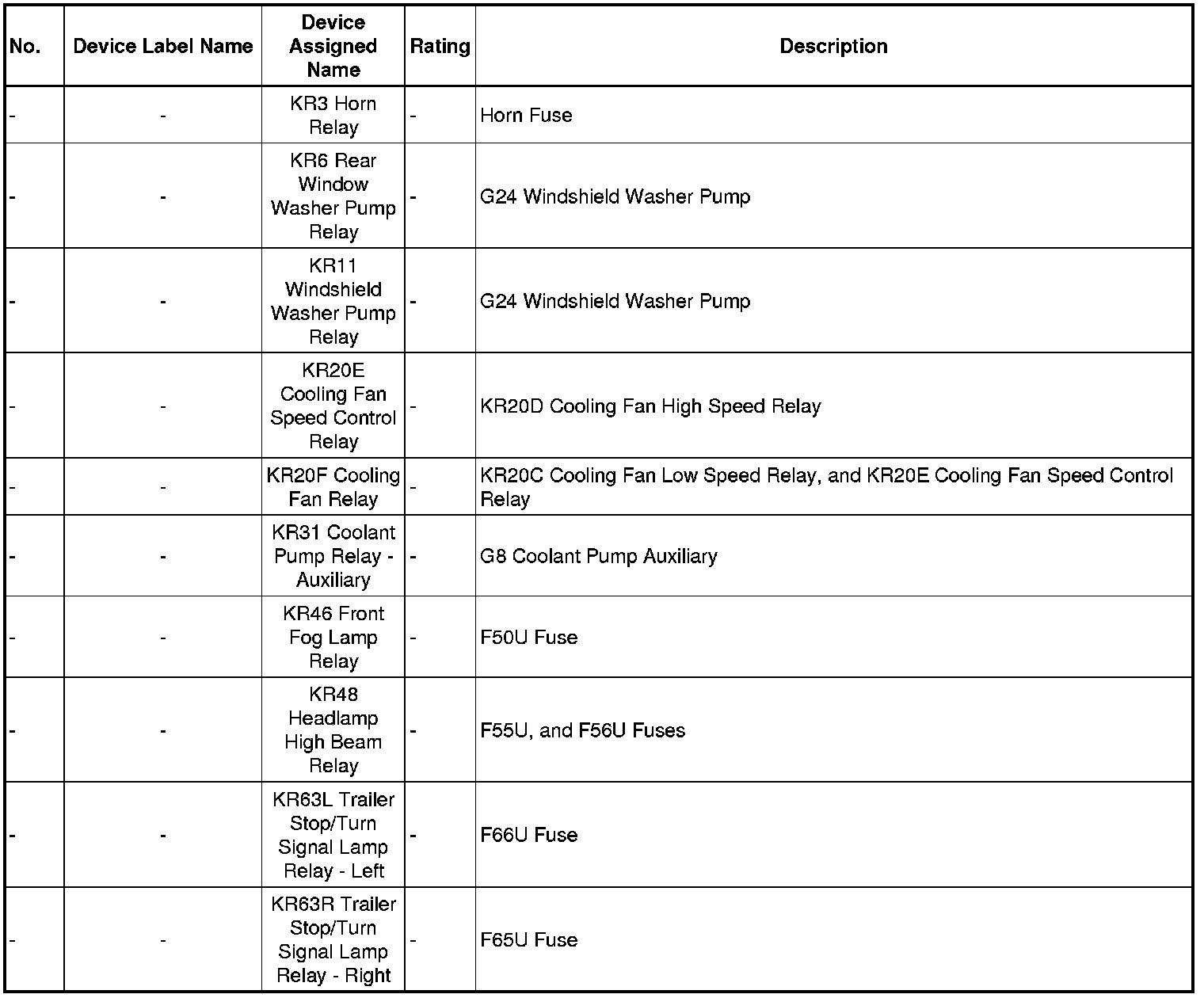

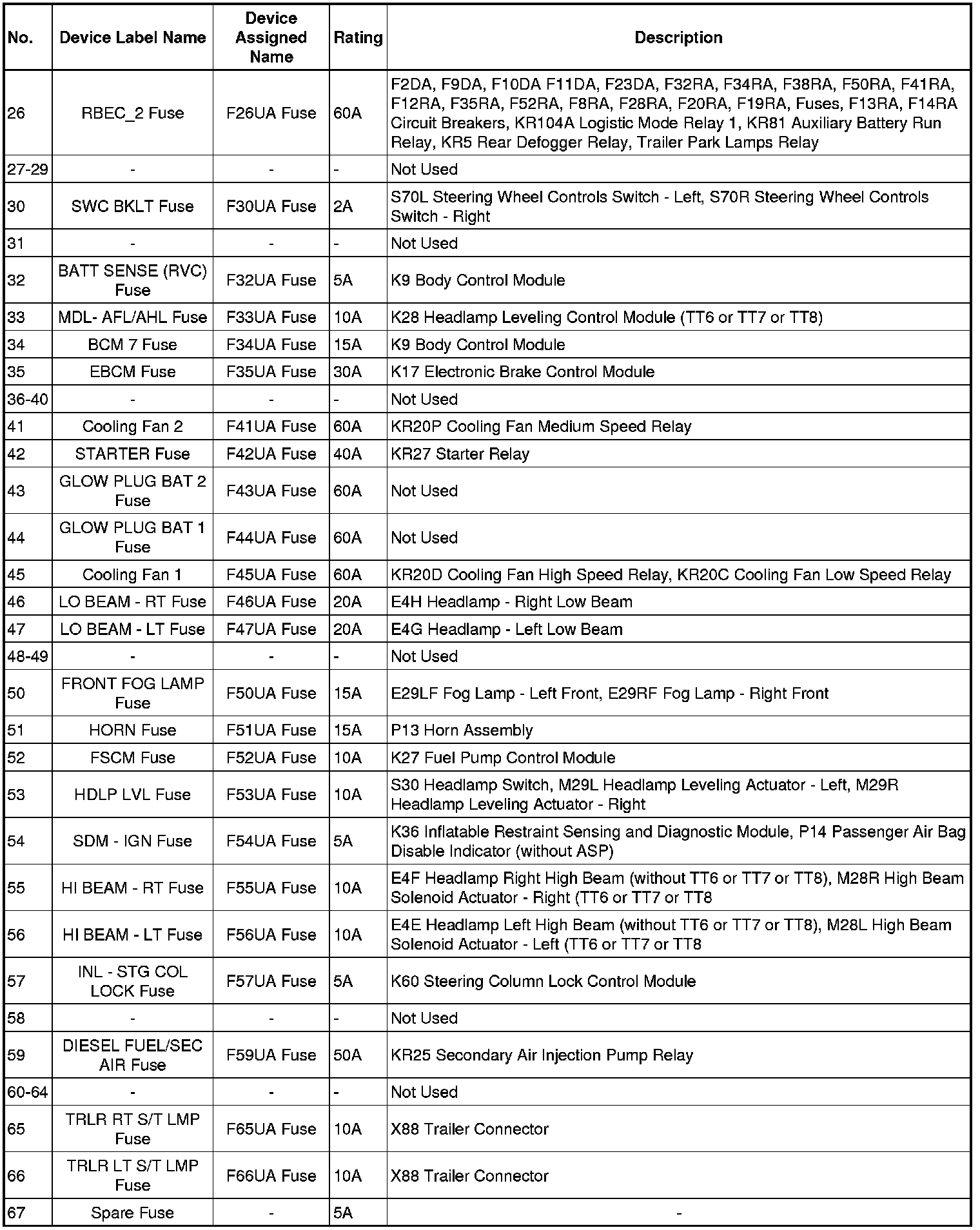

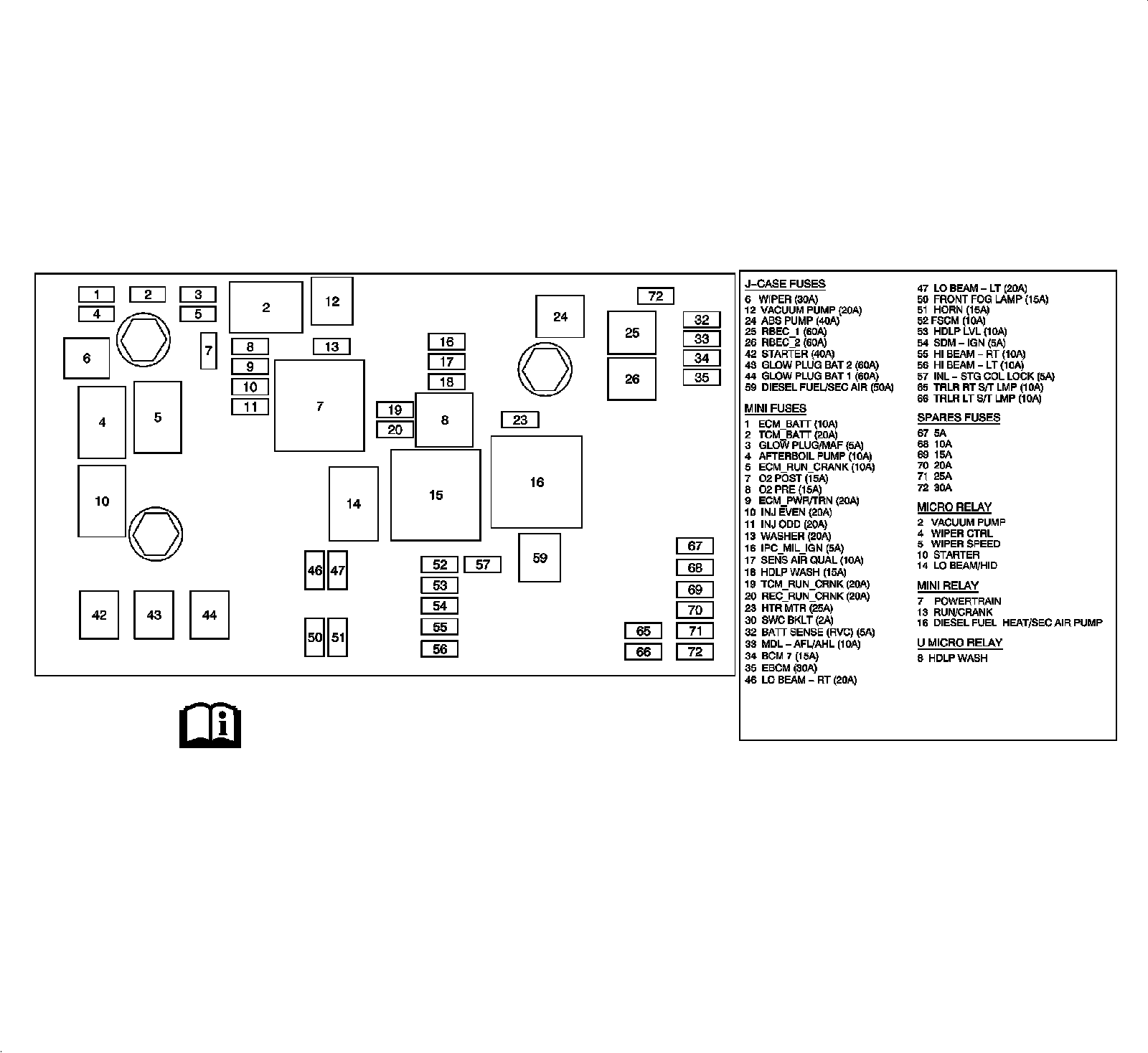

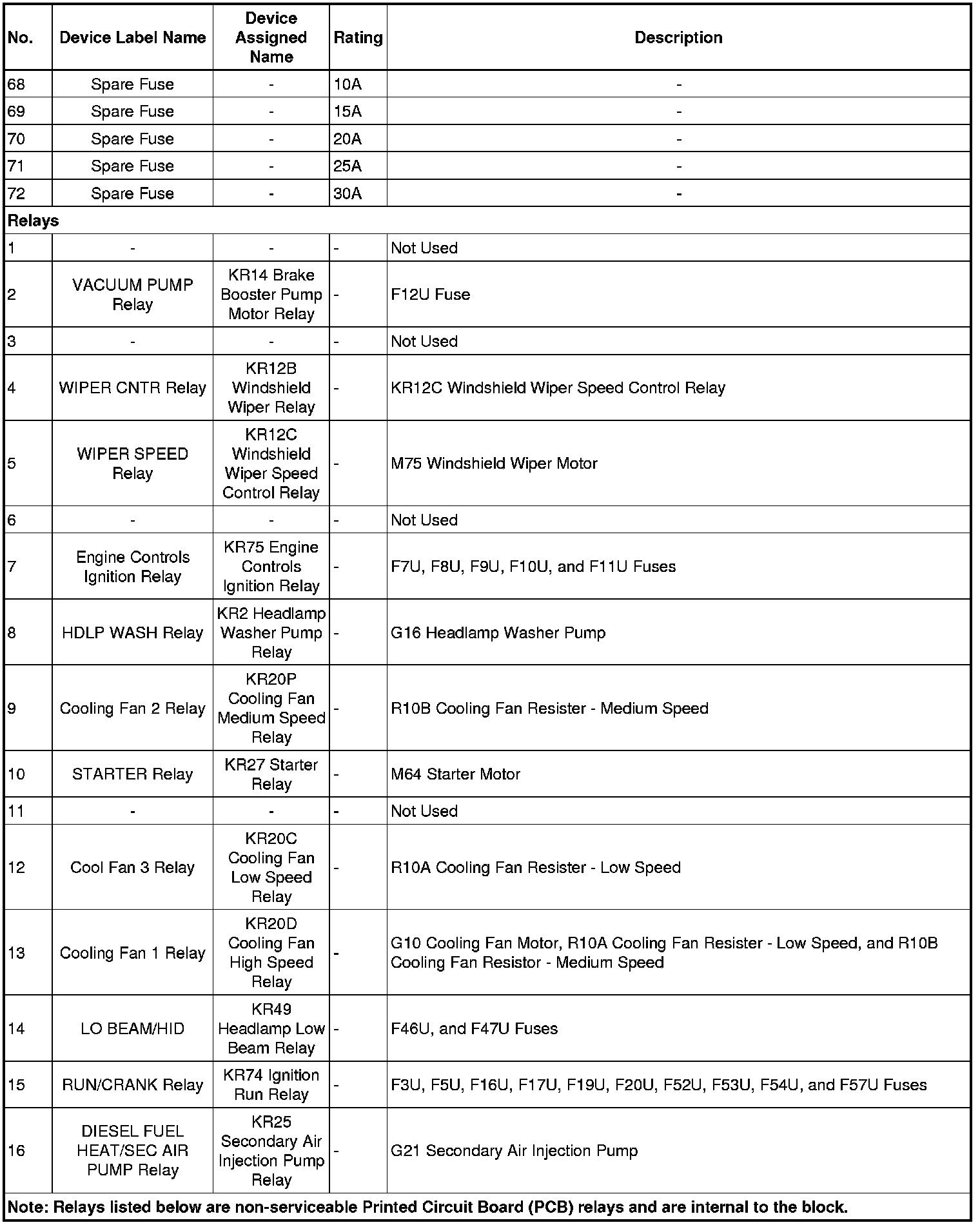

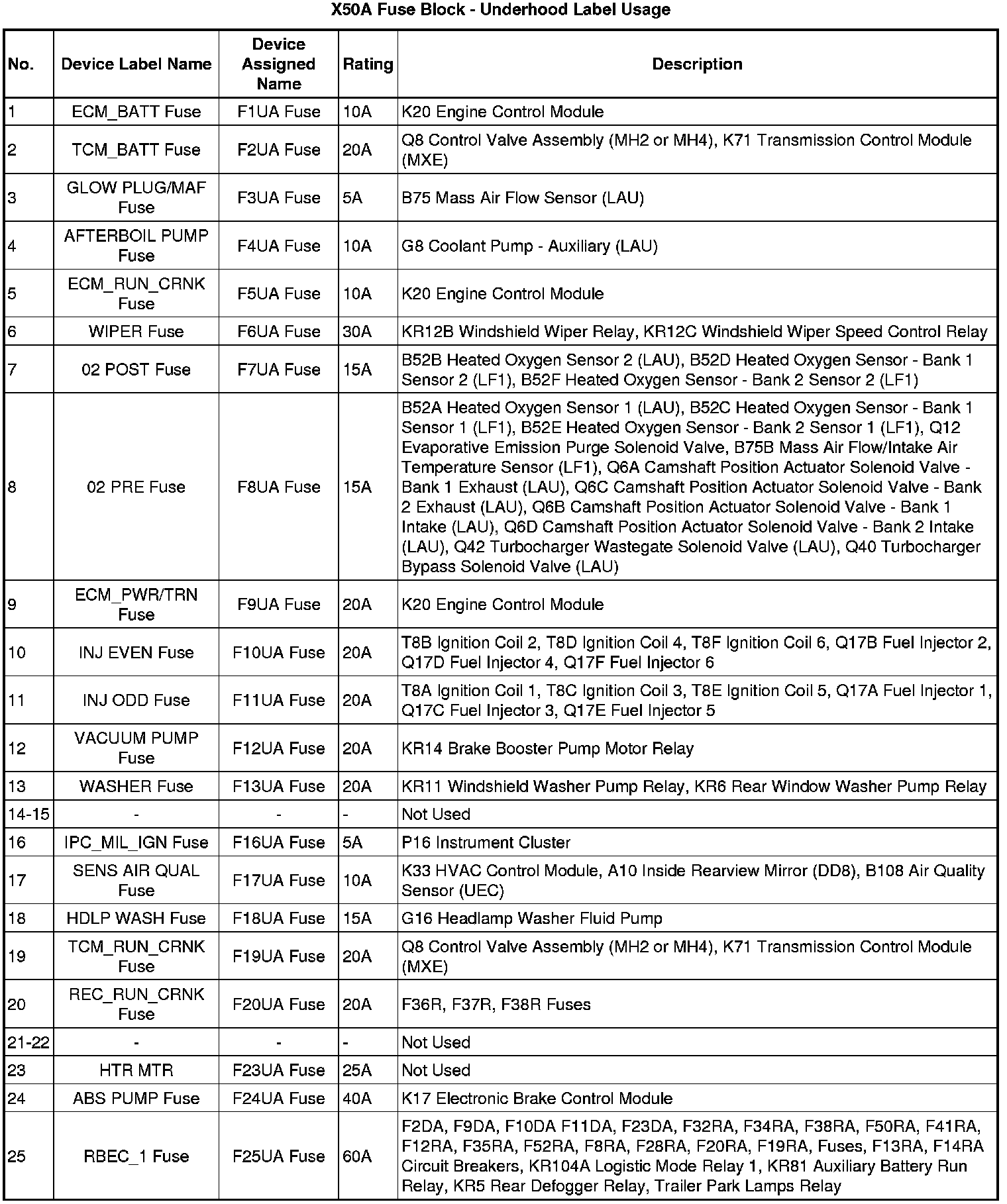

X50A Fuse Block - Underhood Label
