Air Flow Meter/Sensor: Diagrams

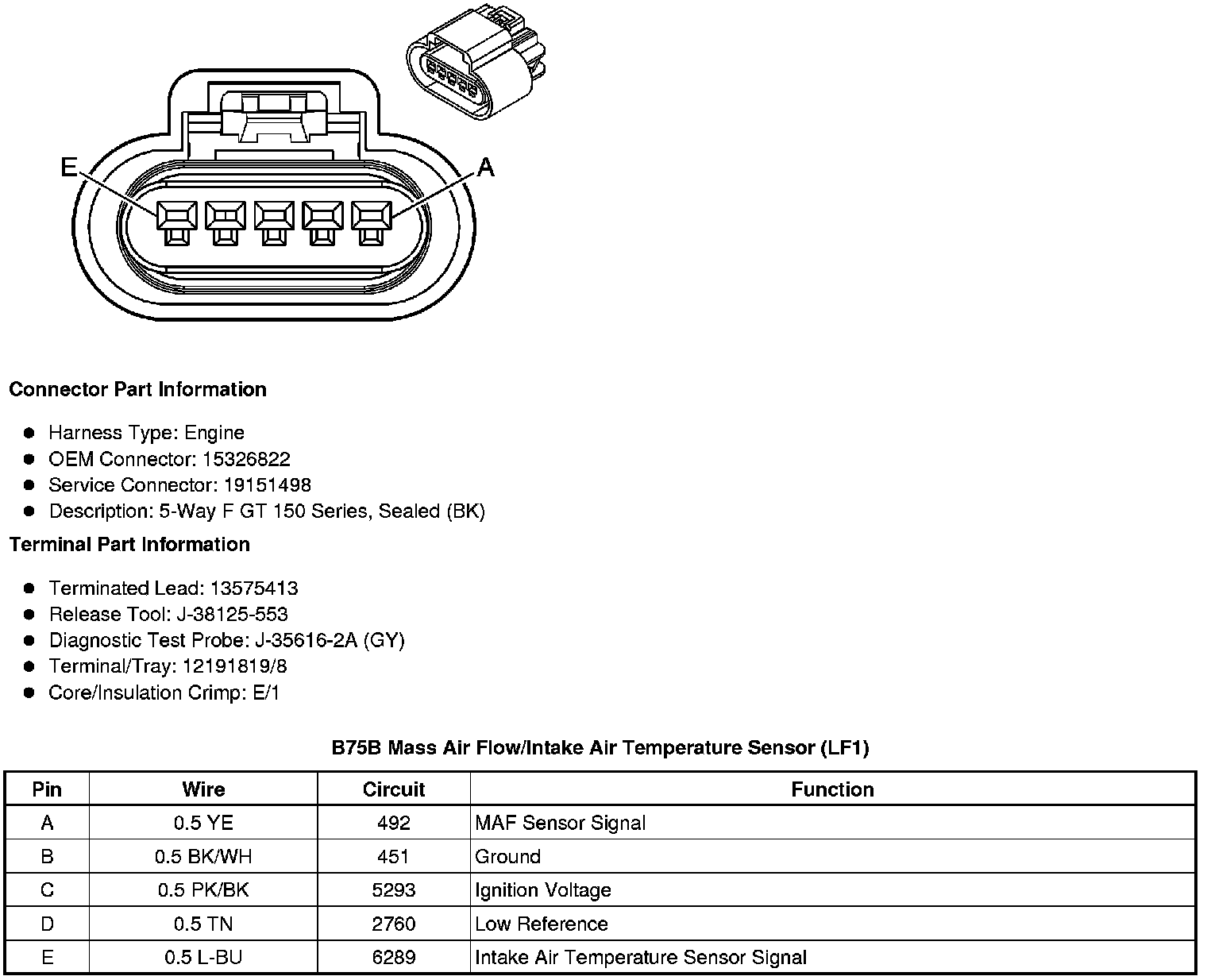

Component Connector End Views
B75B Mass Air Flow/Intake Air Temperature Sensor (LF1)
