Absolute Pressure Sensor: Diagrams

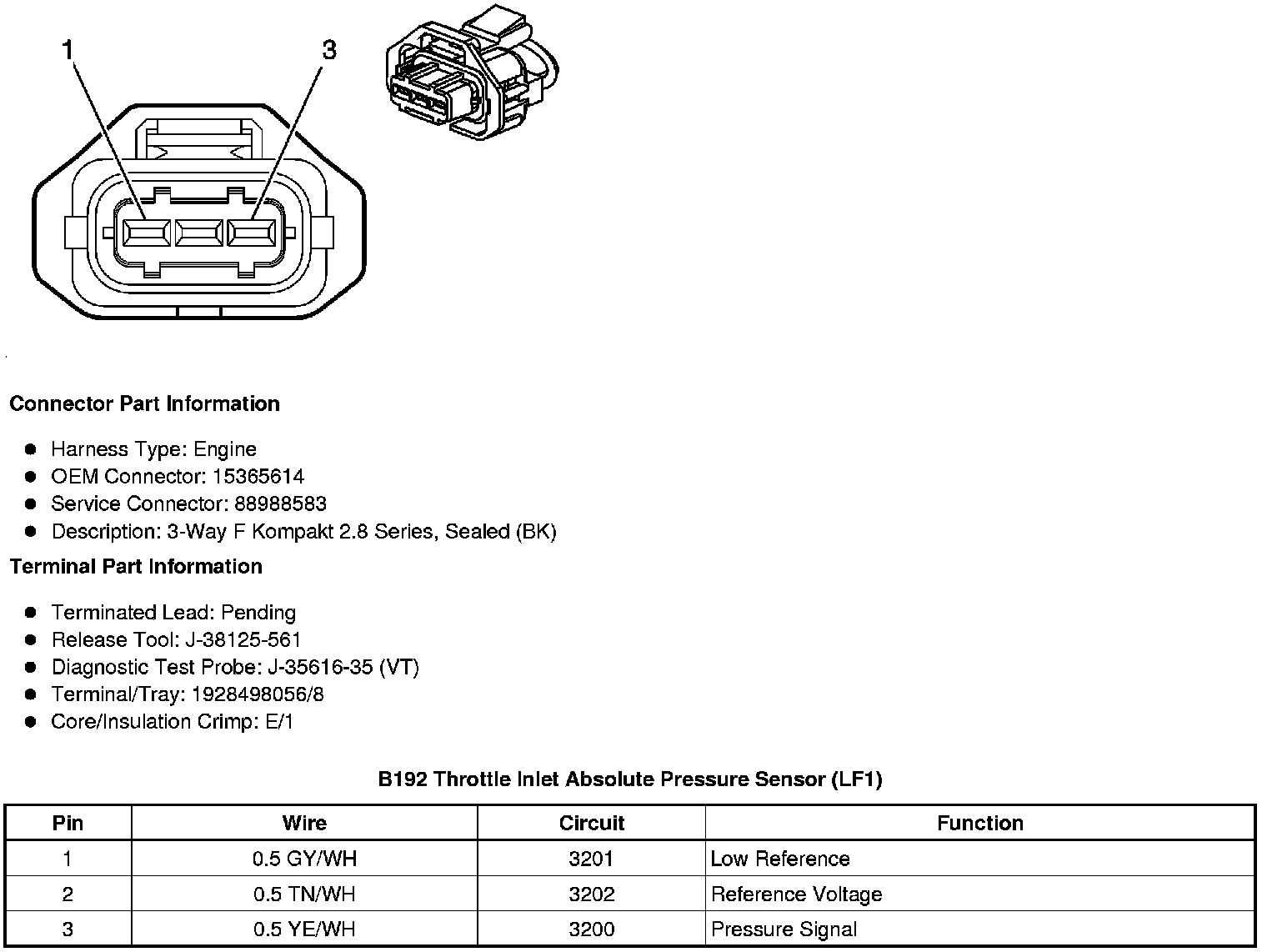

Component Connector End Views

B192 Throttle Inlet Absolute Pressure Sensor (LF1)
