Trailer Lighting Module
>>
Trailer Lighting Control Module X2 (U4G)
Trailer Lighting Control Module X2 (U4G)
Component Connector End Views

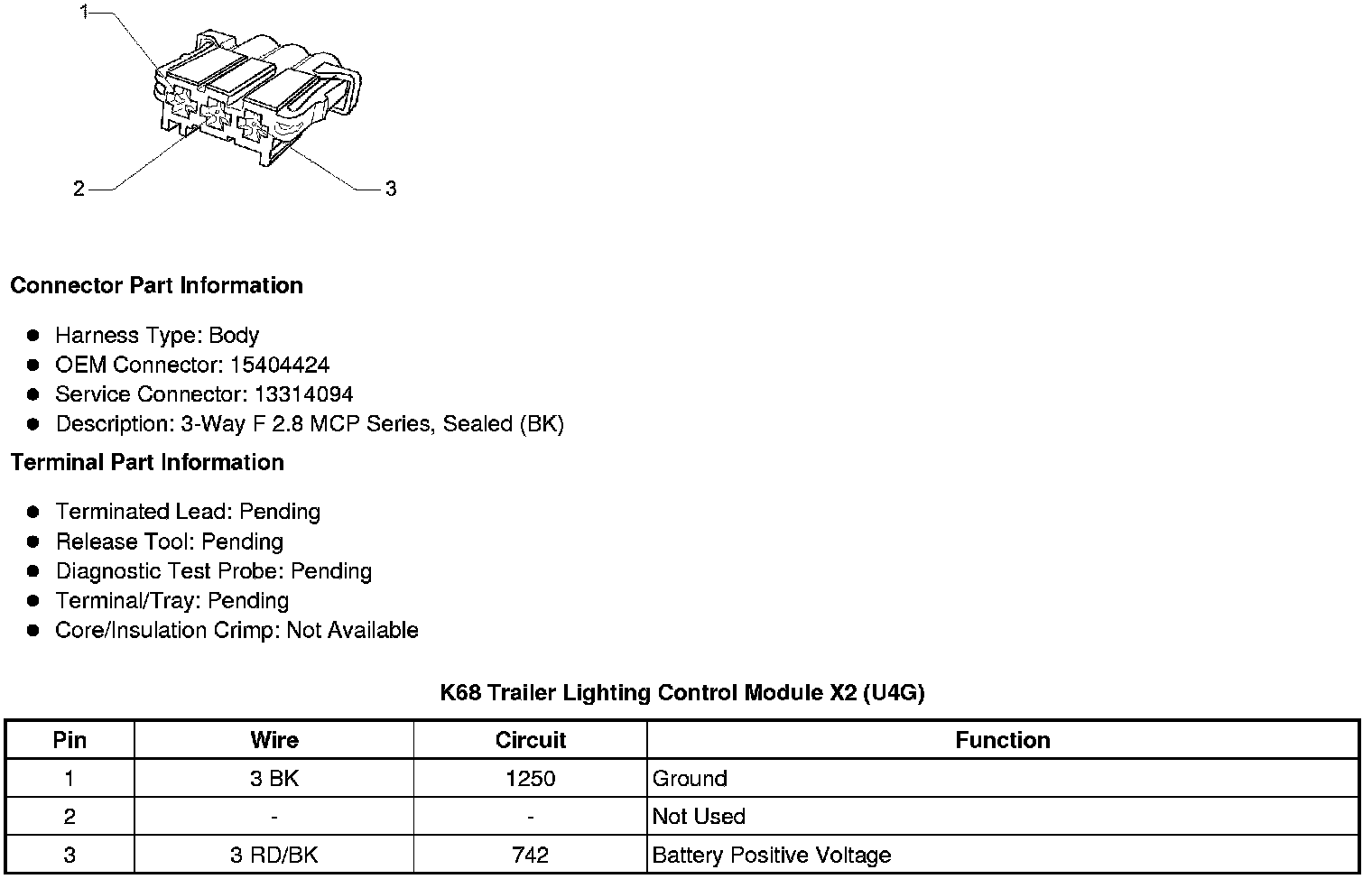

K68 Trailer Lighting Control Module X2 (U4G)
