Power Seat Control Module
>>
Seat Memory Control Module X2 (AAB)
Seat Memory Control Module X2 (AAB)
Component Connector End Views

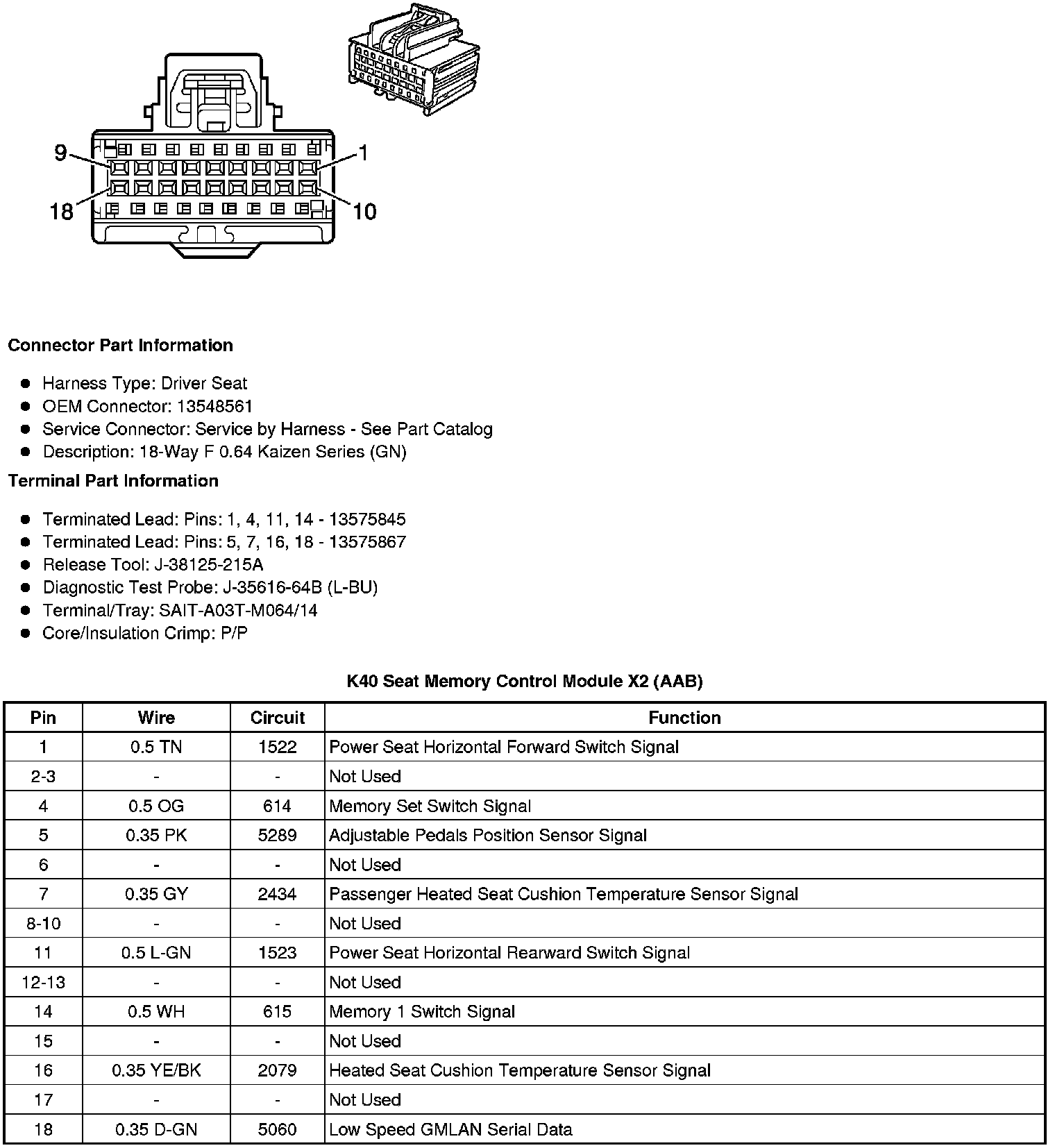

K40 Seat Memory Control Module X2 (AAB)
