Entertainment System Control Module
Component Connector End Views

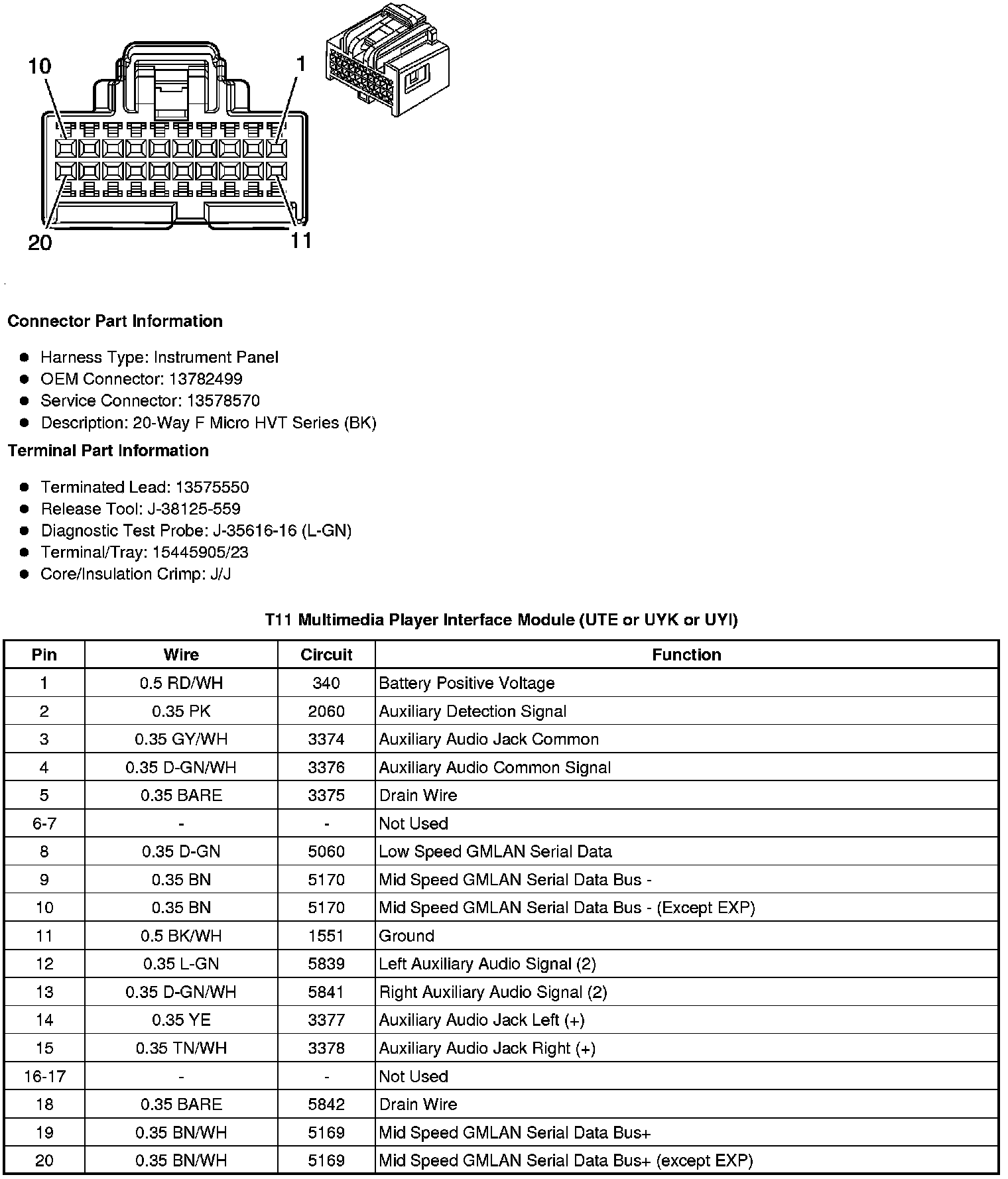

T11 Multimedia Player Interface Module (UTE, UYK or UYI)
