Communications Control Module
Communications Control Module
Component Connector End Views

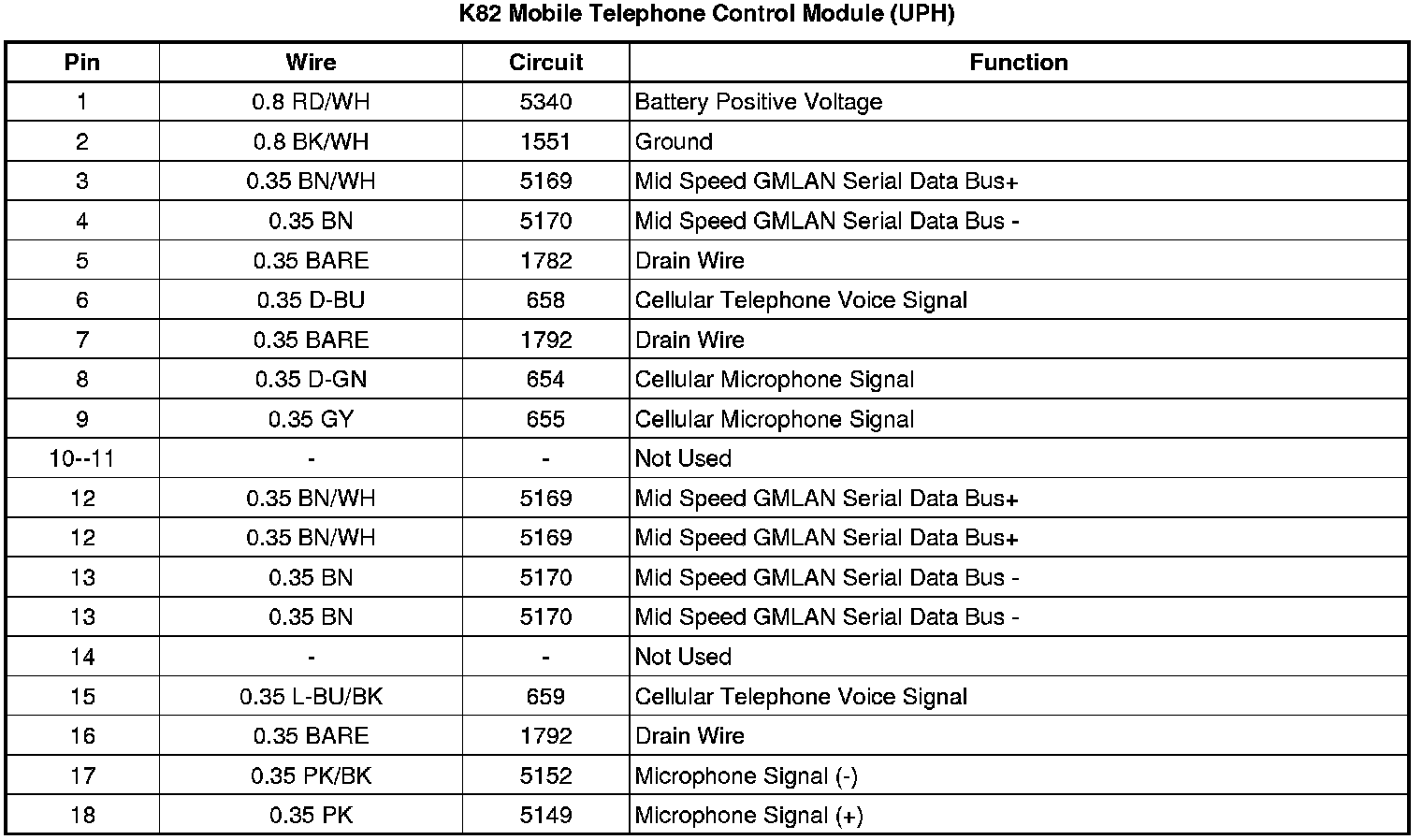

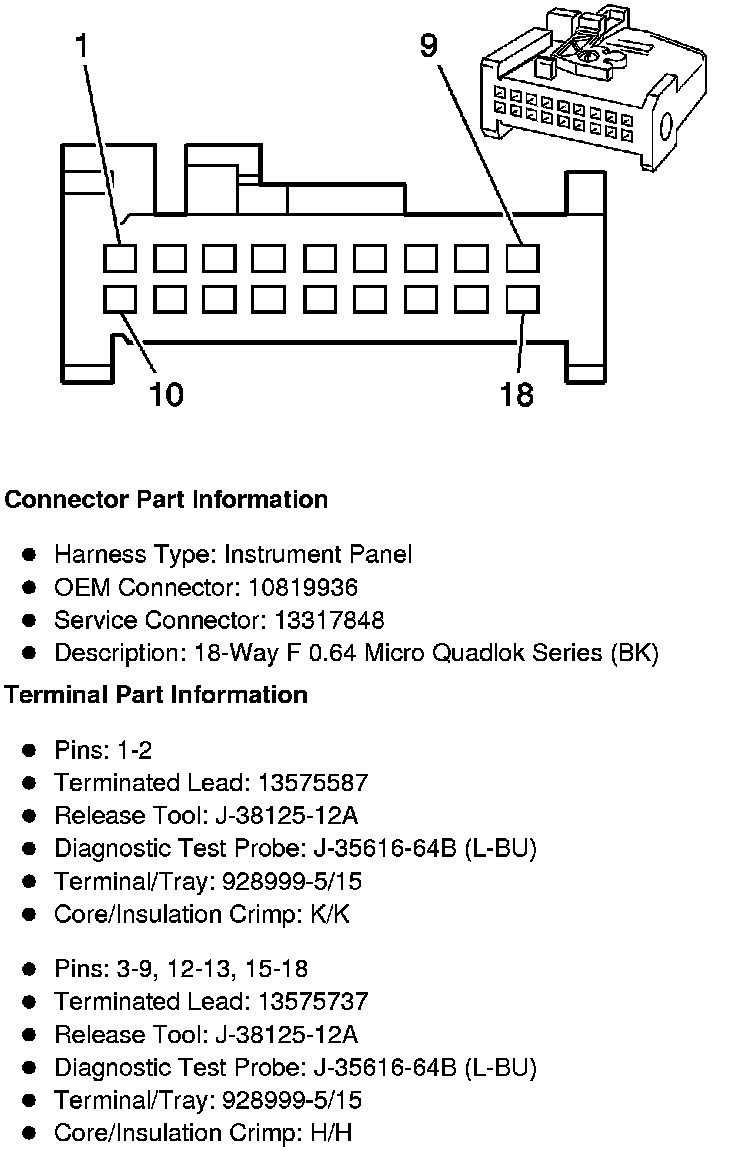

K82 Mobile Telephone Control Module (UPH)
