Engine Control Module (ECM) X3 (LSA)
Engine Control Module (ECM) X3 (LSA)
Component Connector End Views

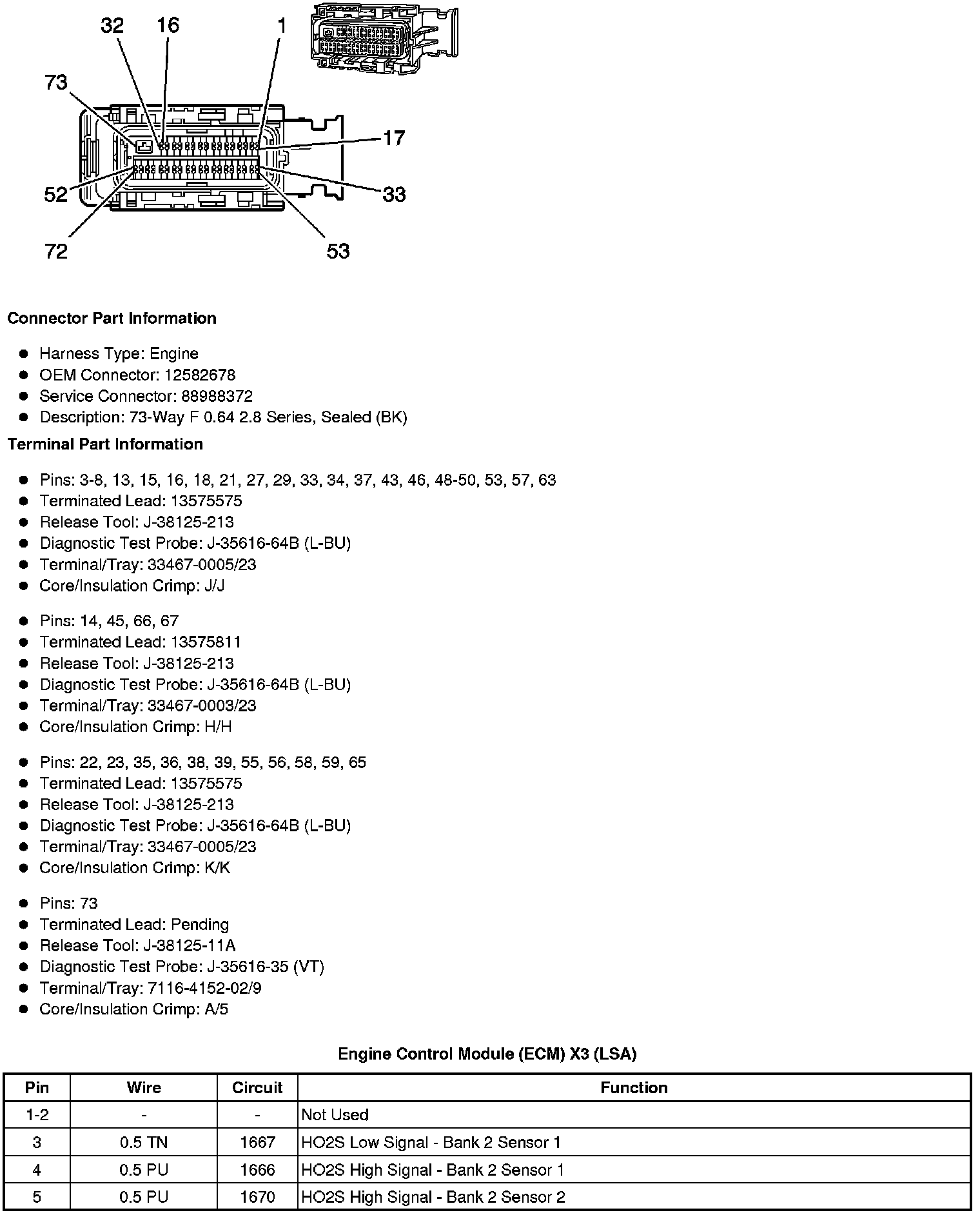

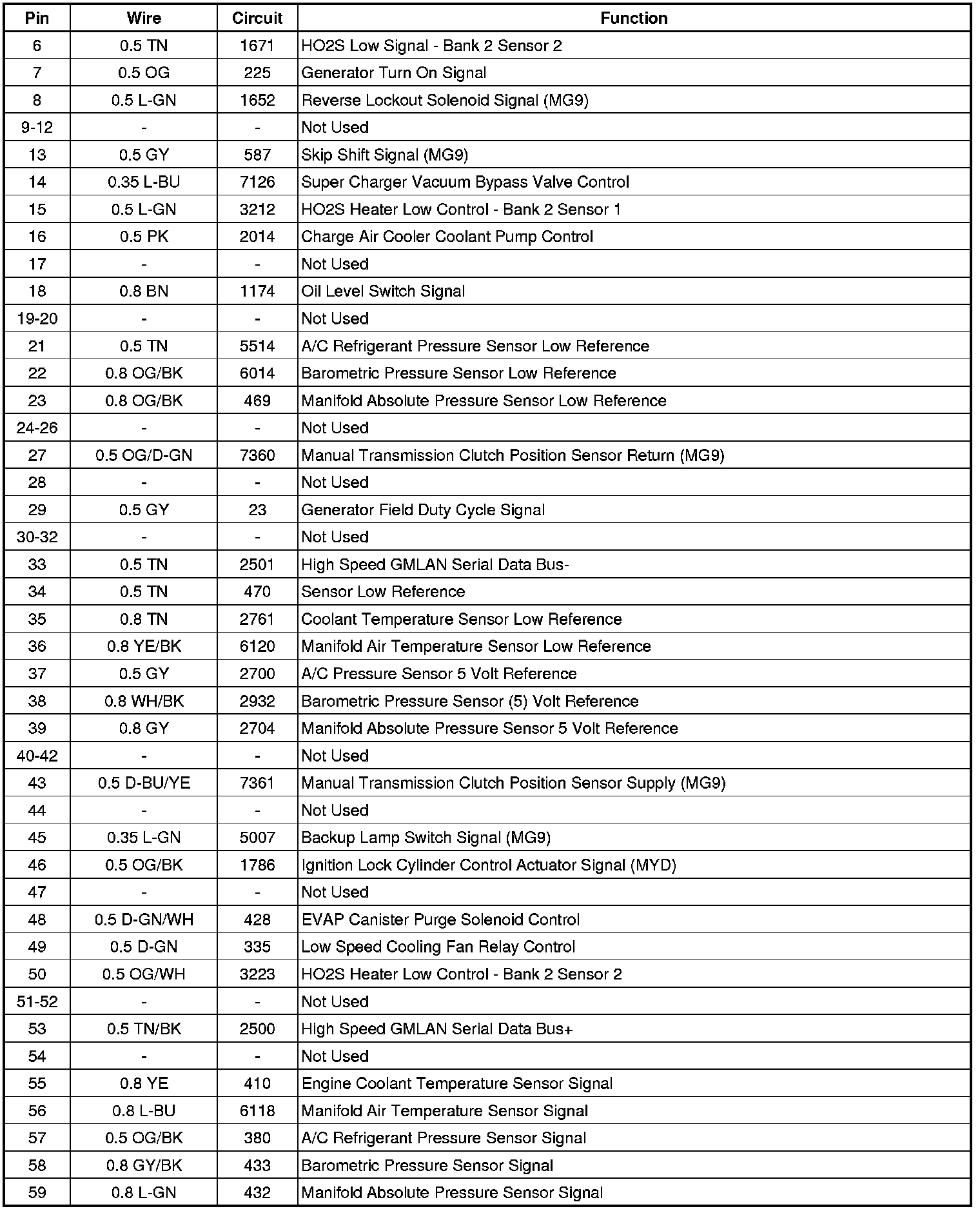

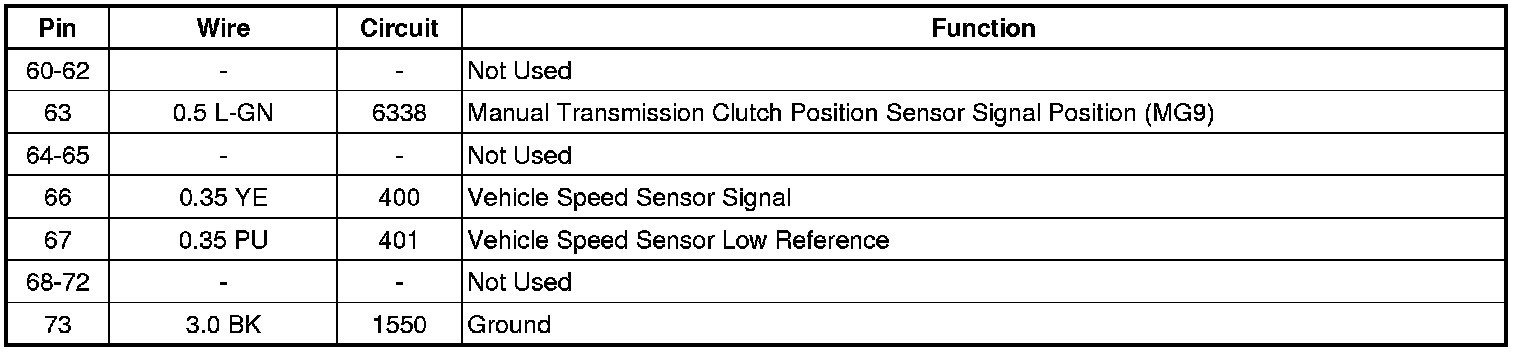

Engine Control Module (ECM) X3 (LSA)
