Control Module, Pedestrian Protection System
>>
Pedestrian Impact Detection Module X1 (B3T)
Pedestrian Impact Detection Module X1 (B3T)

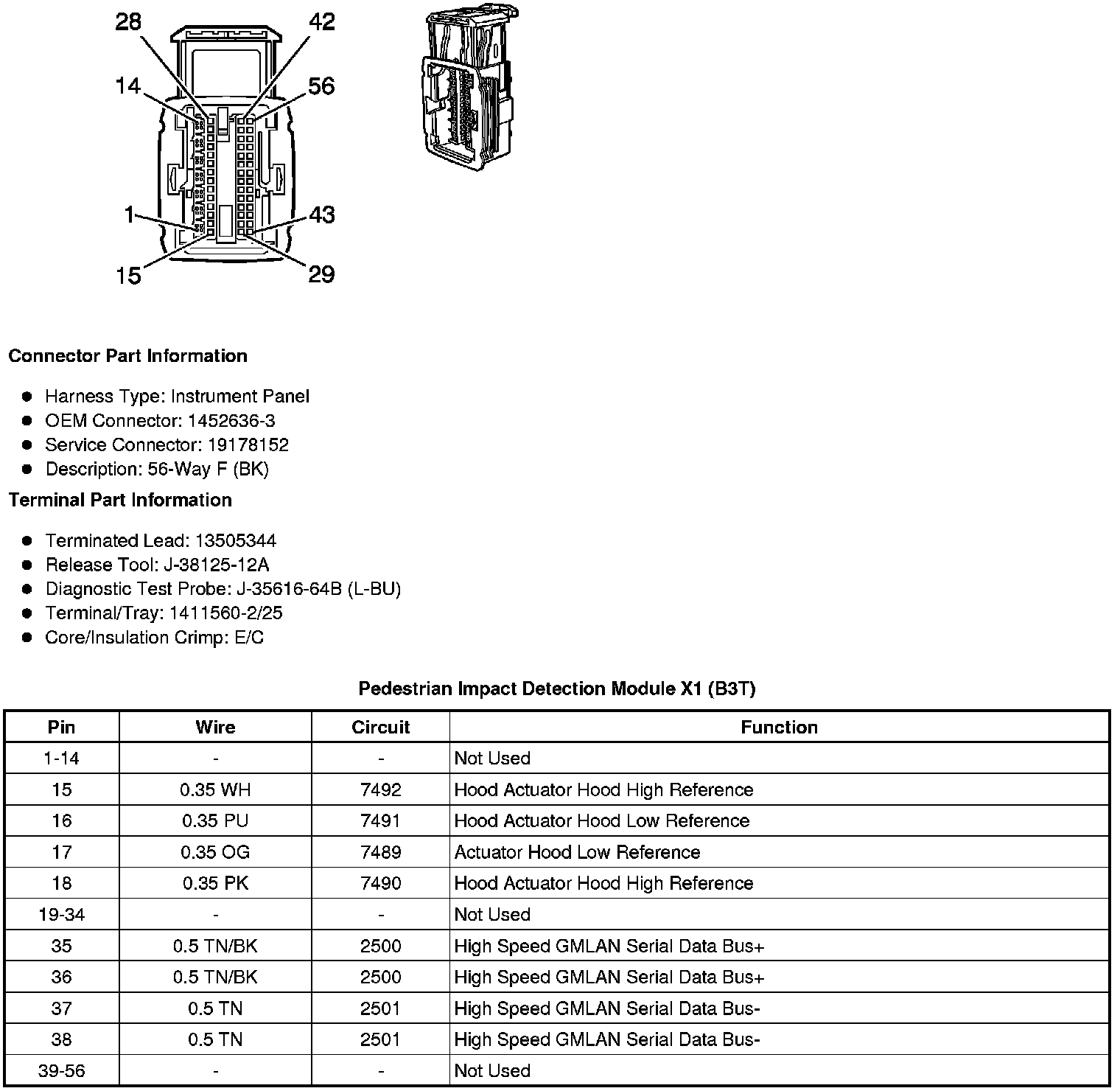

Component Connector End Views
Pedestrian Impact Detection Module X1 (B3T)
