Engine Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

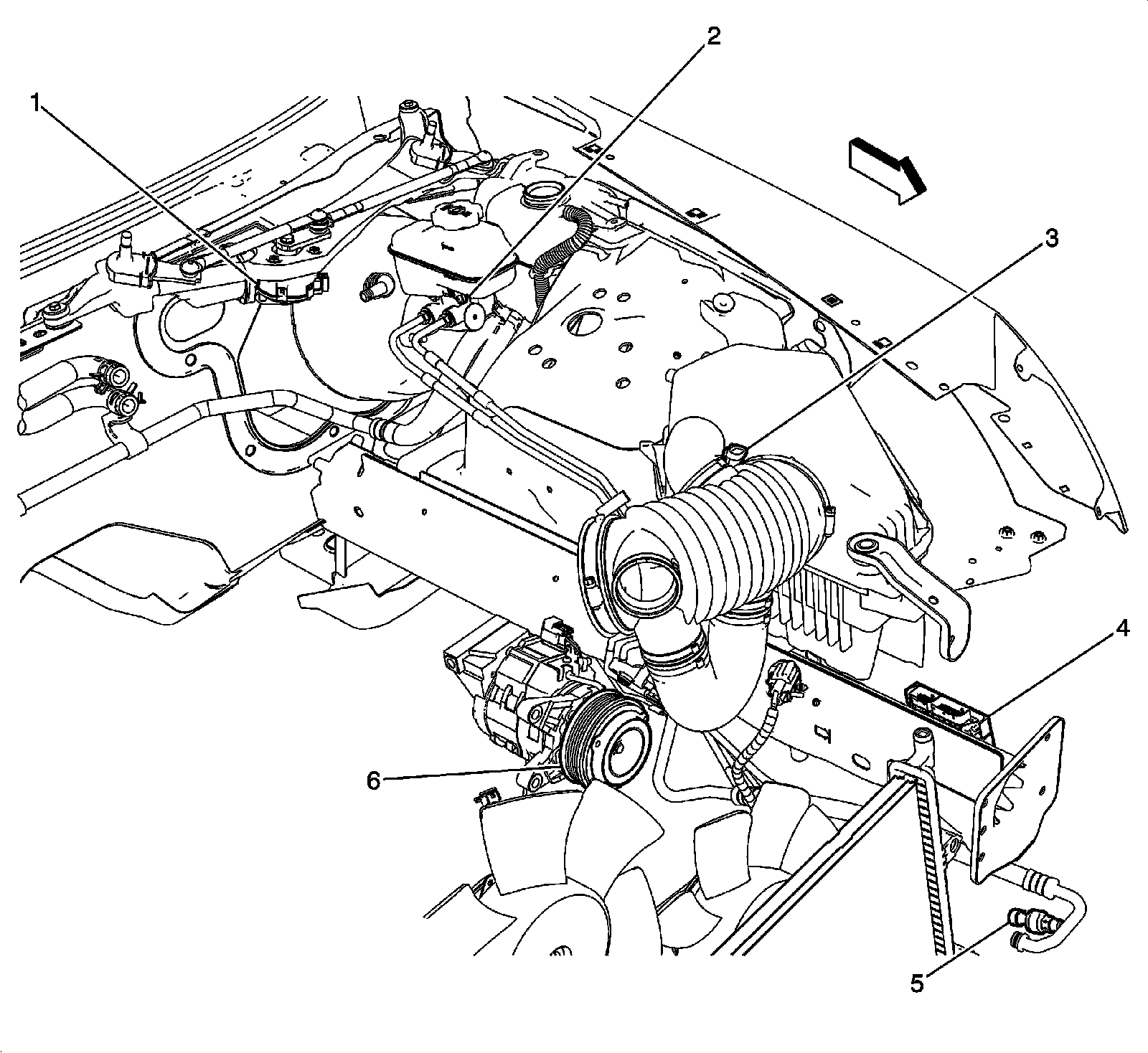

Engine Compartment Components - Left Side




1 - Windshield Wiper Motor (Left Hand Drive)
2 - Brake Fluid Level Switch
3 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LSA) or Multifunction Intake Air Sensor (LFW or LFX)
4 - Engine Control Module (ECM) (LFW or LFX)
5 - A/C Refrigerant Pressure Sensor
6 - A/C Compressor Clutch (LFW or LFX)
