Rear Object Sensor Control Module X1 (UD7)
Rear Object Sensor Control Module X1 (UD7)
Component Connector End Views

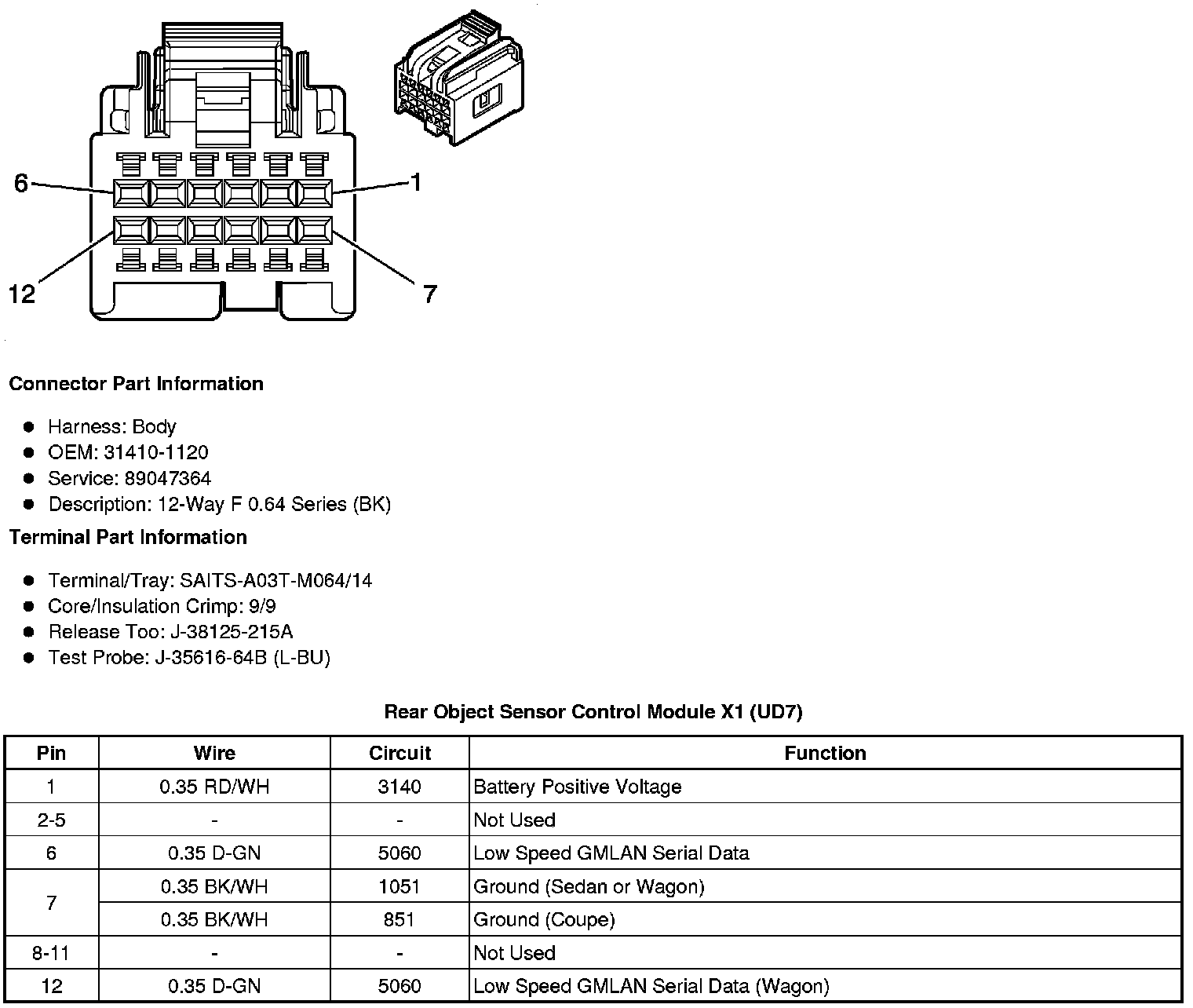

Rear Object Sensor Control Module X1 (UD7)
