Suspension Control Module
Suspension Control Module

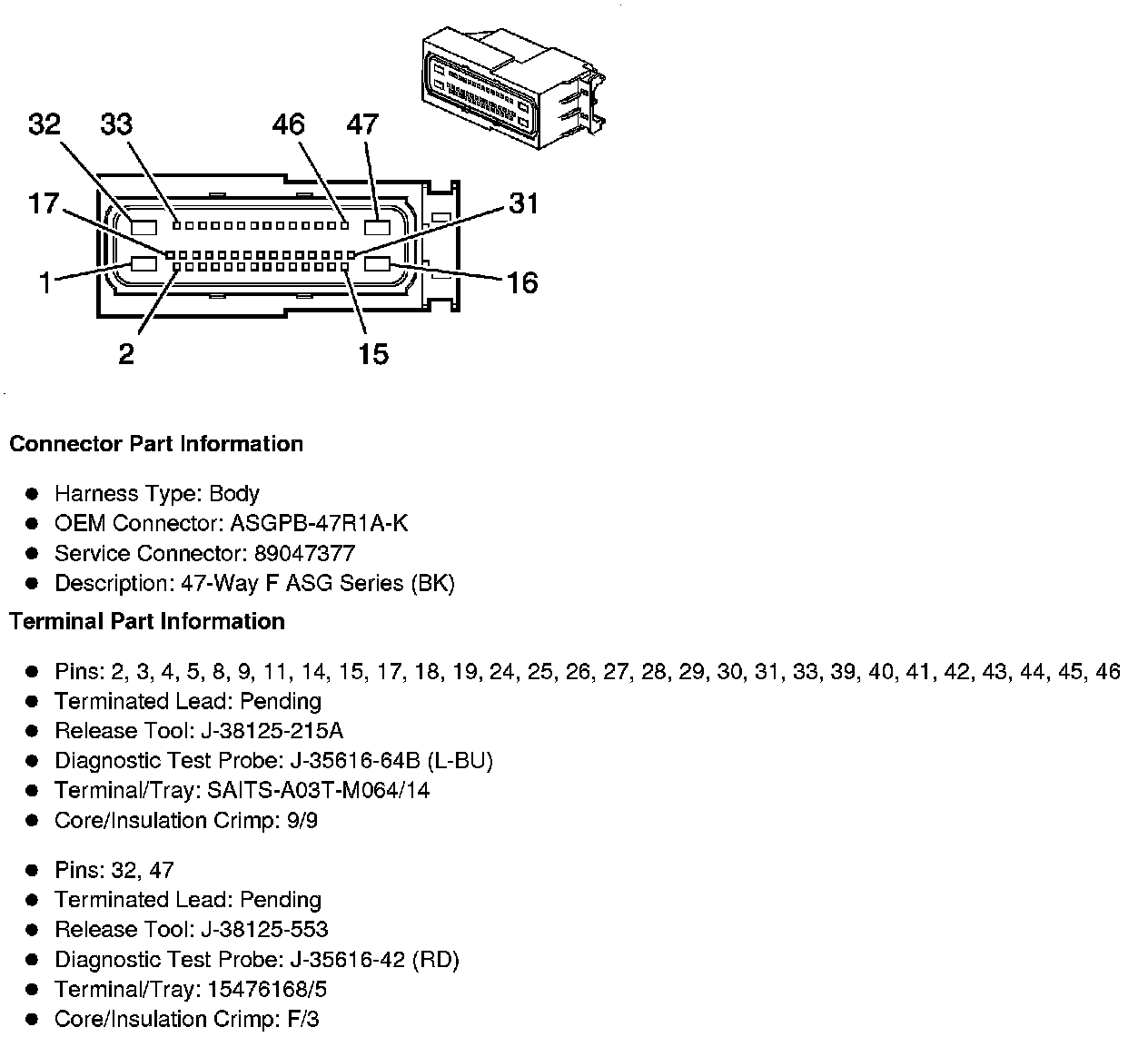

Component Connector End Views
Electronic Suspension Control (ESC) Module (F55)
