Rear Object Sensor Control Module

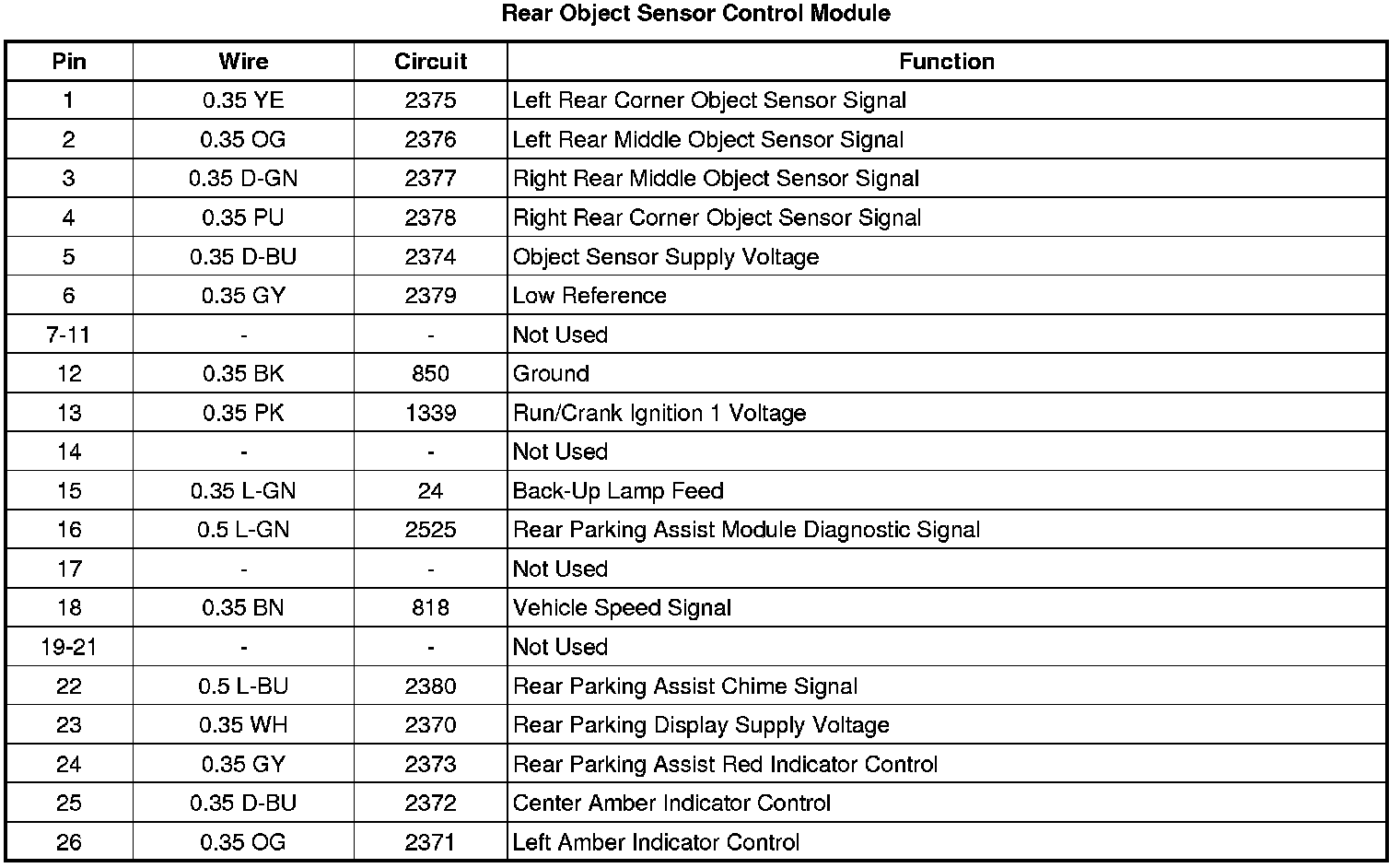

Rear Object Sensor Control Module

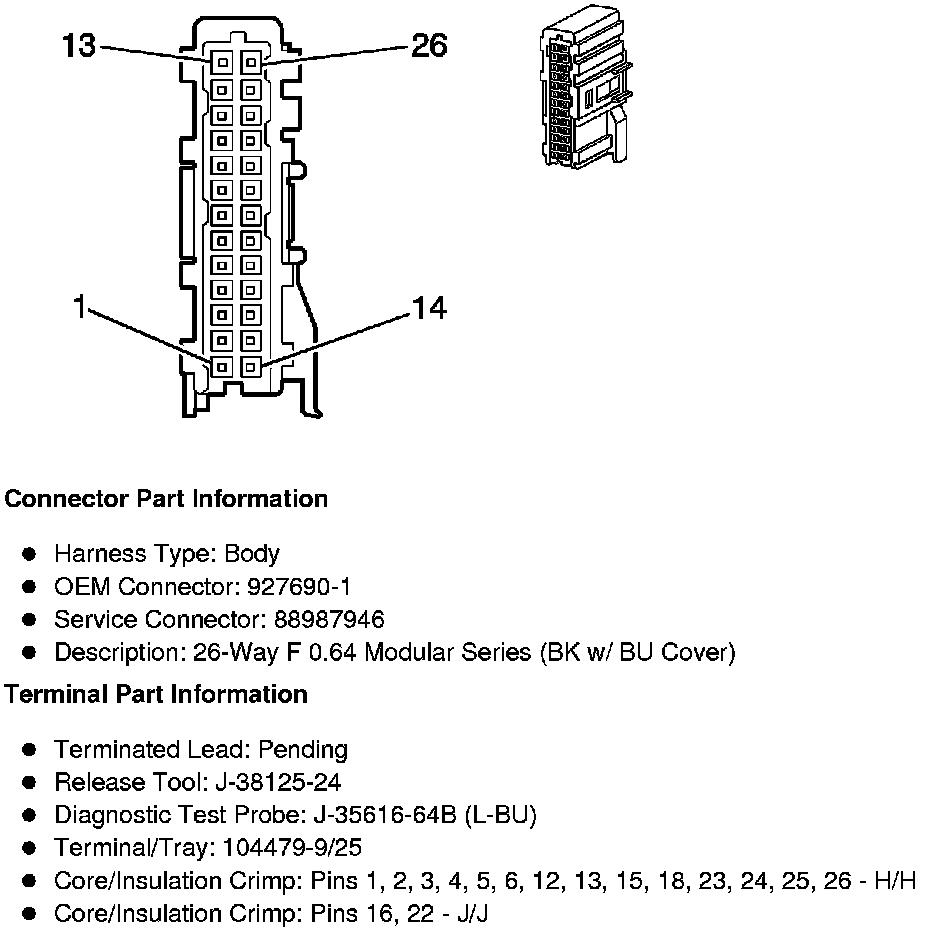

Component Connector End Views
Rear Object Sensor Control Module
