Memory Positioning Module: Diagrams




Component Connector End Views

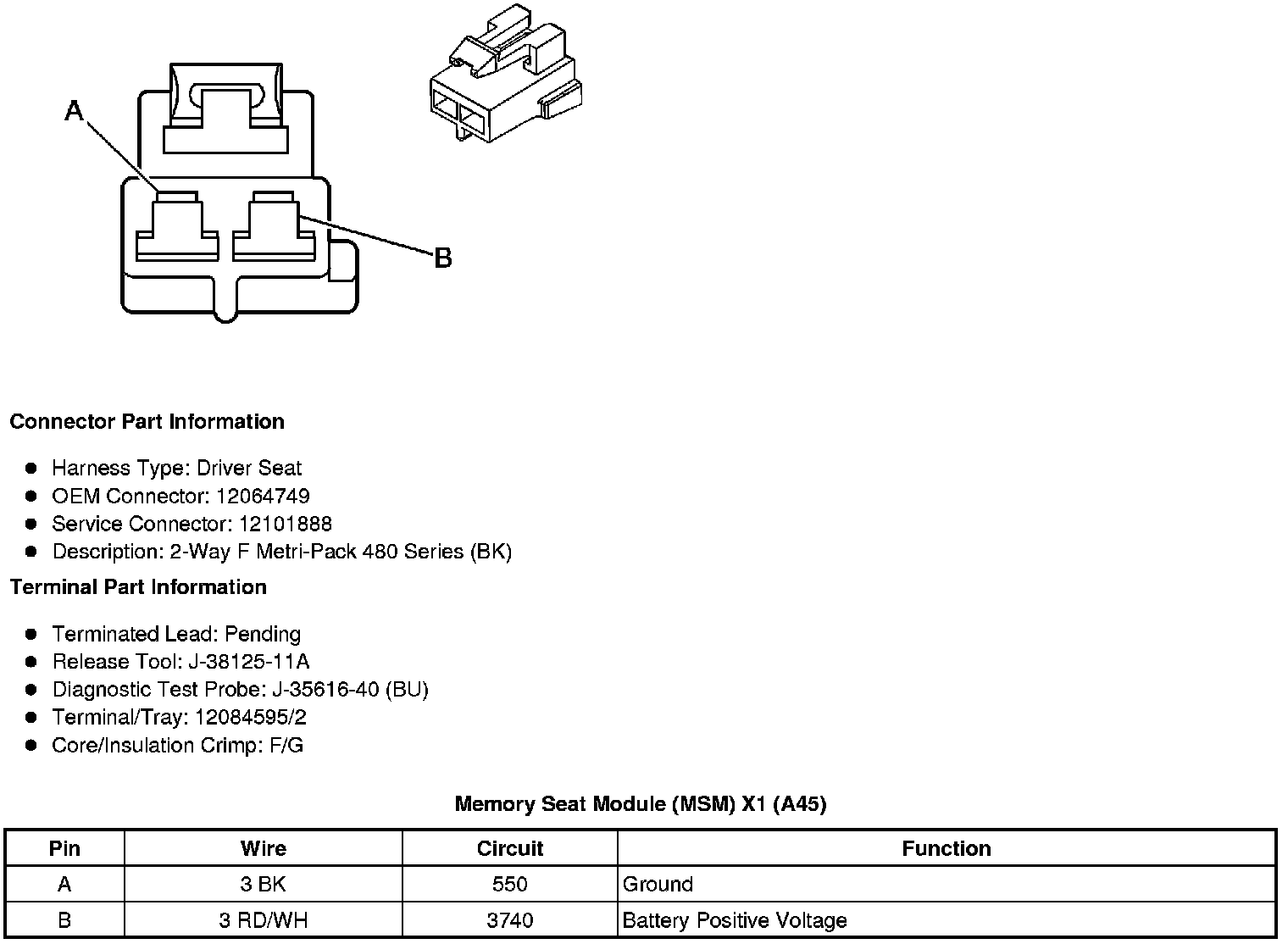

Memory Seat Module (MSM) X1 (A45)

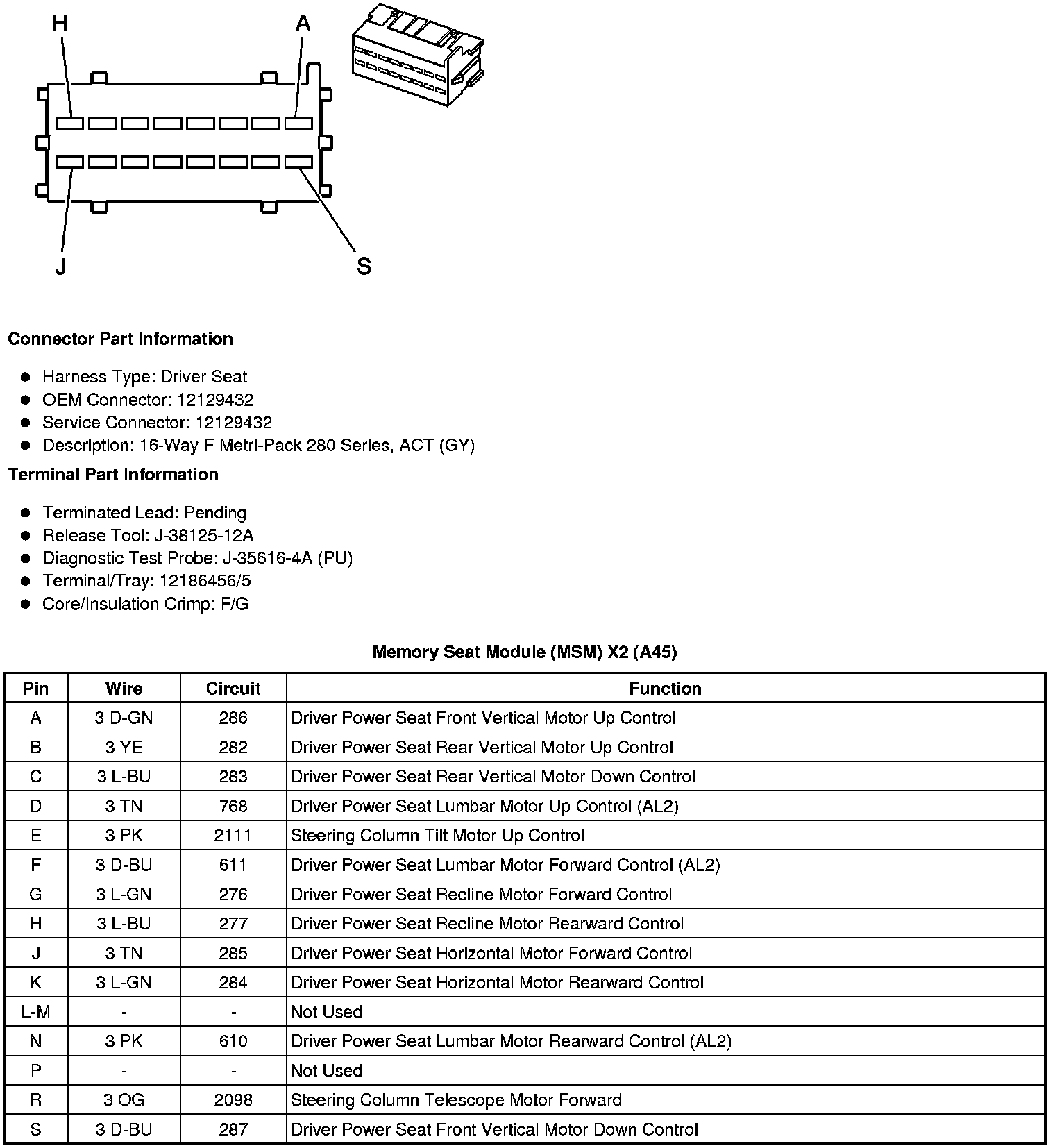

Memory Seat Module (MSM) X2 (A45)

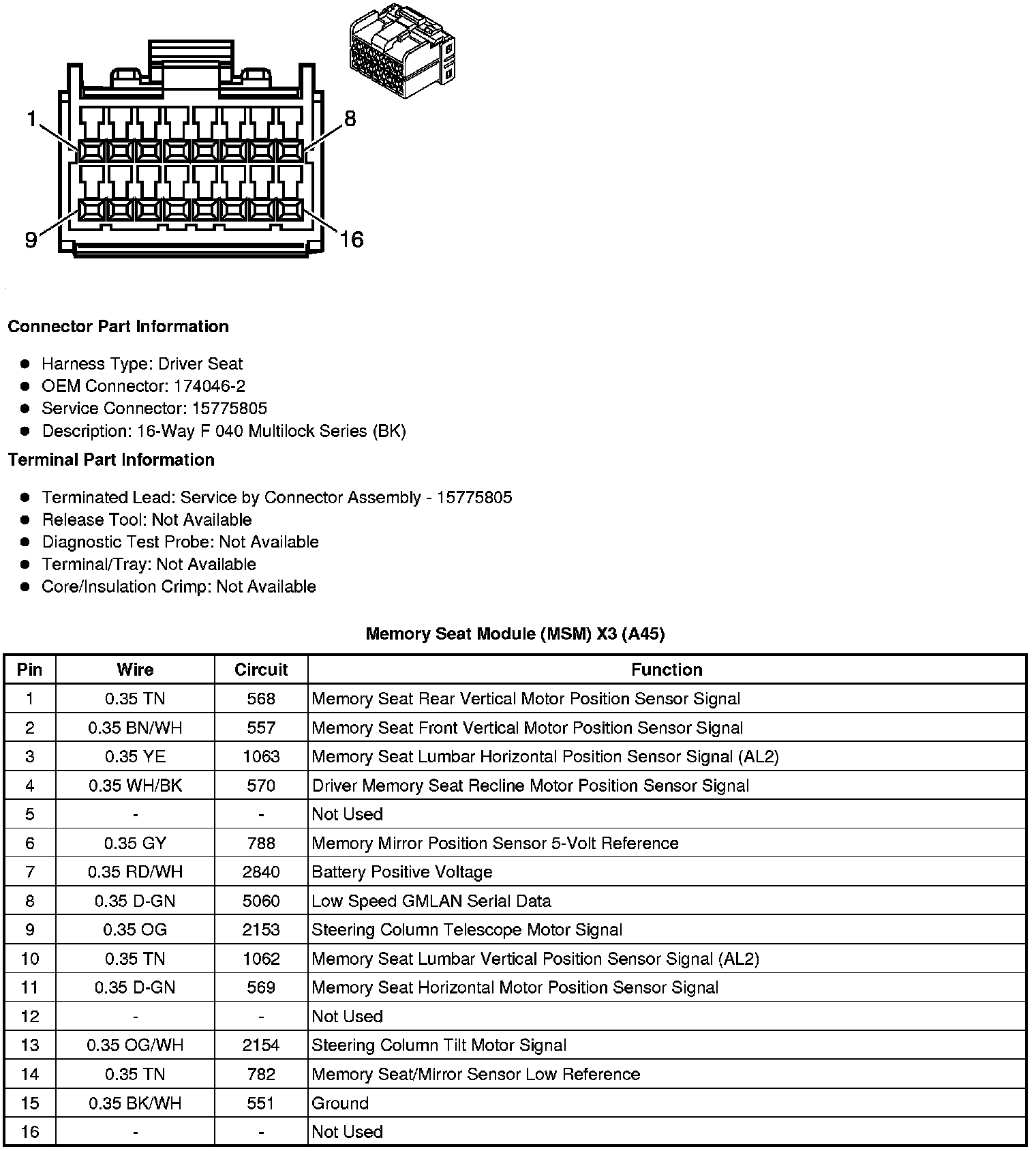

Memory Seat Module (MSM) X3 (A45)

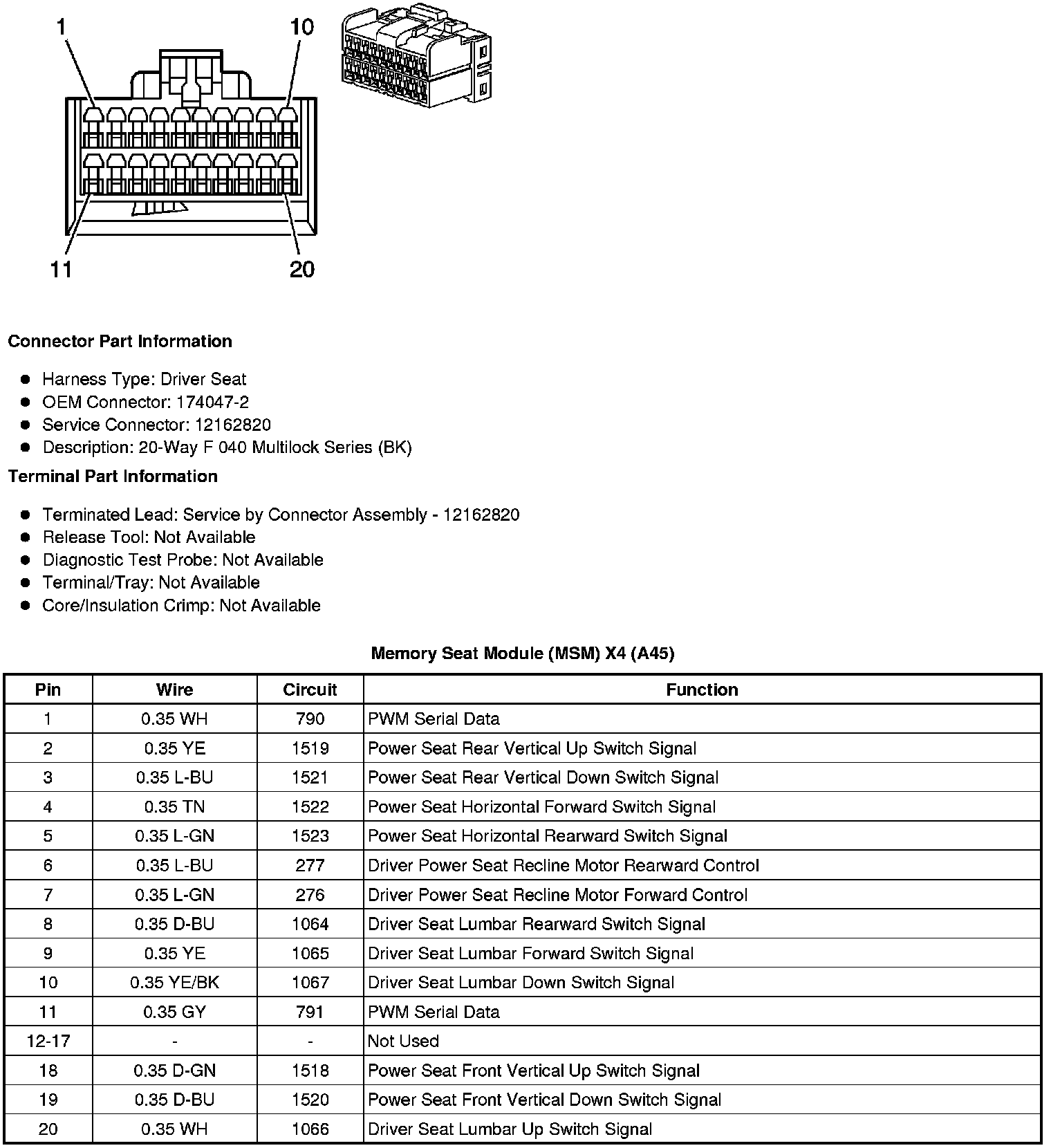

Memory Seat Module (MSM) X4 (A45)
