Cadillac
>>
2011
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Telescoping Wheel Position Sensor
Telescoping Wheel Position Sensor

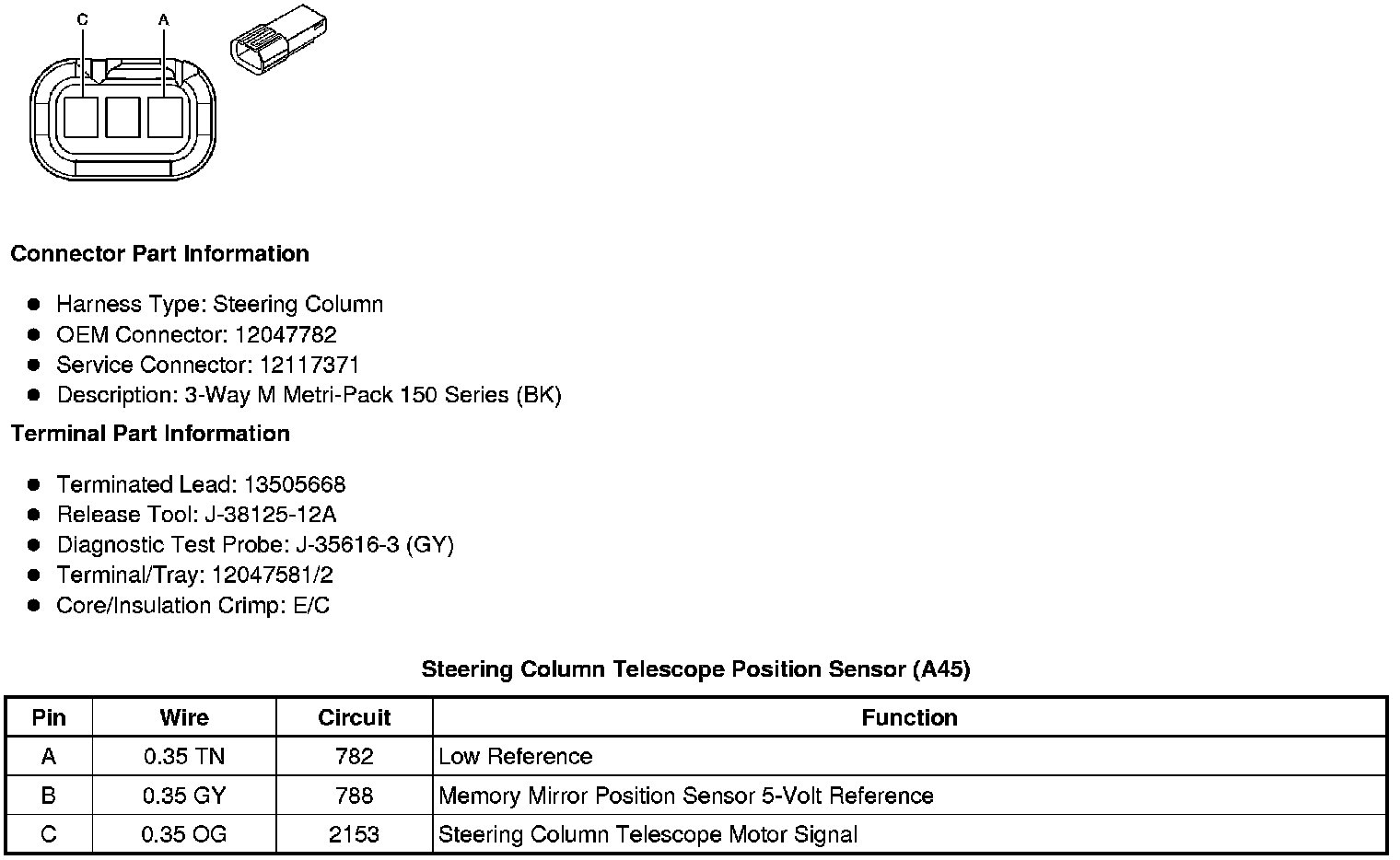

Component Connector End Views
Steering Column Telescope Position Sensor (A45)
