Home >> Cadillac >> 2011 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch




Component Connector End Views

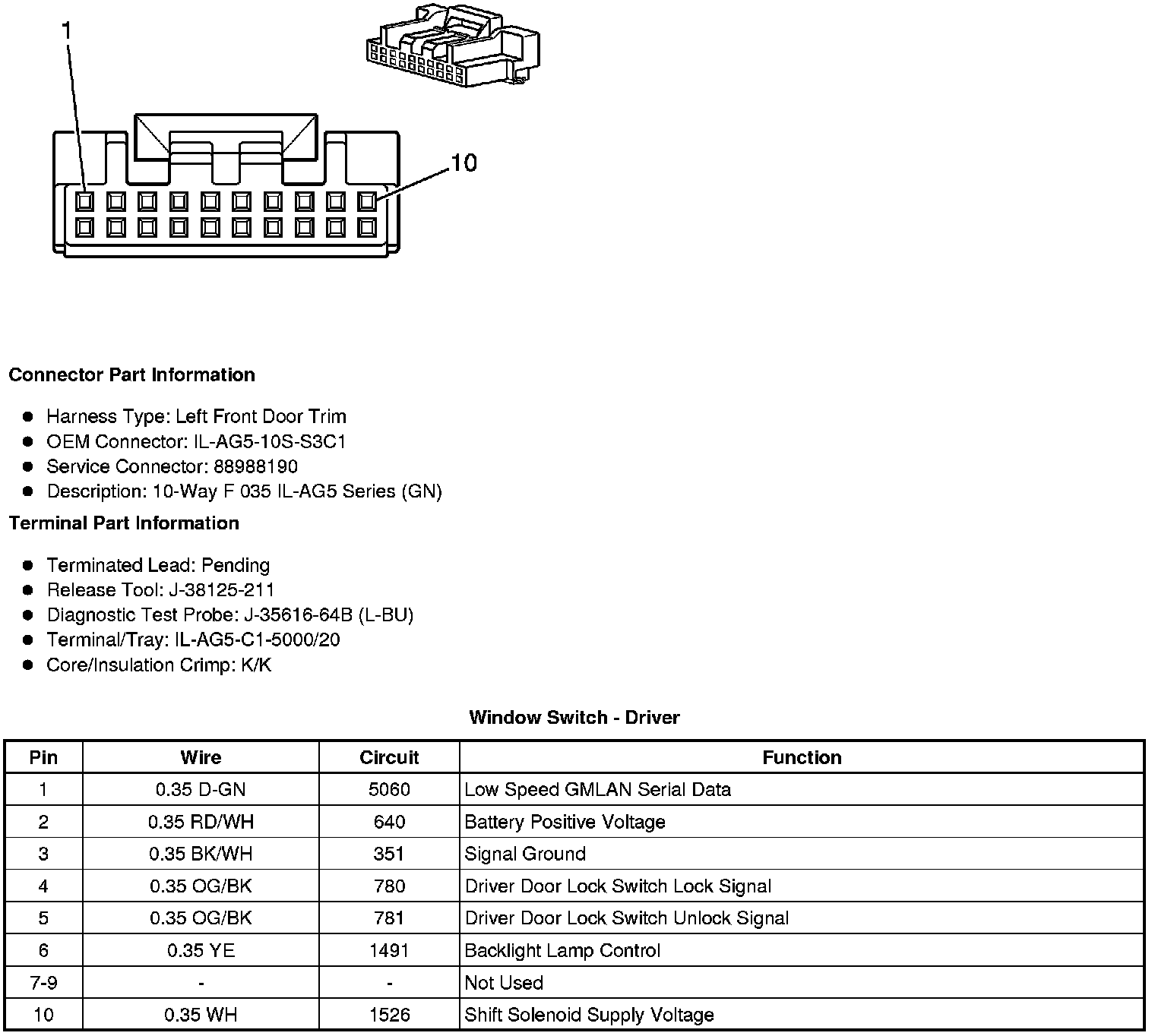

Window Switch - Driver





Window Switch - Left Rear

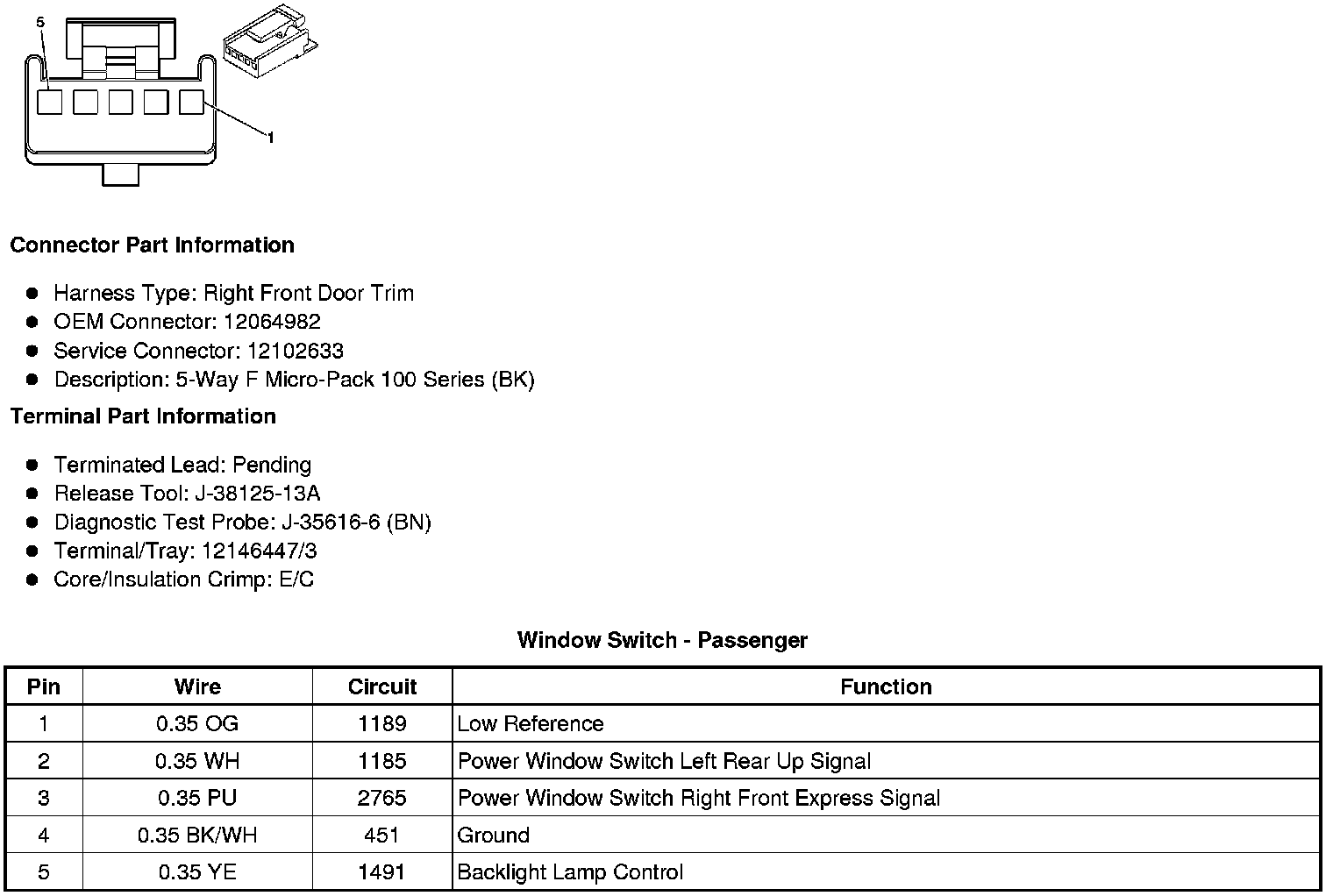

Window Switch - Passenger

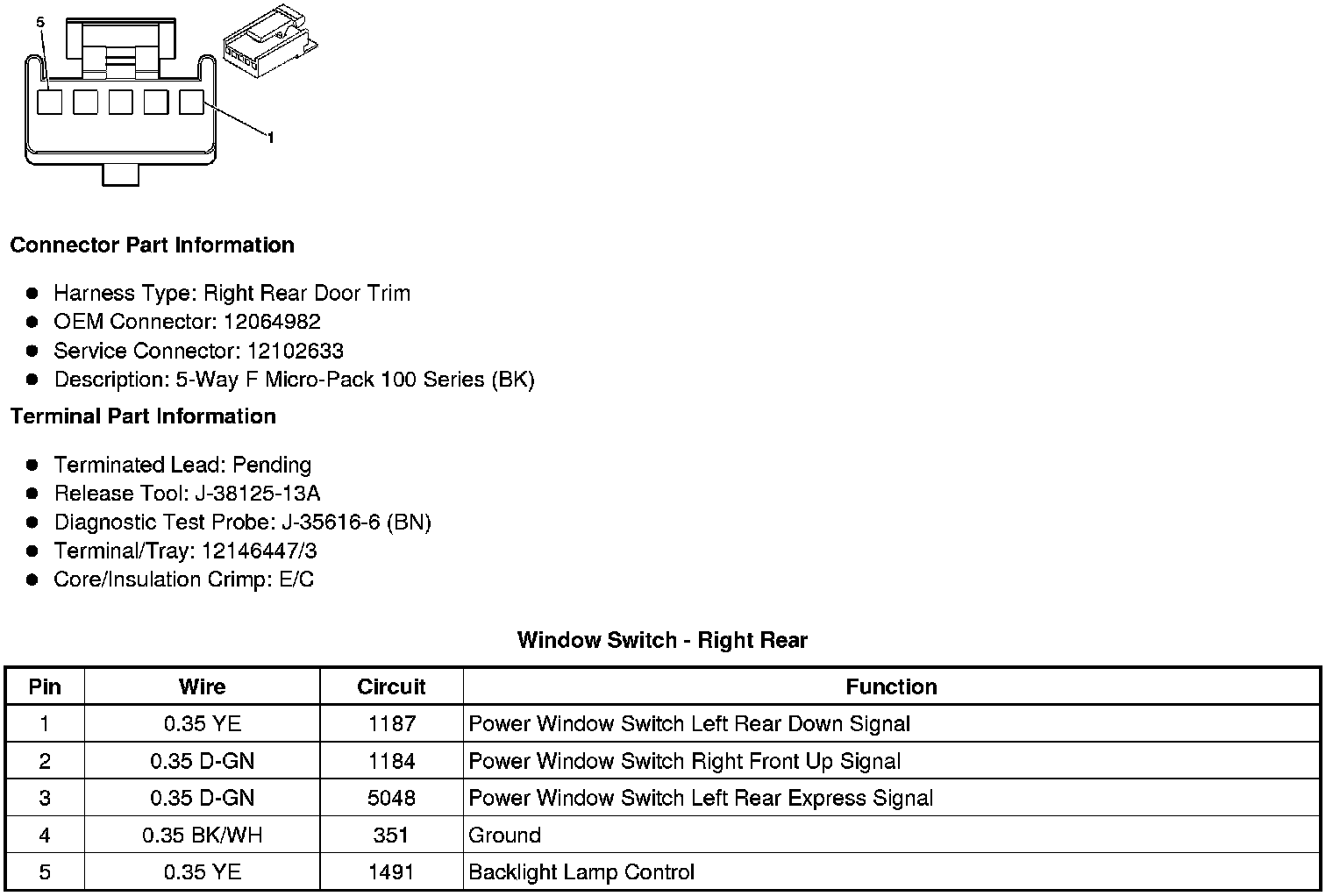

Window Switch - Right Rear
