Home >> Cadillac >> 2011 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System

Navigation System




Component Connector End Views

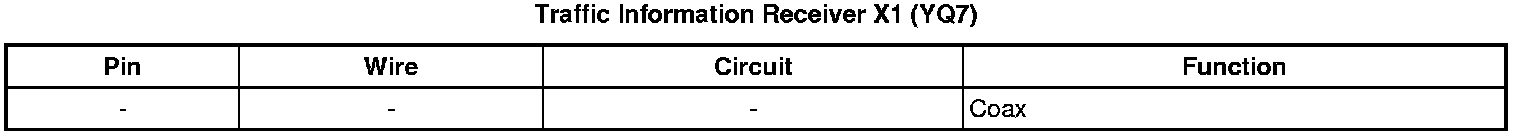

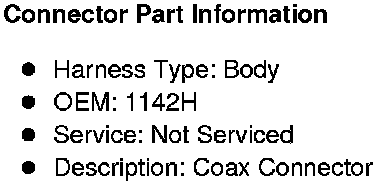

Traffic Information Receiver X1 (YQ7)

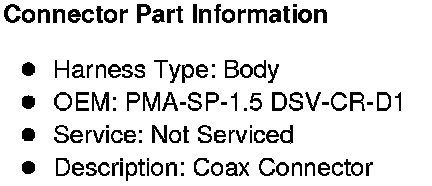

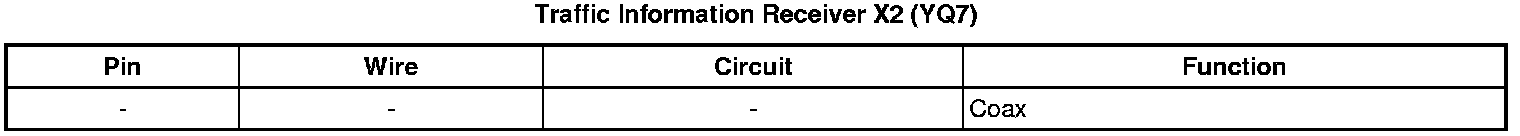

Traffic Information Receiver X2 (YQ7)

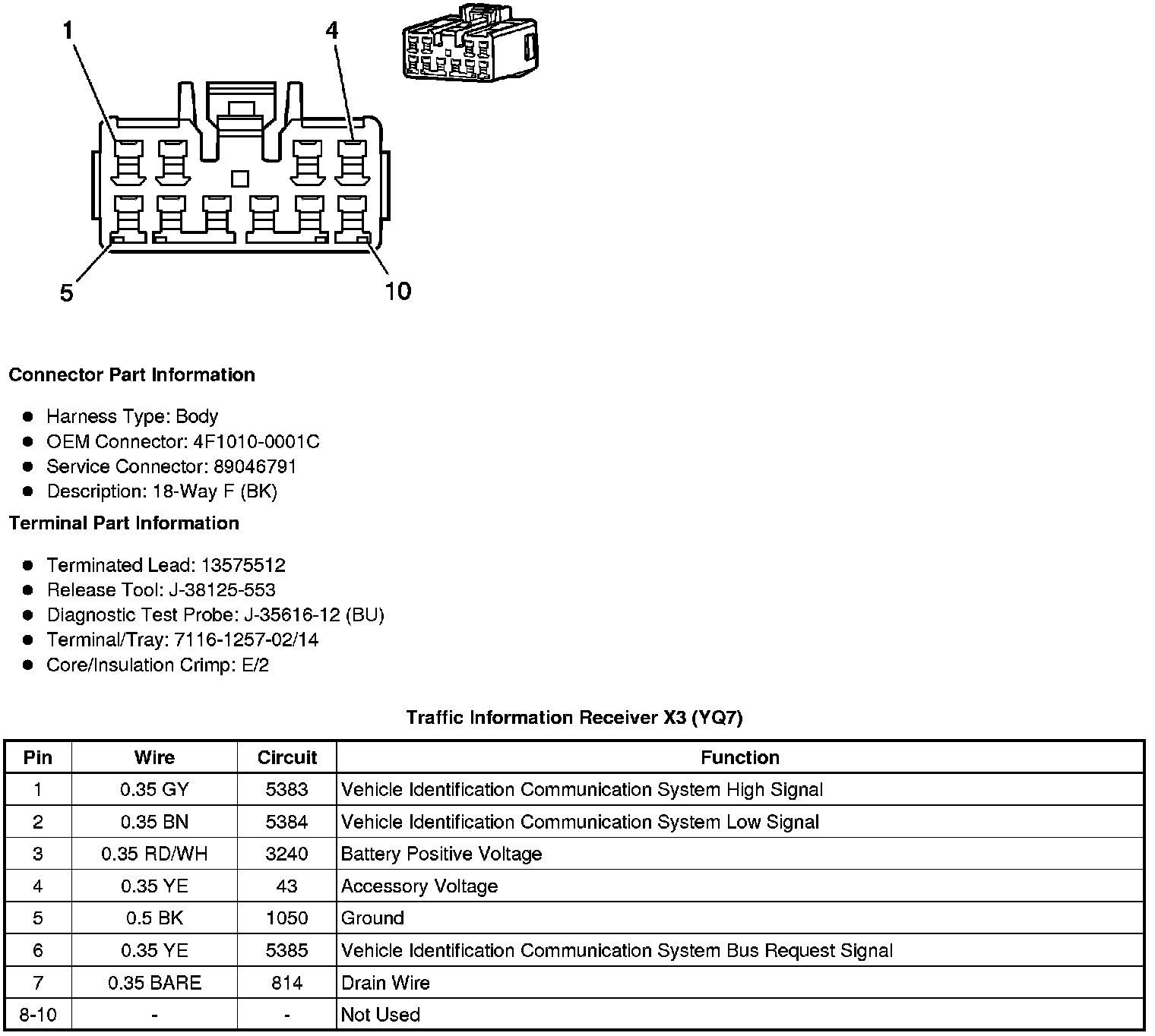

Traffic Information Receiver X3 (YQ7)
