Home >> Cadillac >> 2011 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch




Component Connector End Views

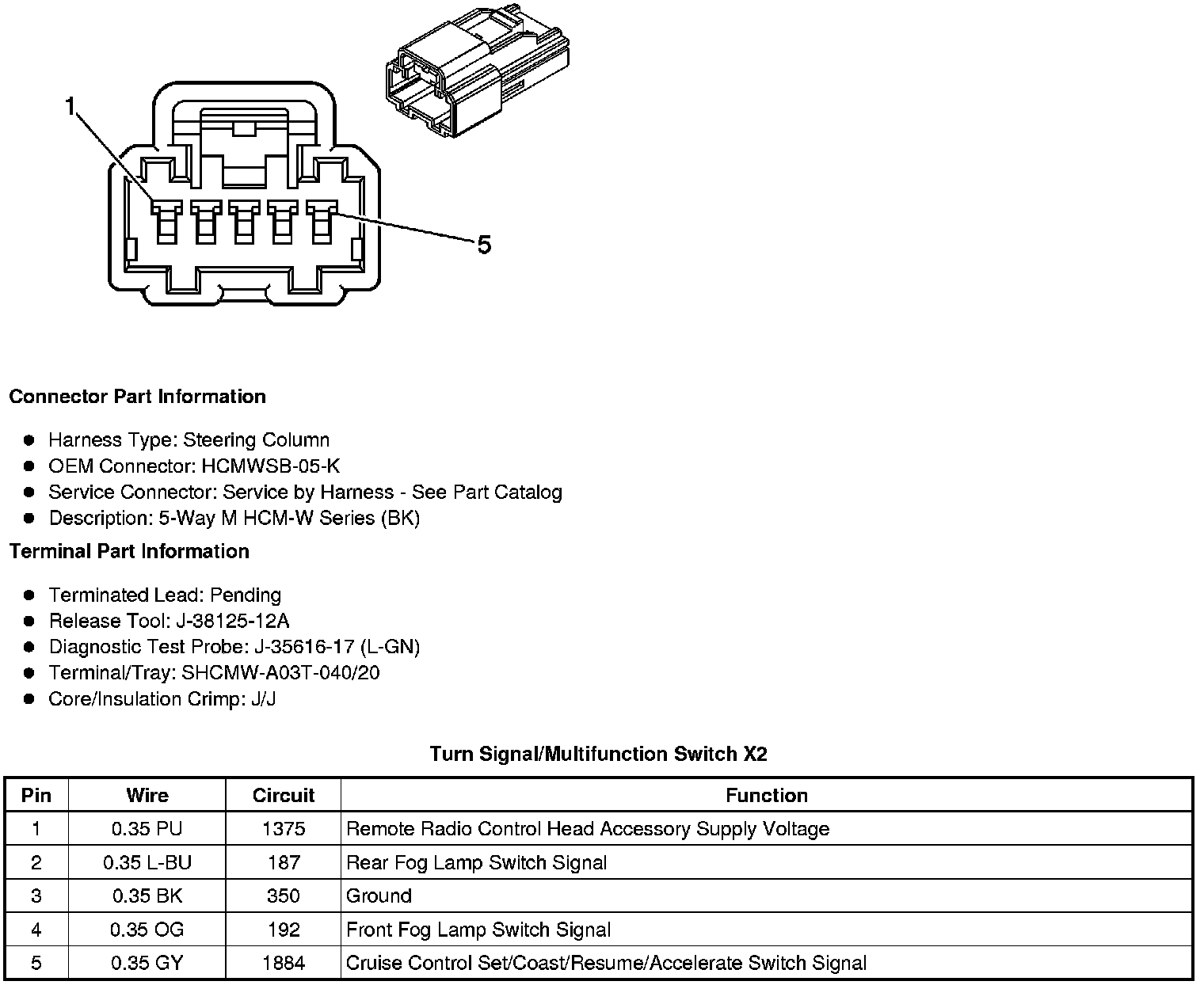

Turn Signal/Multifunction Switch X2

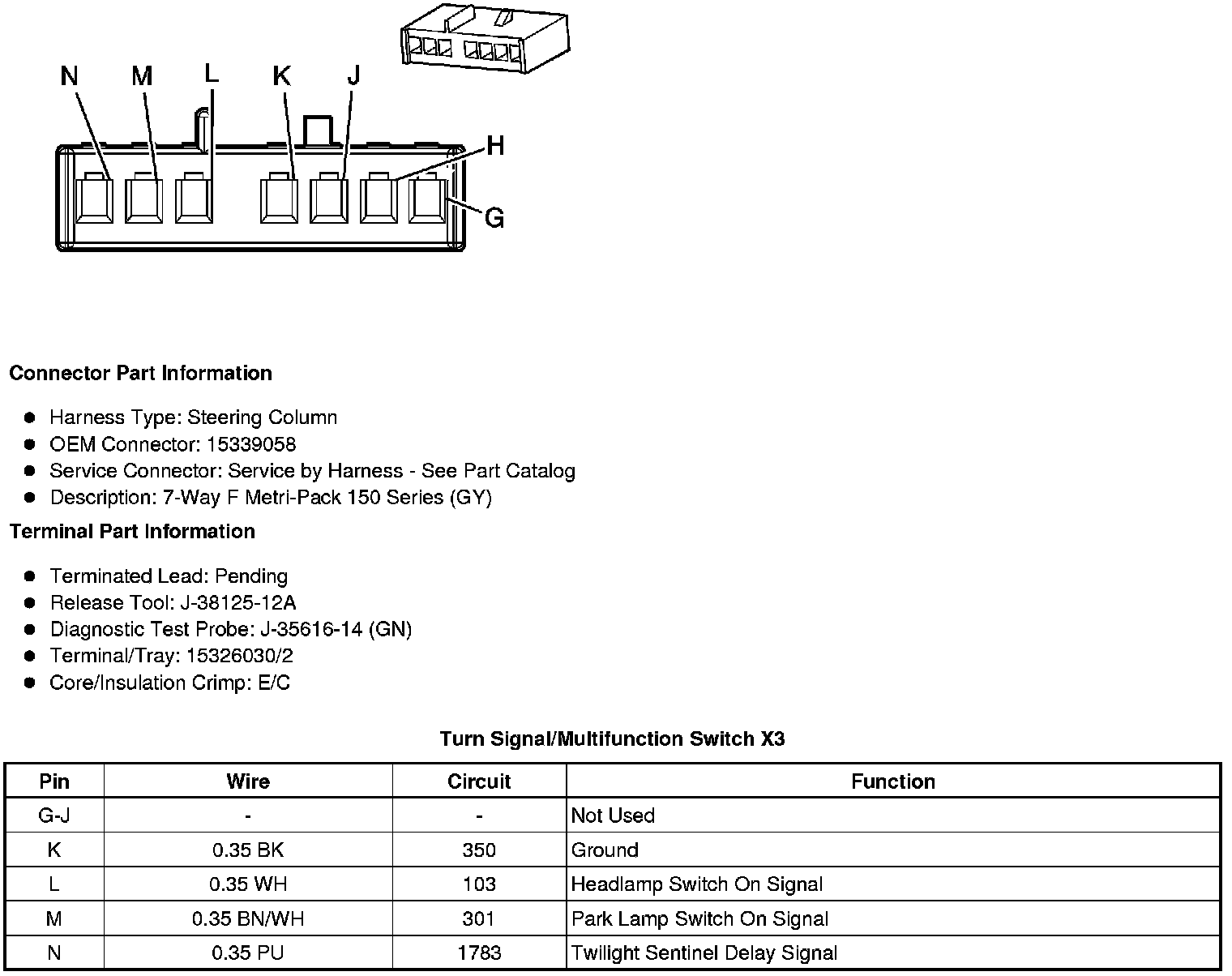

Turn Signal/Multifunction Switch X3

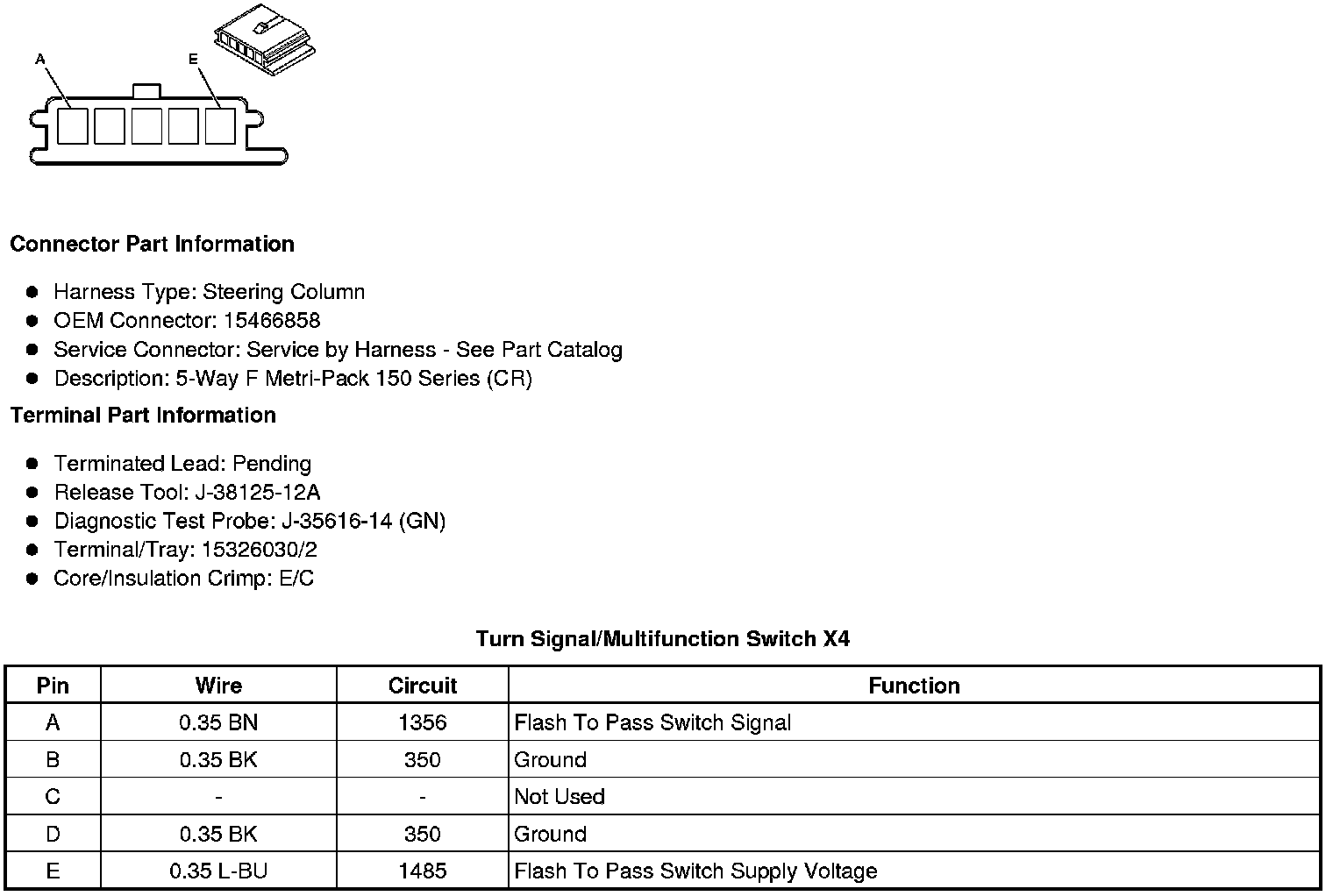

Turn Signal/Multifunction Switch X4
