Engine Control Module




Component Connector End Views

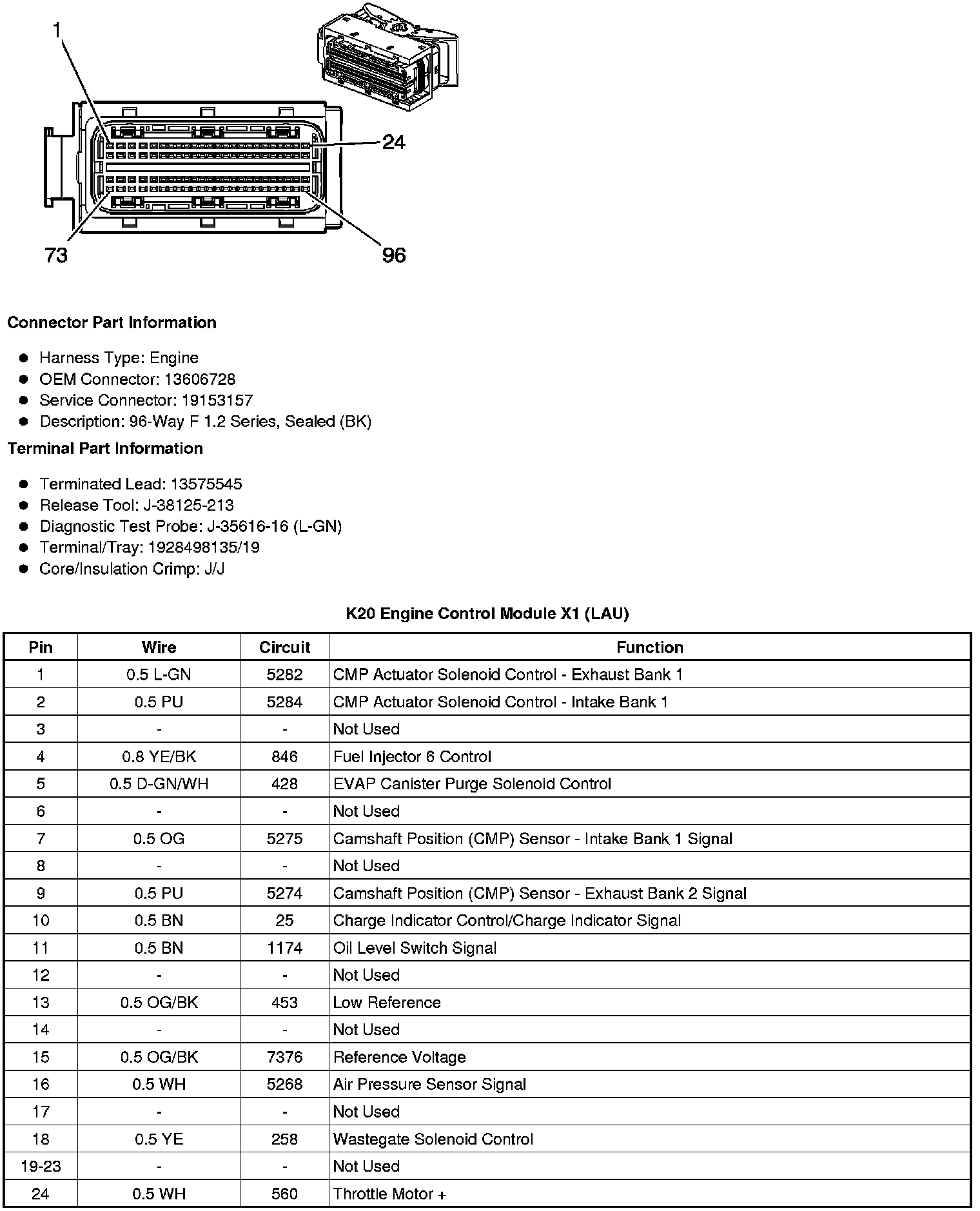

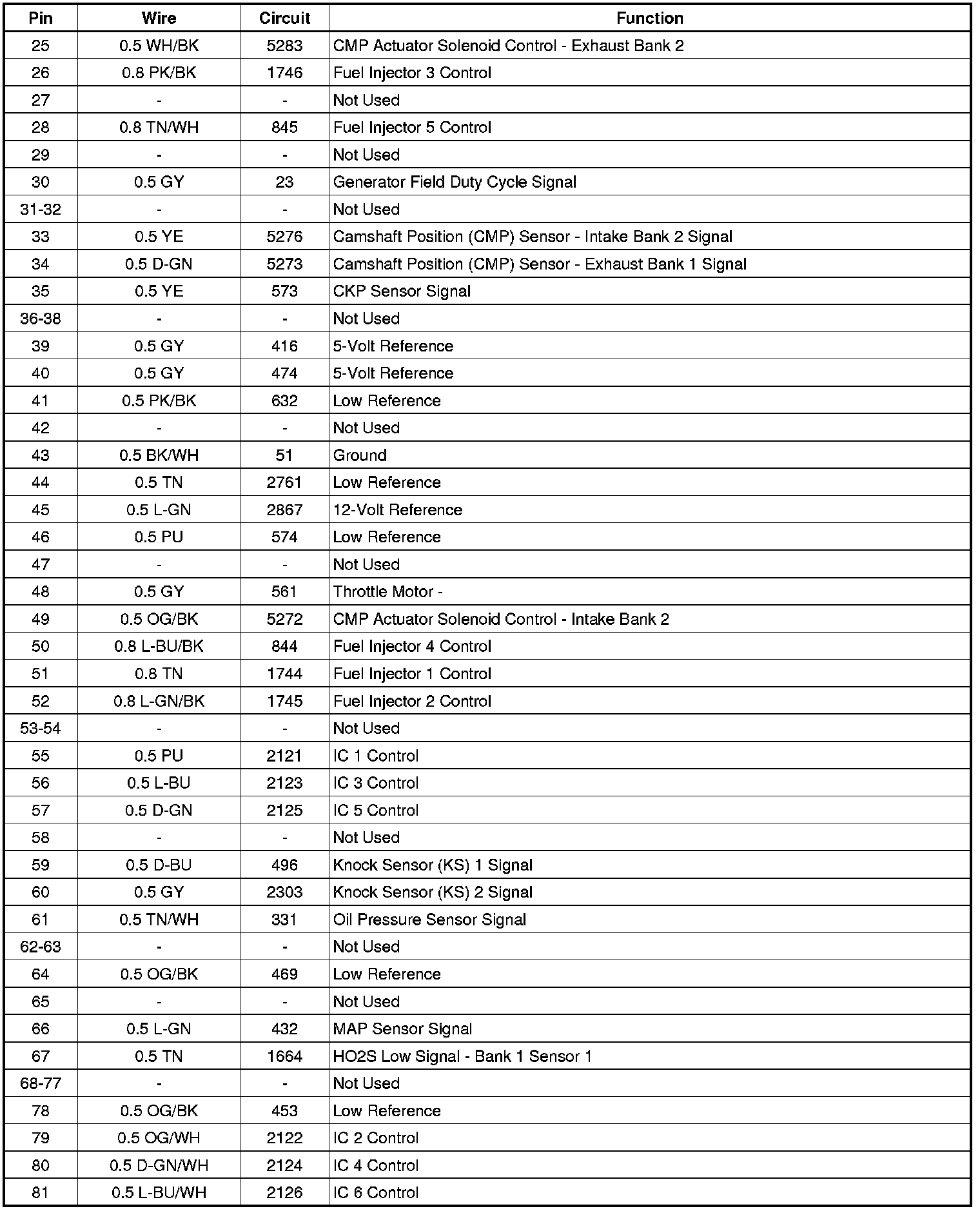

K20 Engine Control Module X1 (LAU)

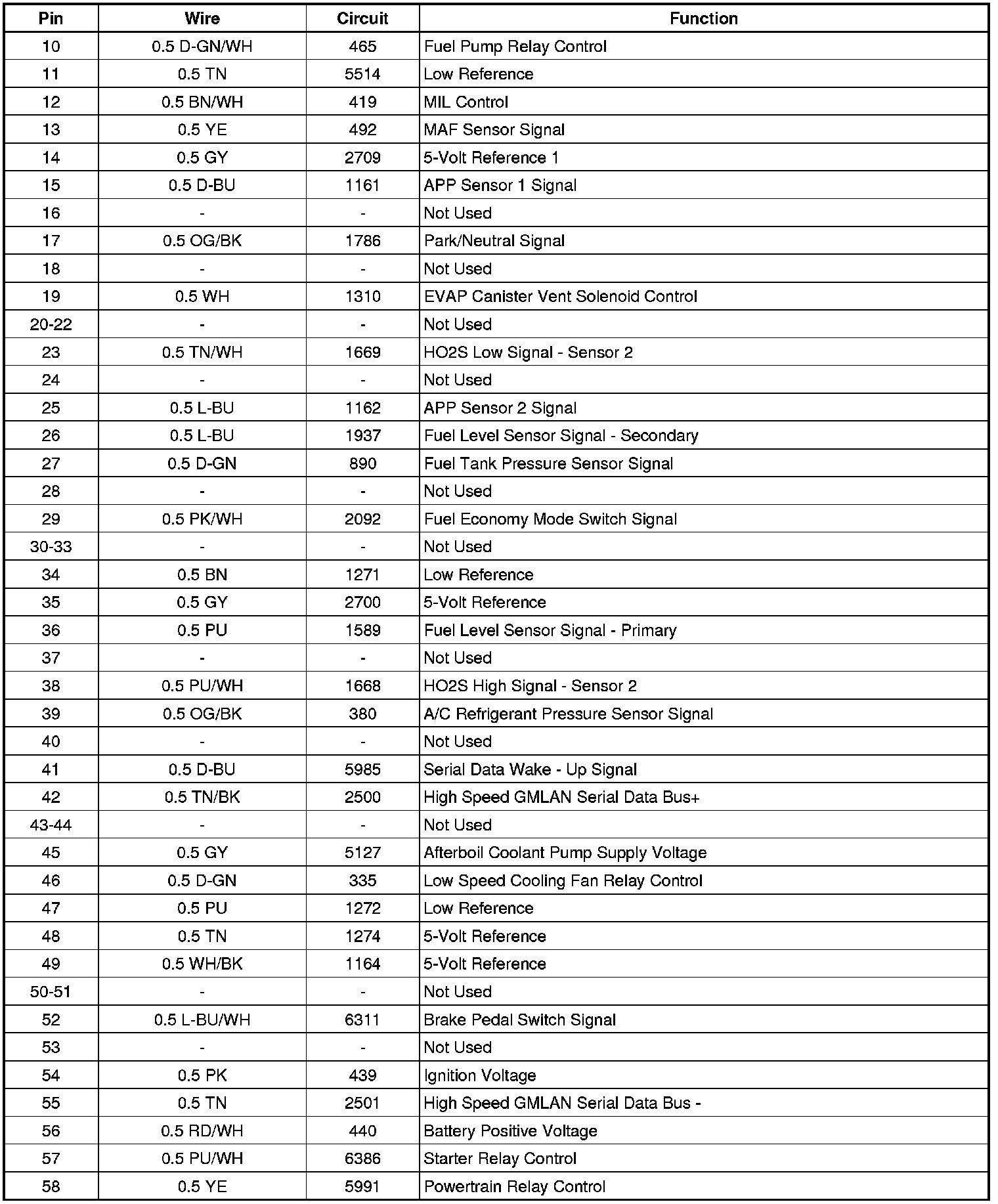

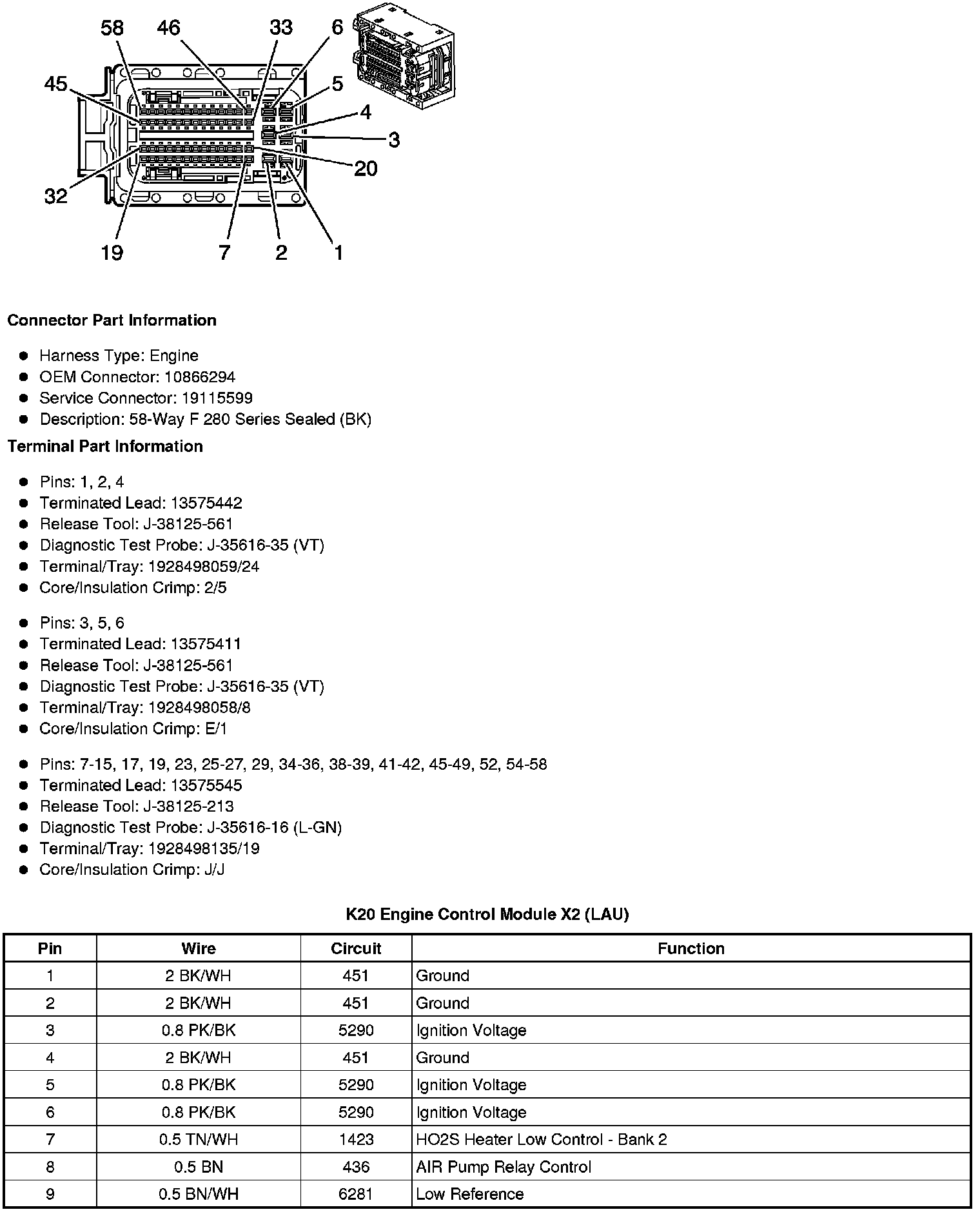

K20 Engine Control Module X2 (LAU)
