Oxygen Sensor: Diagrams

Component Connector End Views

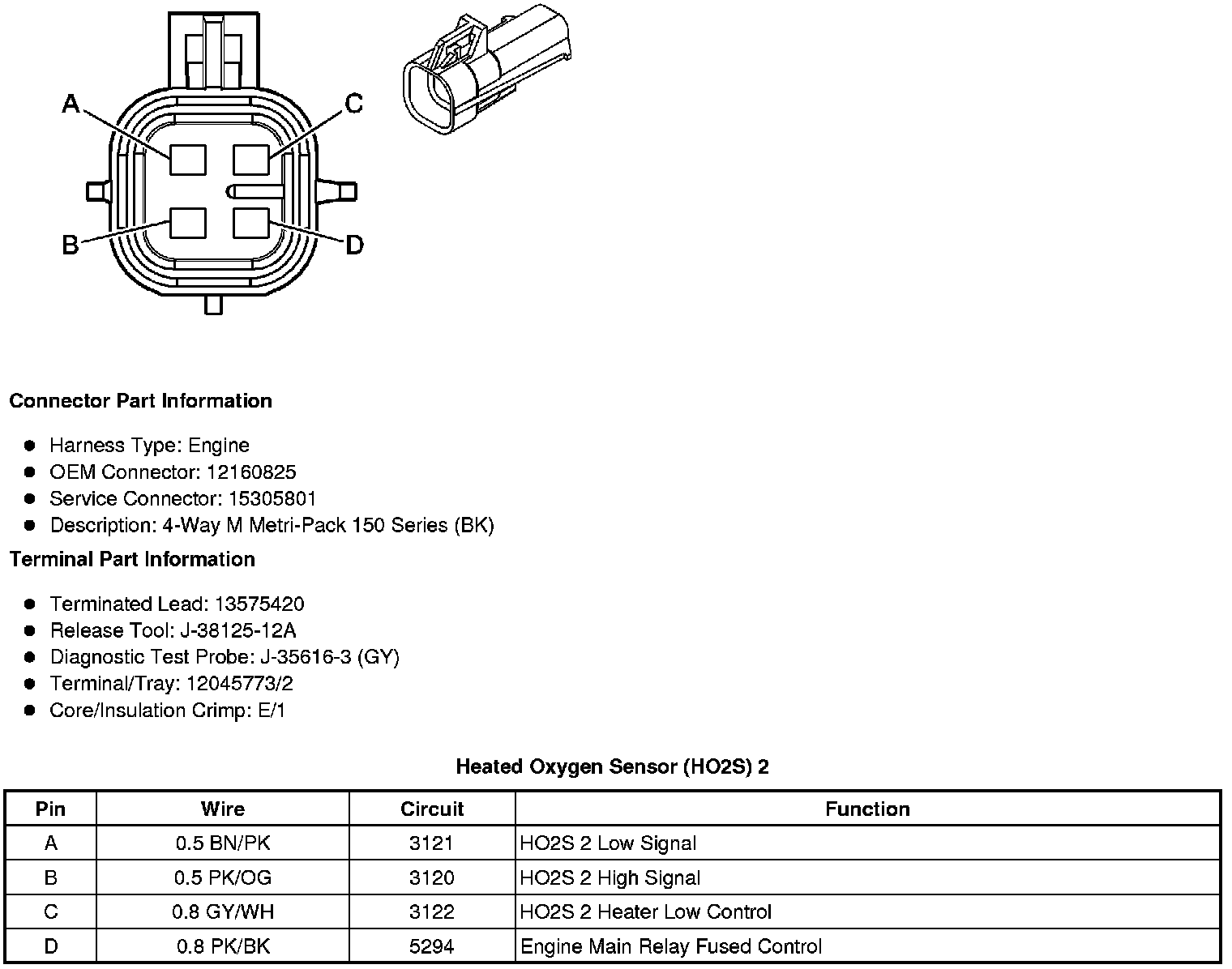

Heated Oxygen Sensor (HO2S) 2

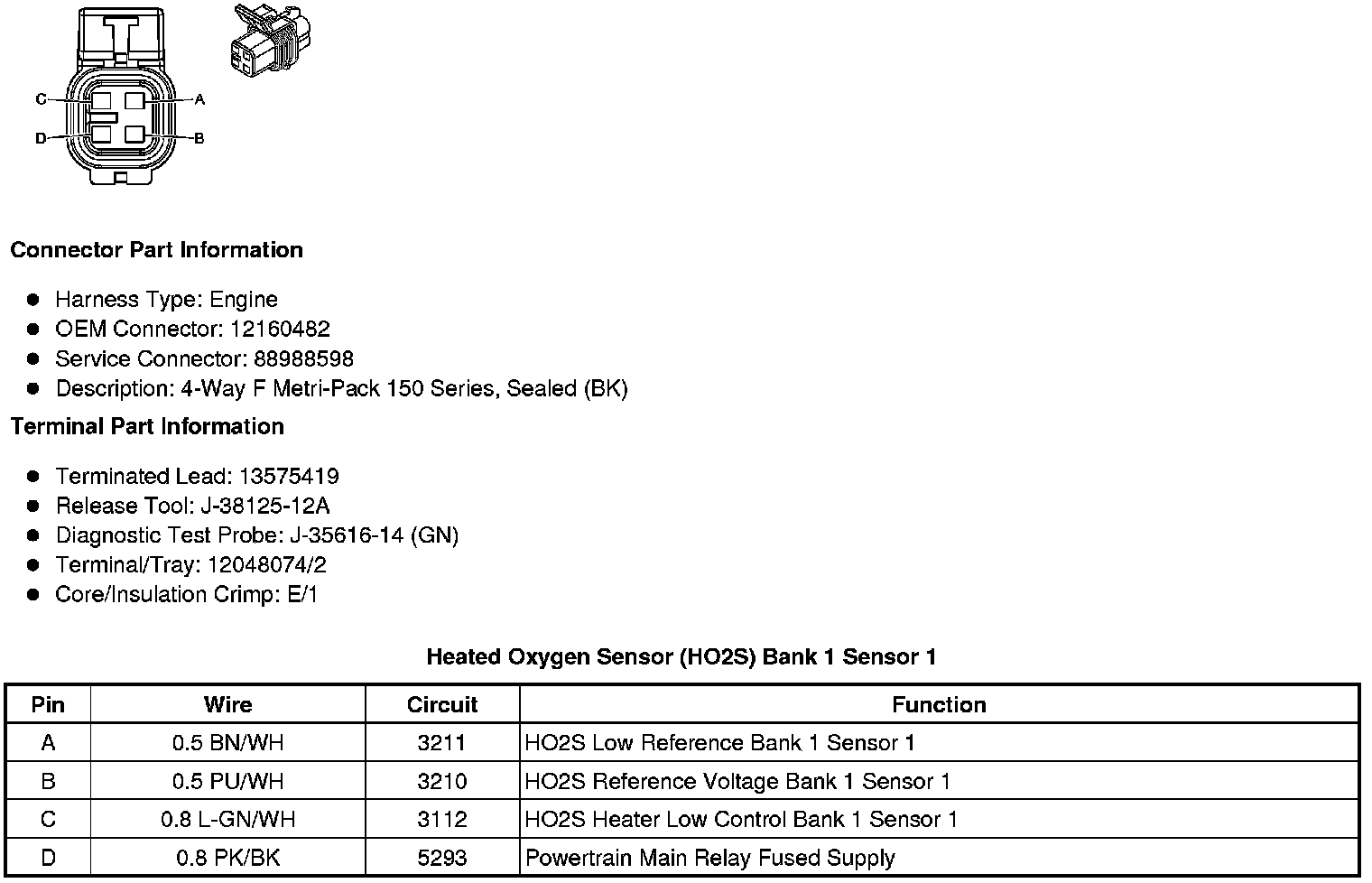

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

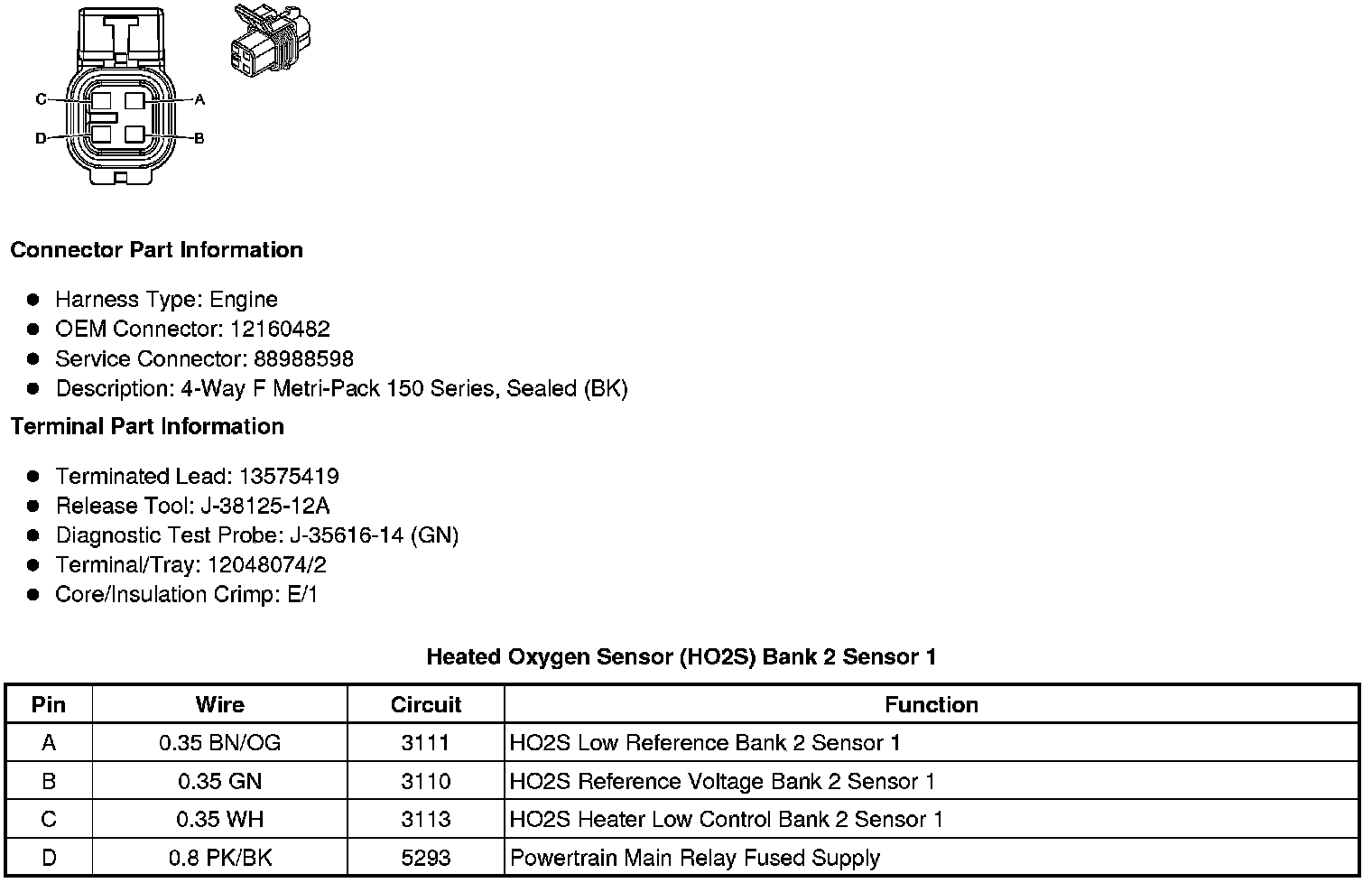

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
