Window Shade




Component Connector End Views

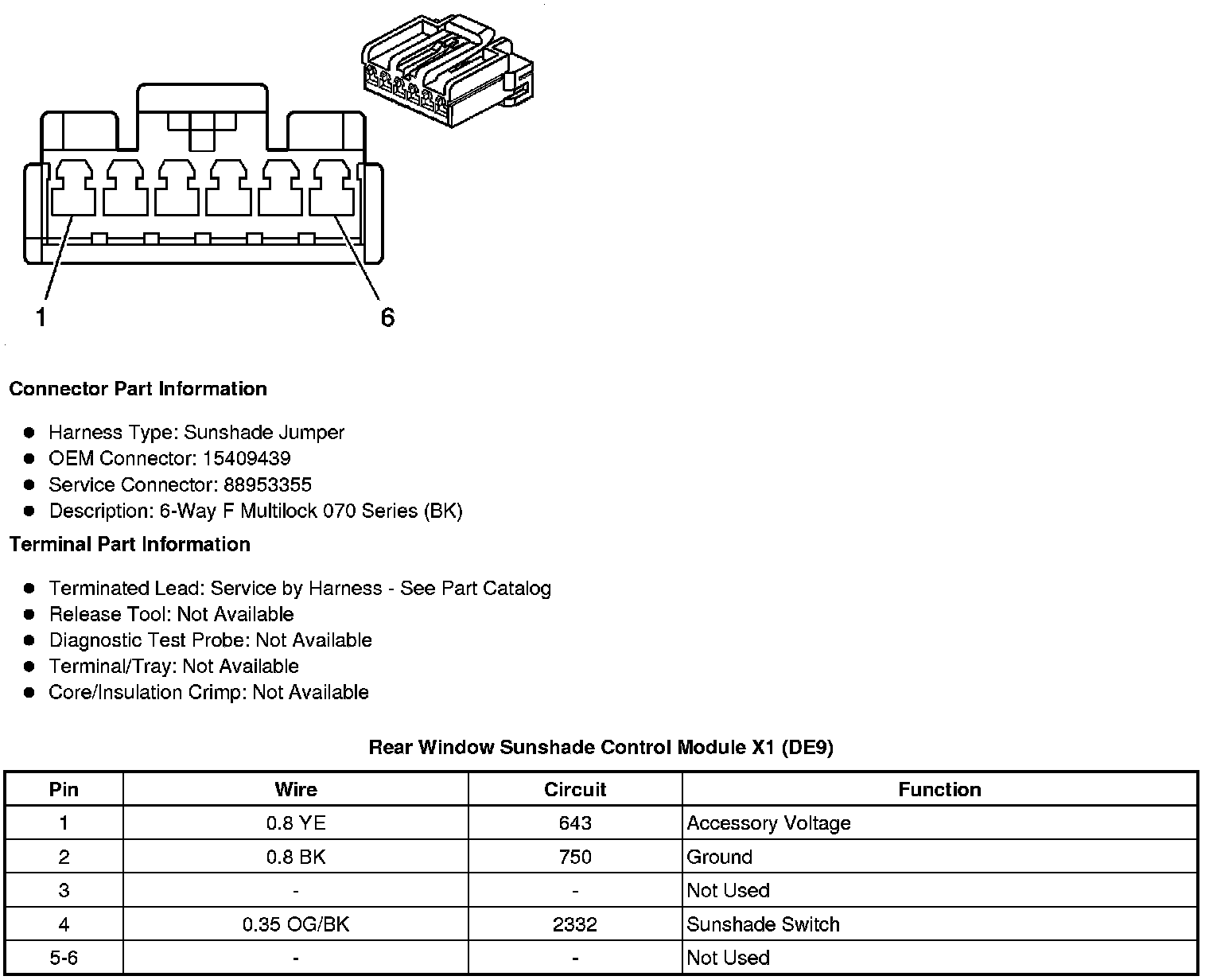

Rear Window Sunshade Control Module X1 (DE9)

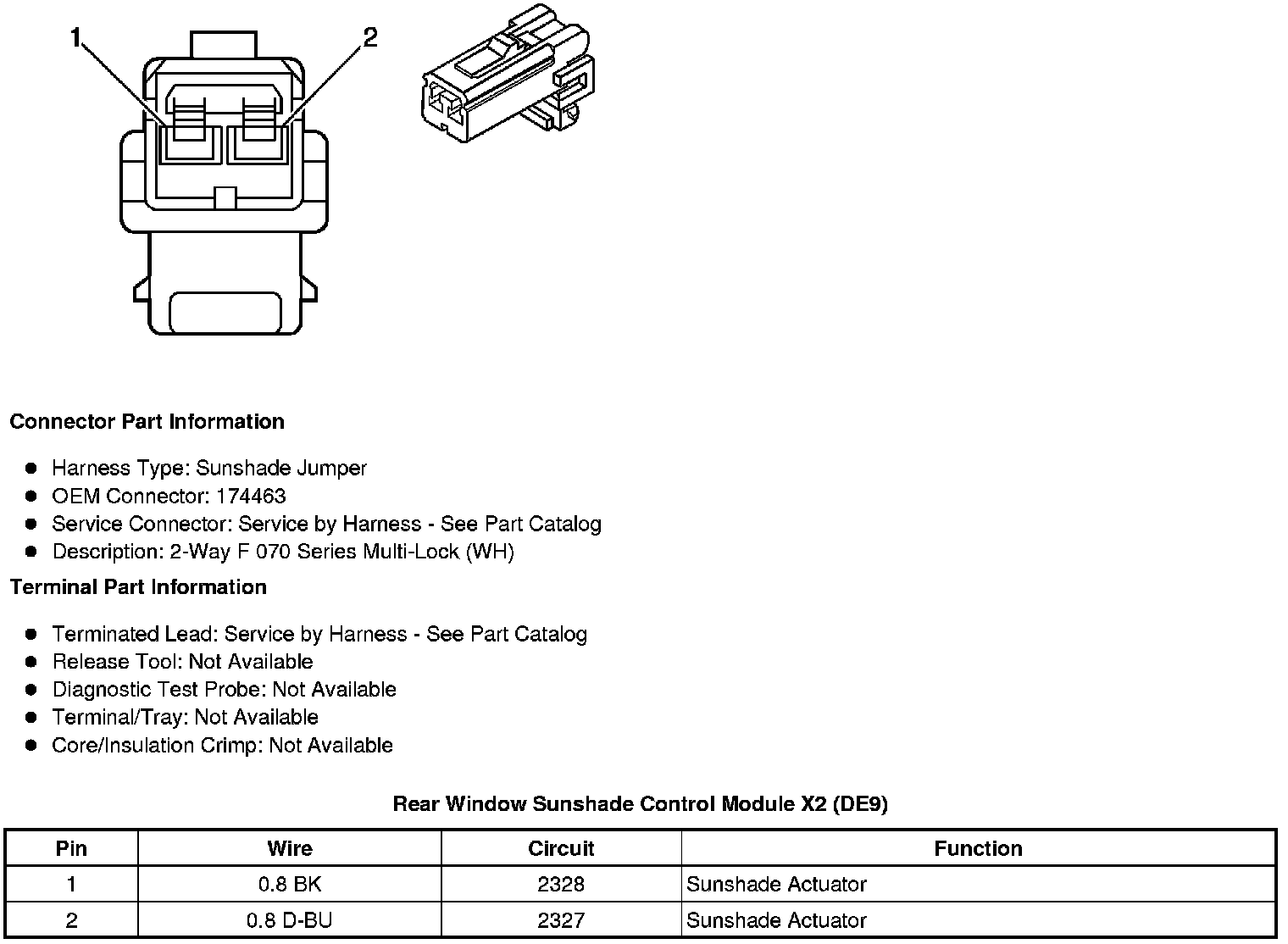

Rear Window Sunshade Control Module X2 (DE9)

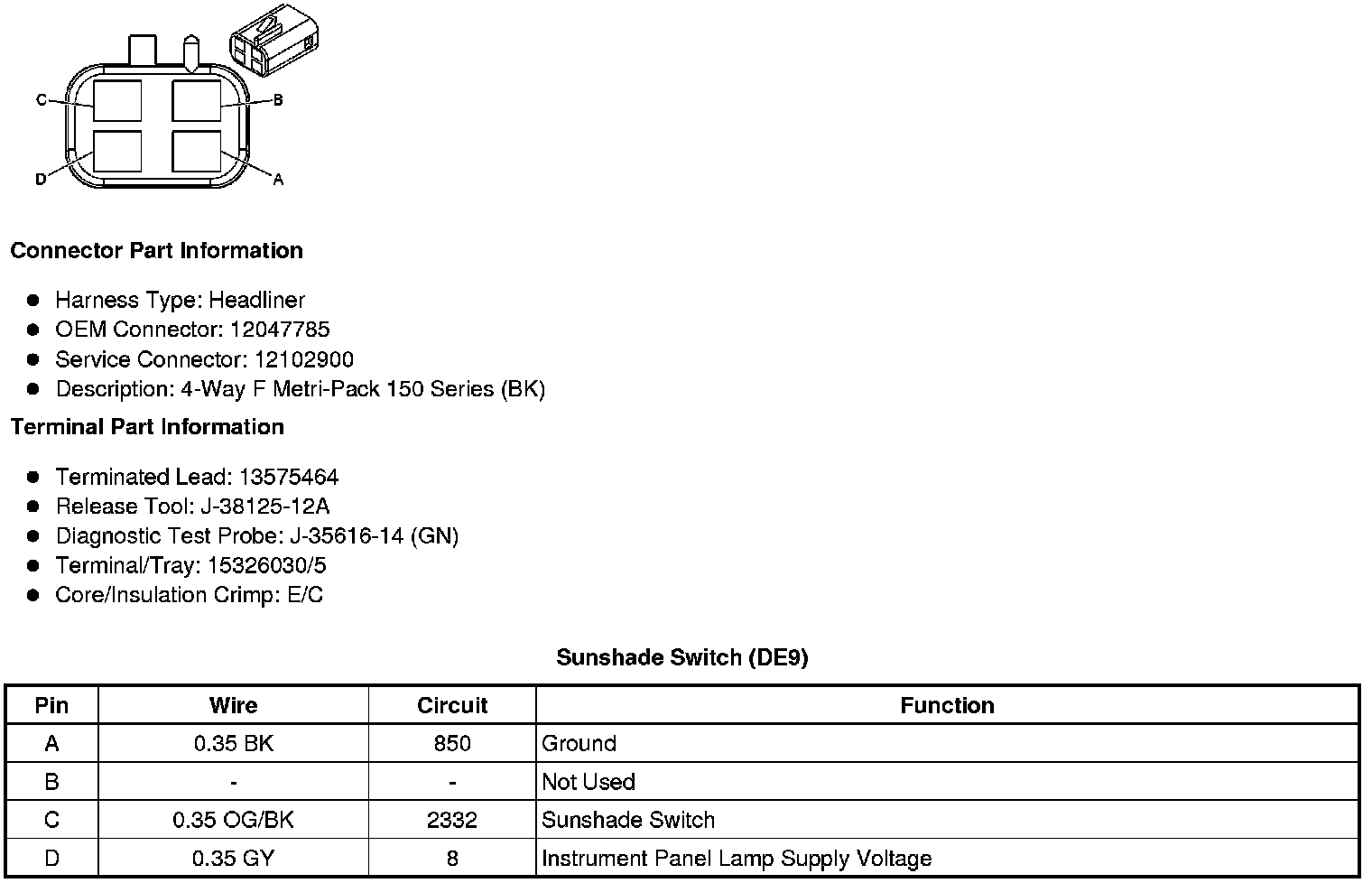

Sunshade Switch (DE9)
