Home >> Cadillac >> 2011 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Switch

Traction Control Switch




Component Connector End Views

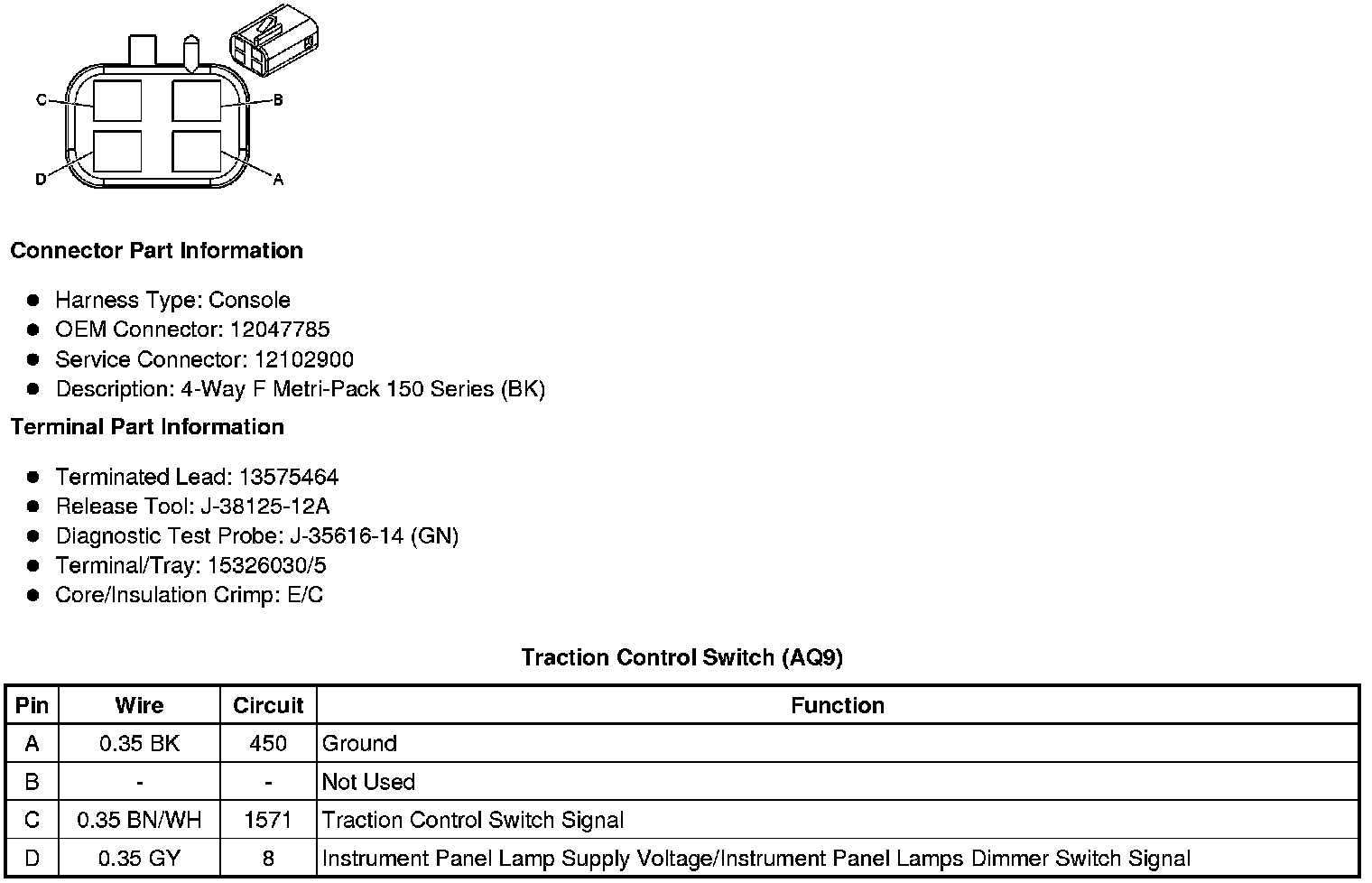

Traction Control Switch (AQ9)

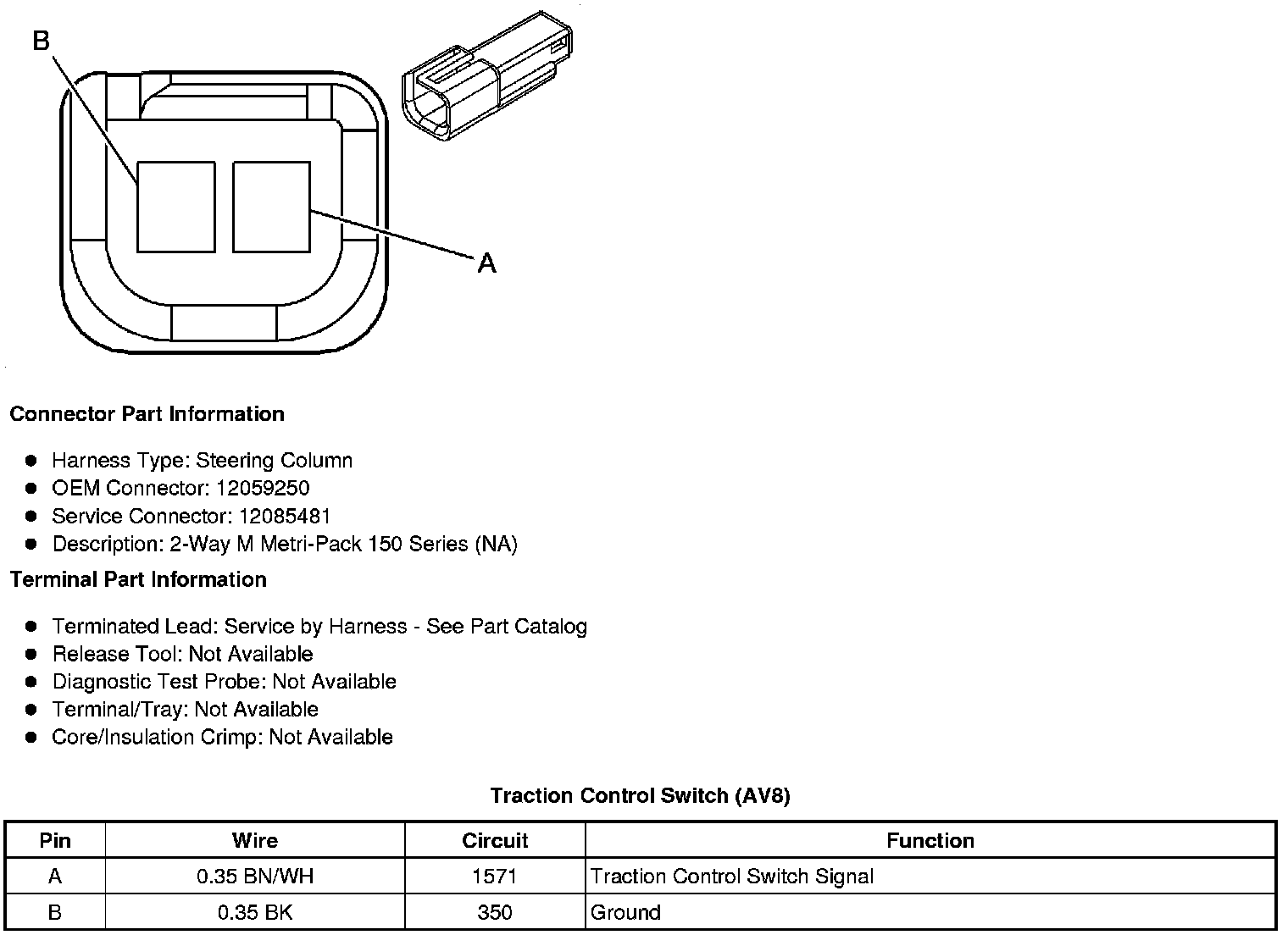

Traction Control Switch (AV8)
