Cadillac
>>
2011
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
Navigation System

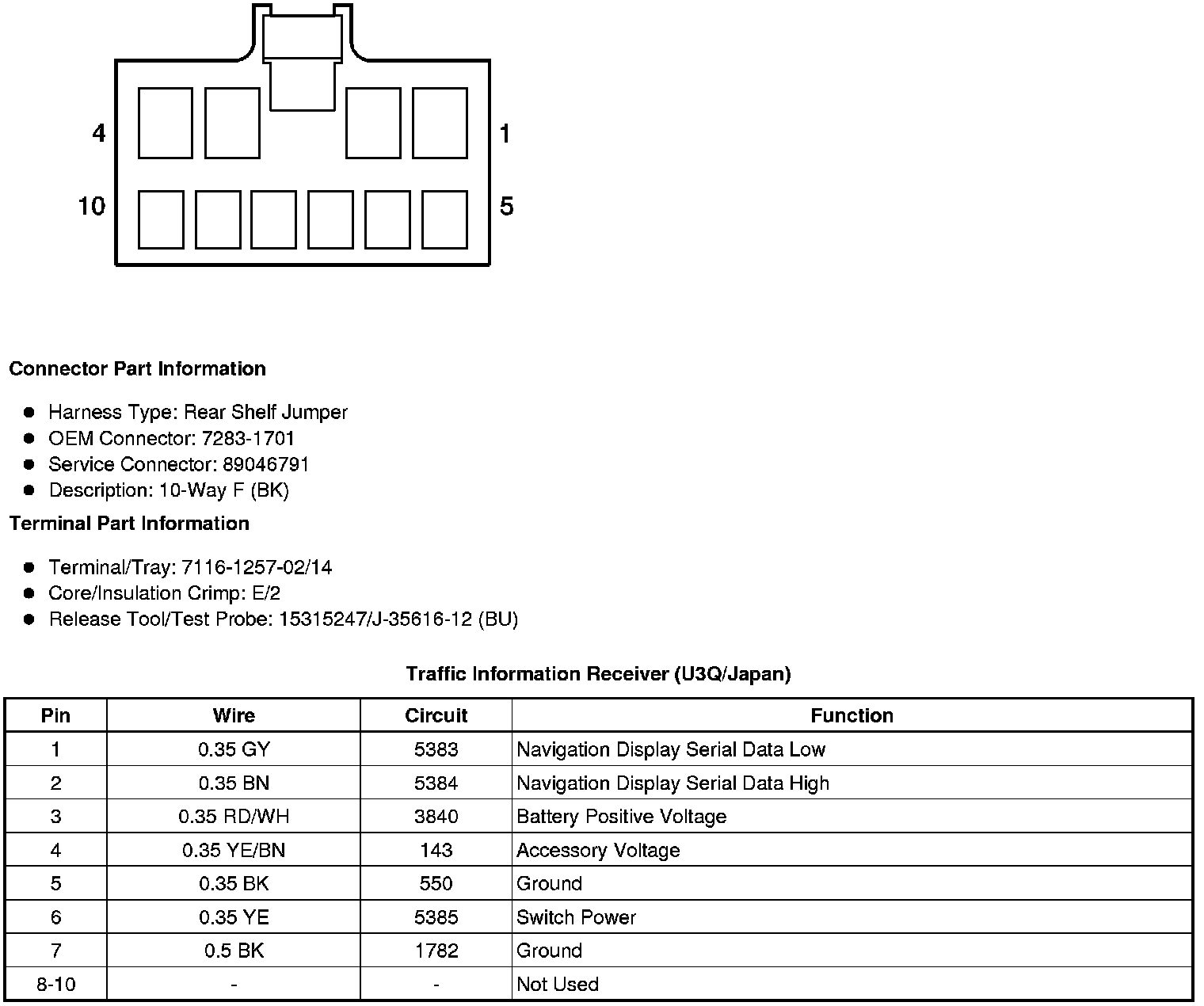

Component Connector End Views
Traffic Information Receiver (U3Q/Japan)
