Engine Control Module




Component Connector End Views

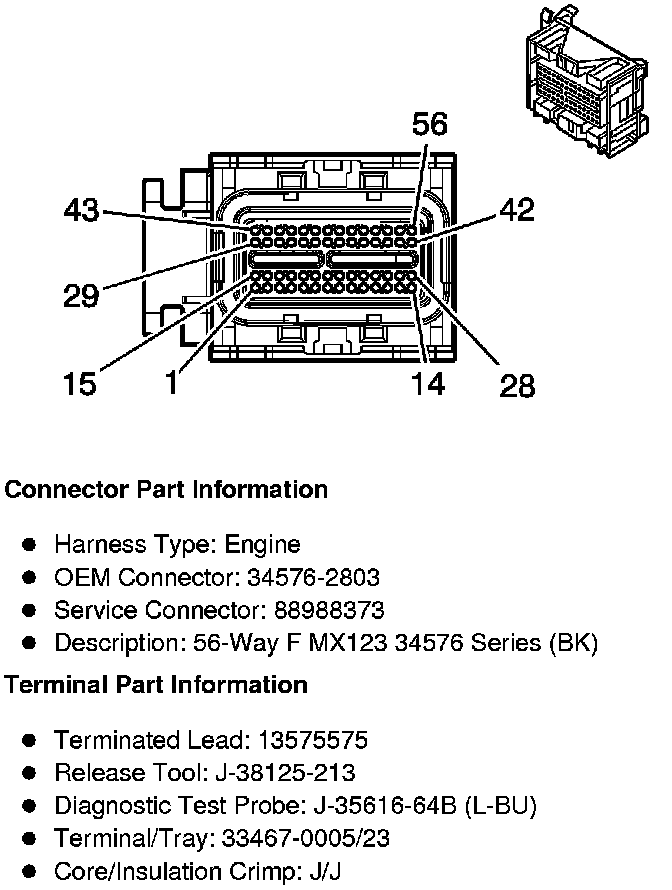

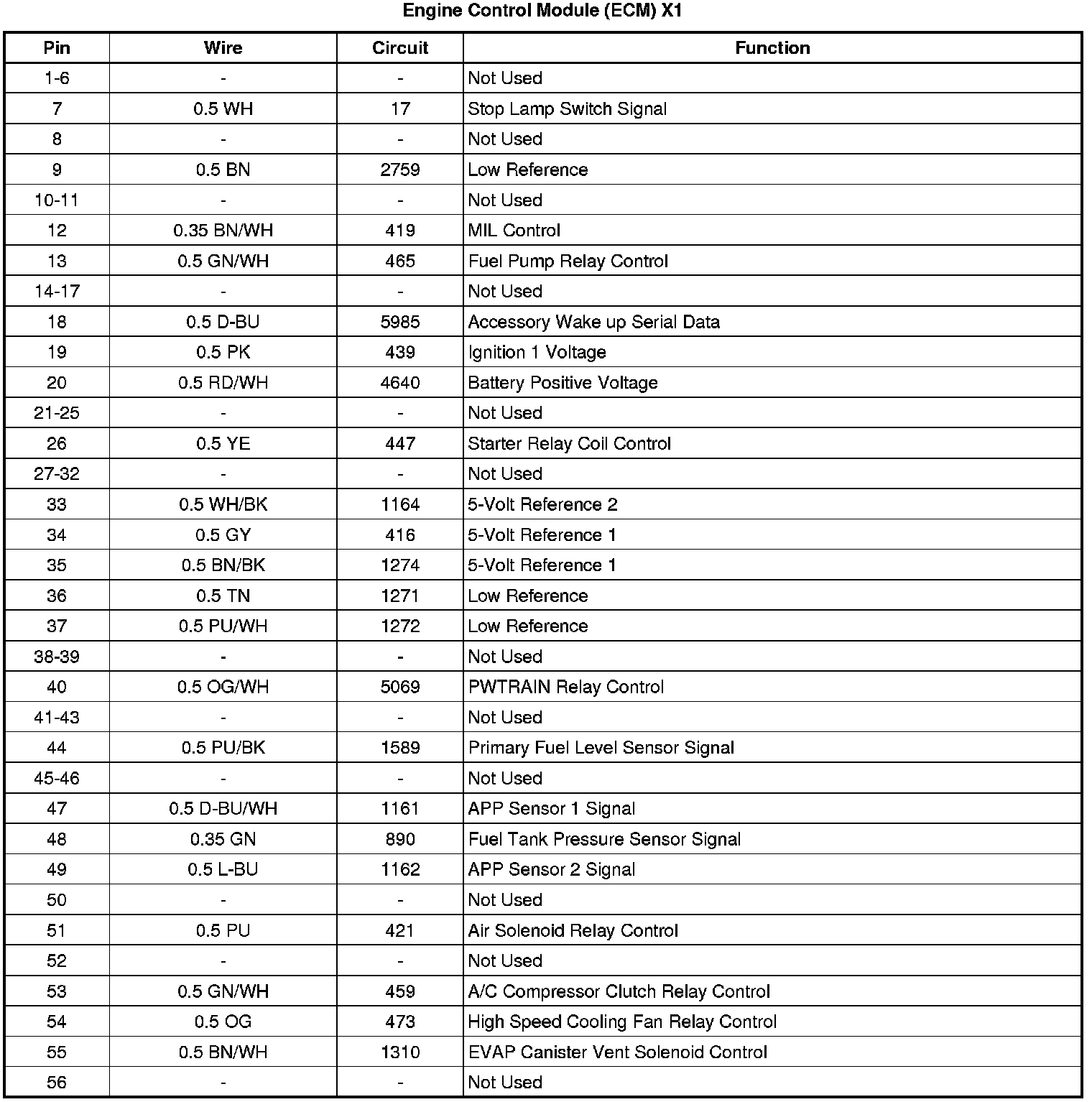

Engine Control Module (ECM) X1

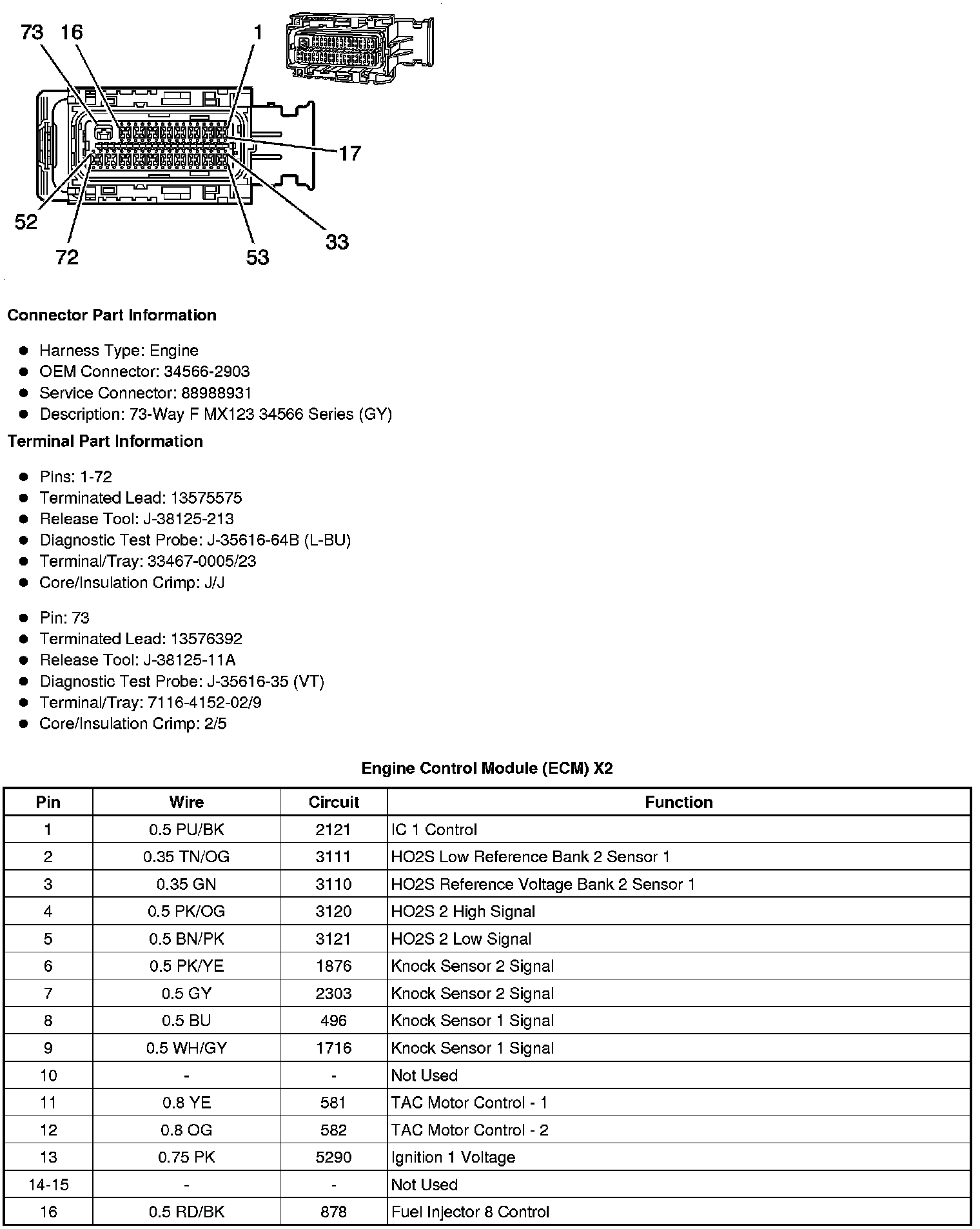

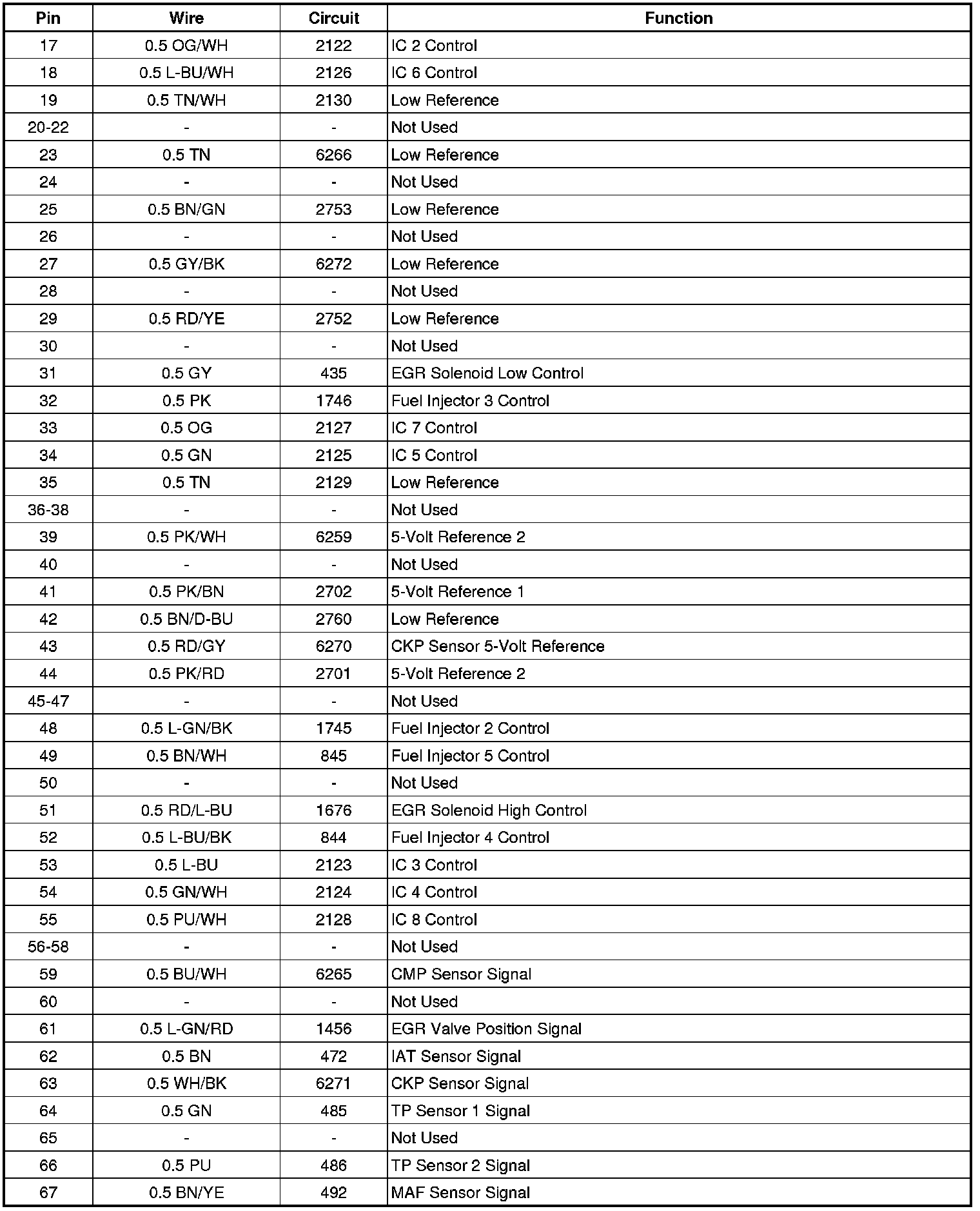

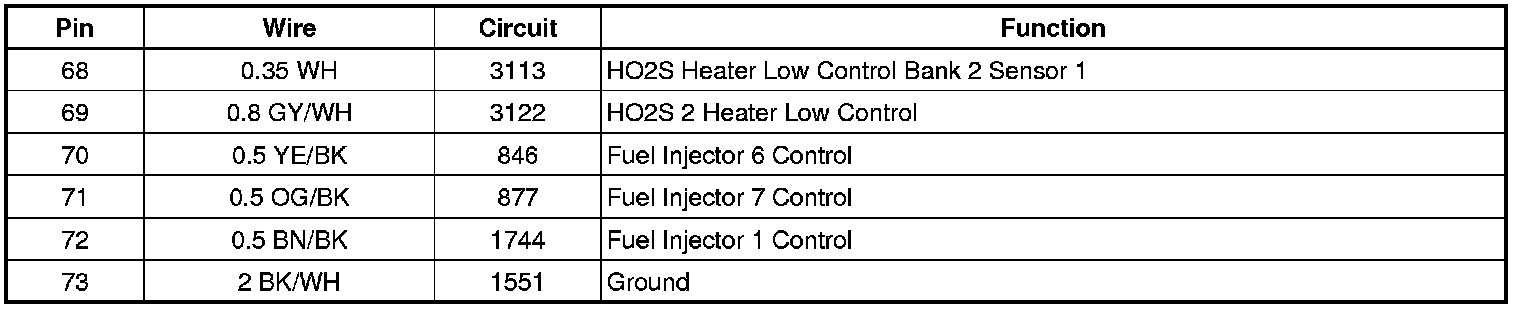

Engine Control Module (ECM) X2

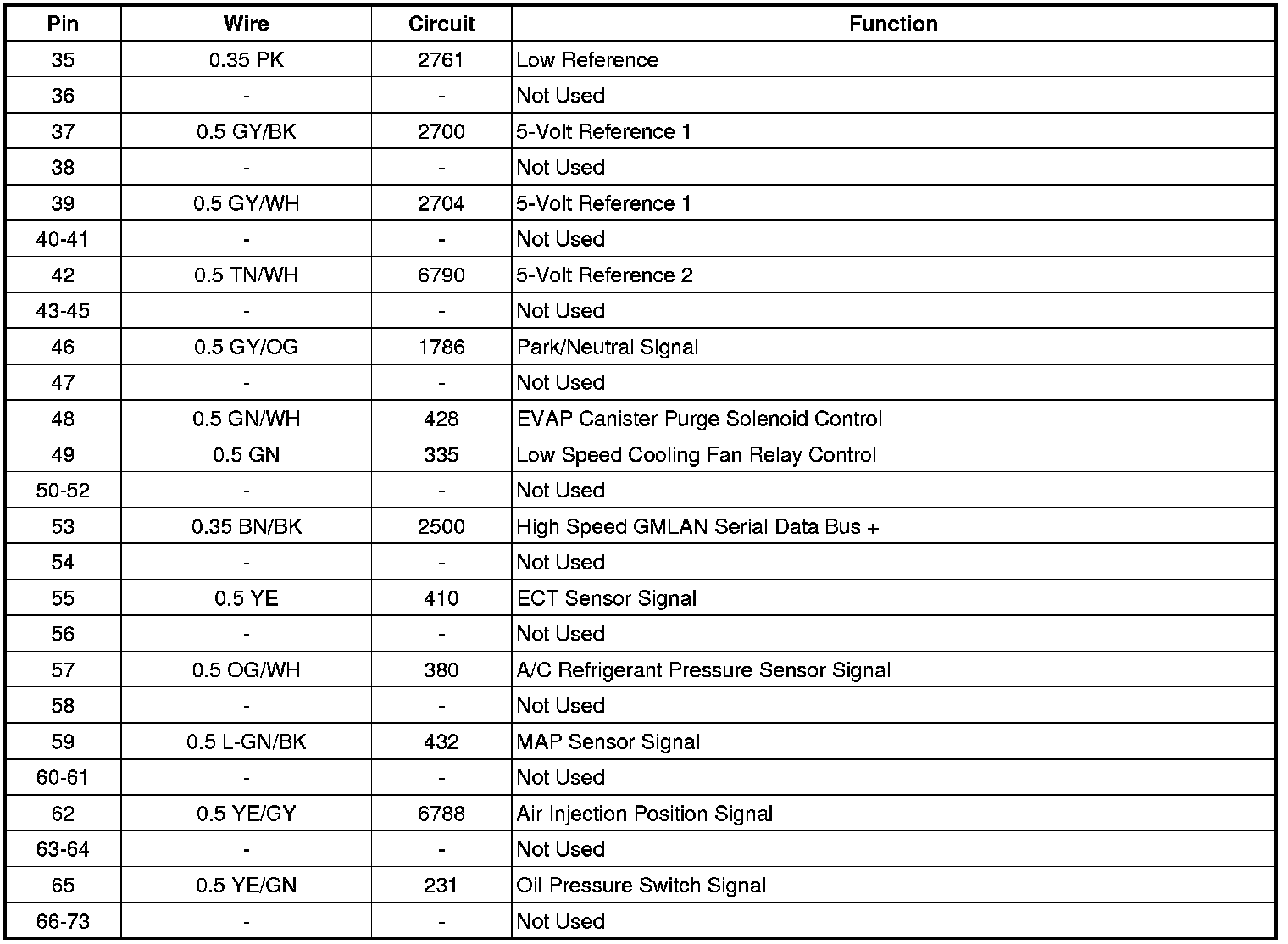

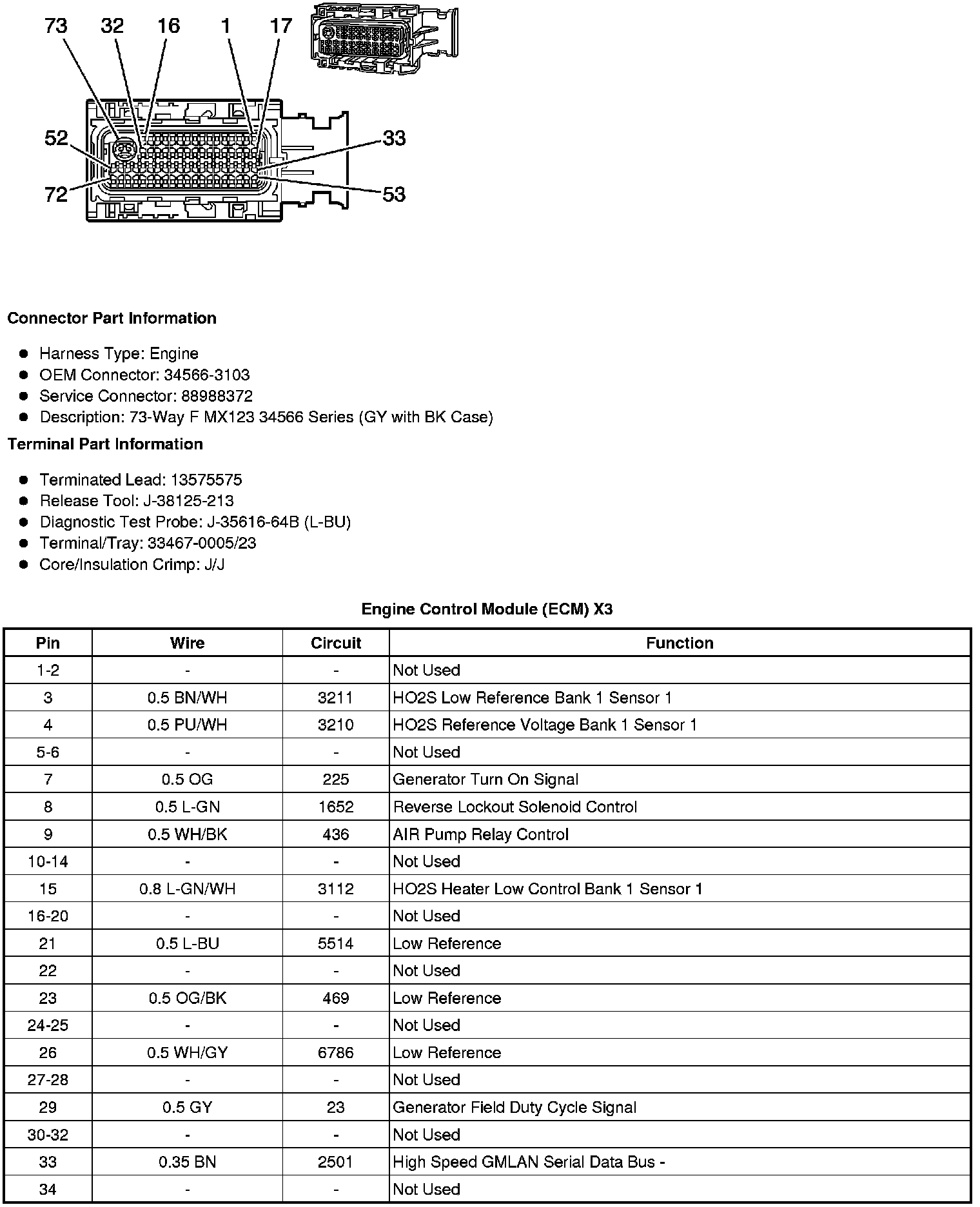

Engine Control Module (ECM) X3
