Control Assembly, HVAC




Component Connector End Views

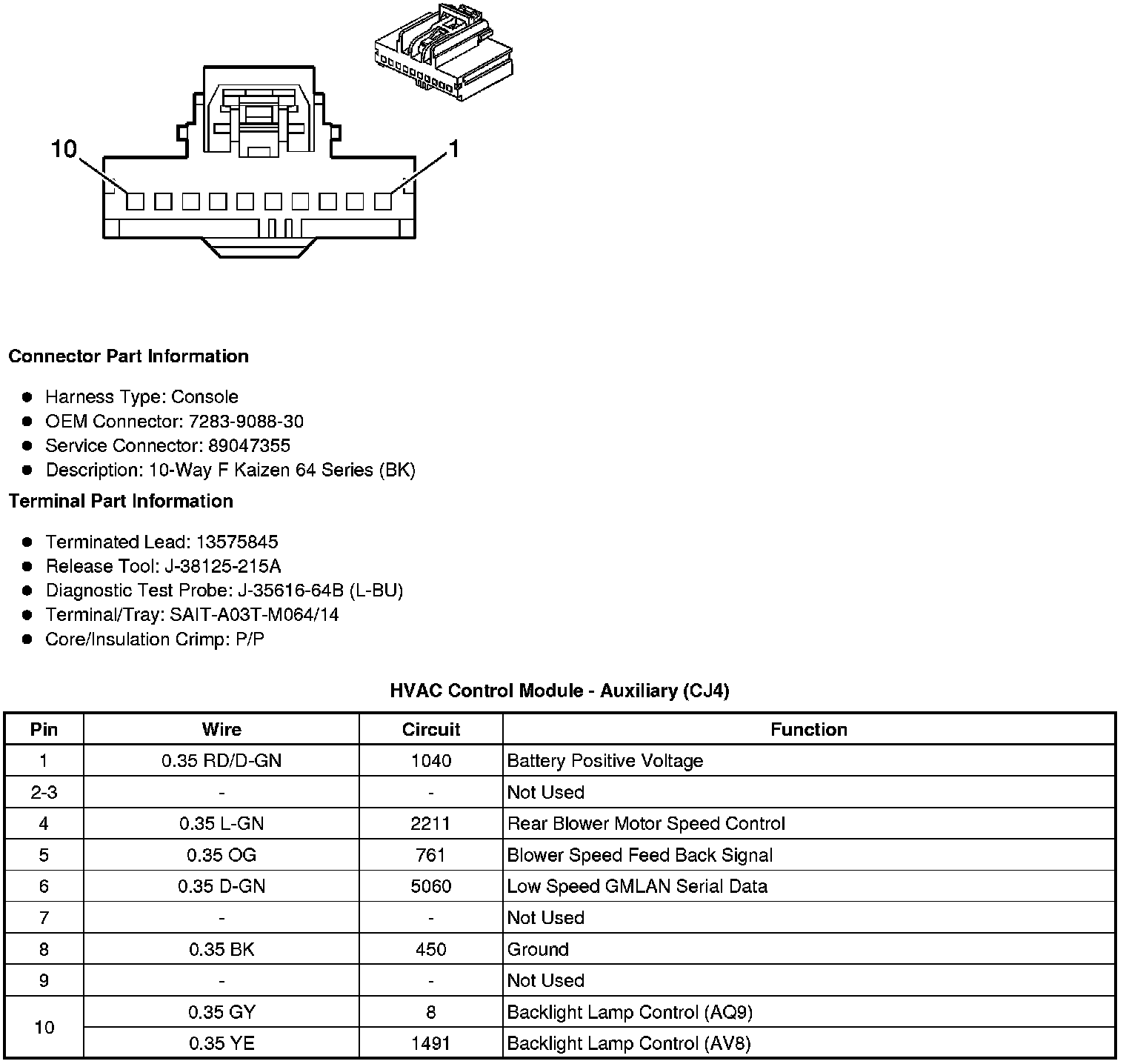

HVAC Control Module - Auxiliary (CJ4)

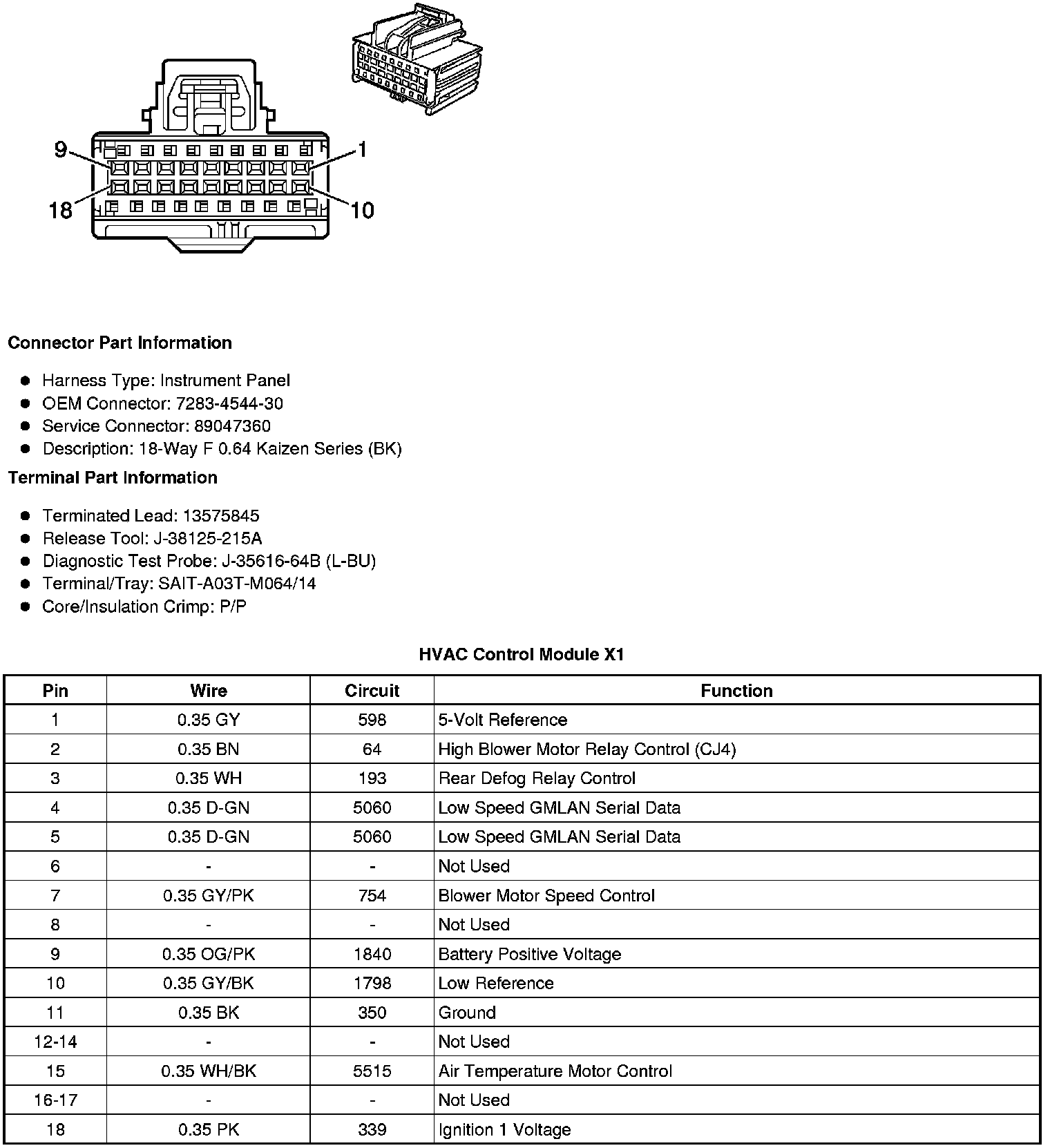

HVAC Control Module X1

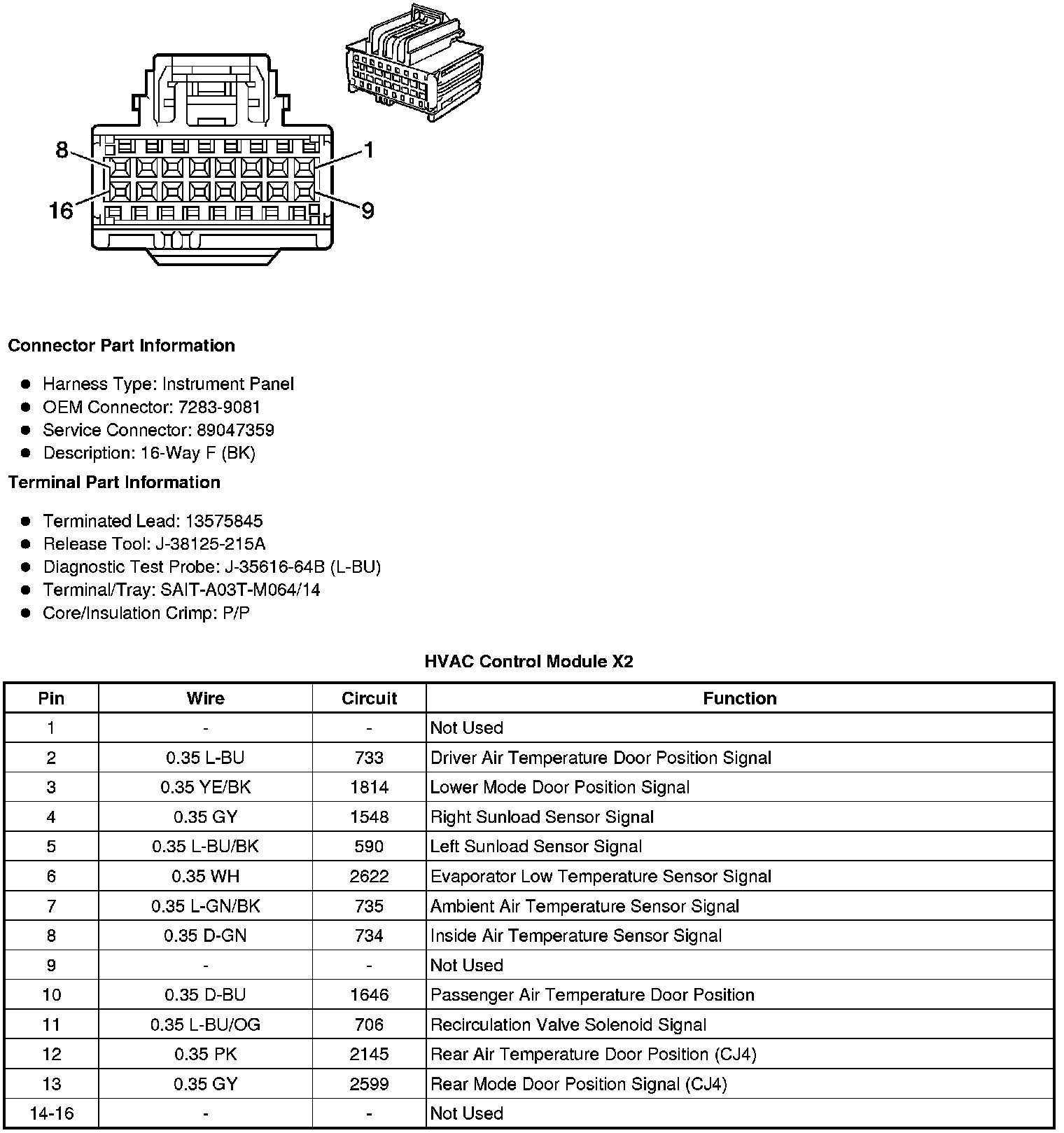

HVAC Control Module X2

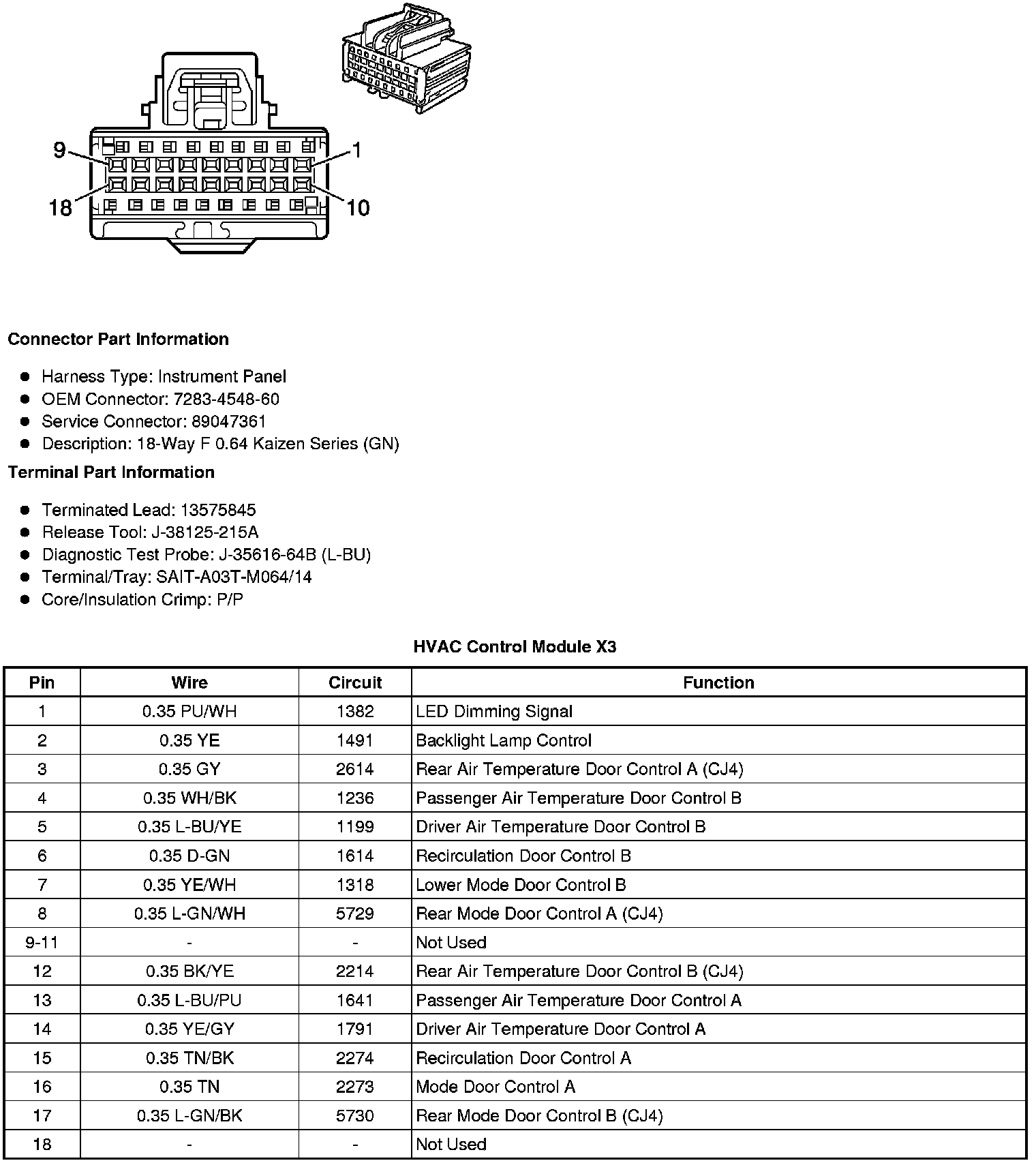

HVAC Control Module X3
