Compressor/Pump, Suspension Control
Compressor/Pump, Suspension Control

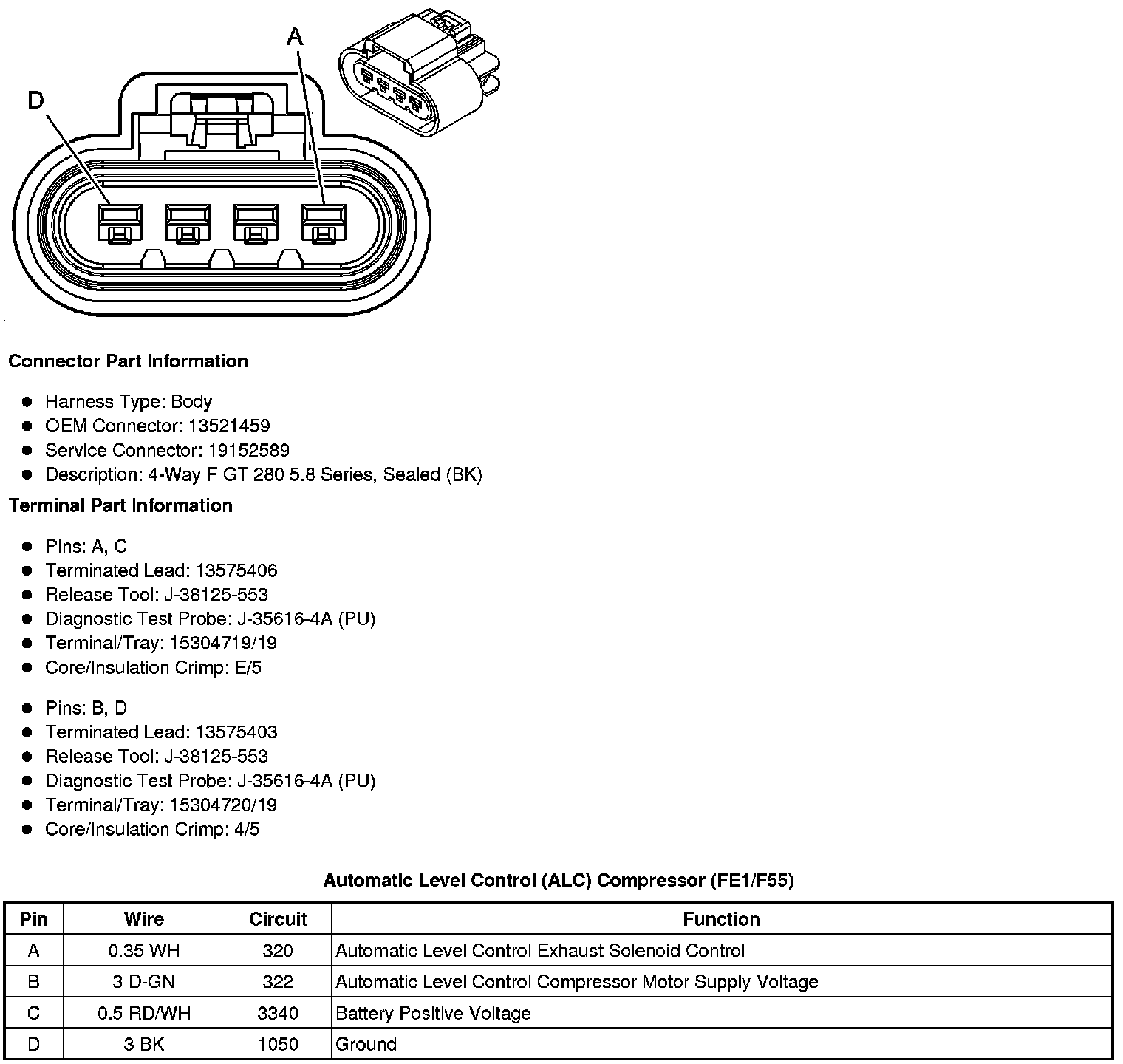

Component Connector End Views
Automatic Level Control (ALC) Compressor (FE1/F55)
