Home >> Cadillac >> 2011 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch




Component Connector End Views

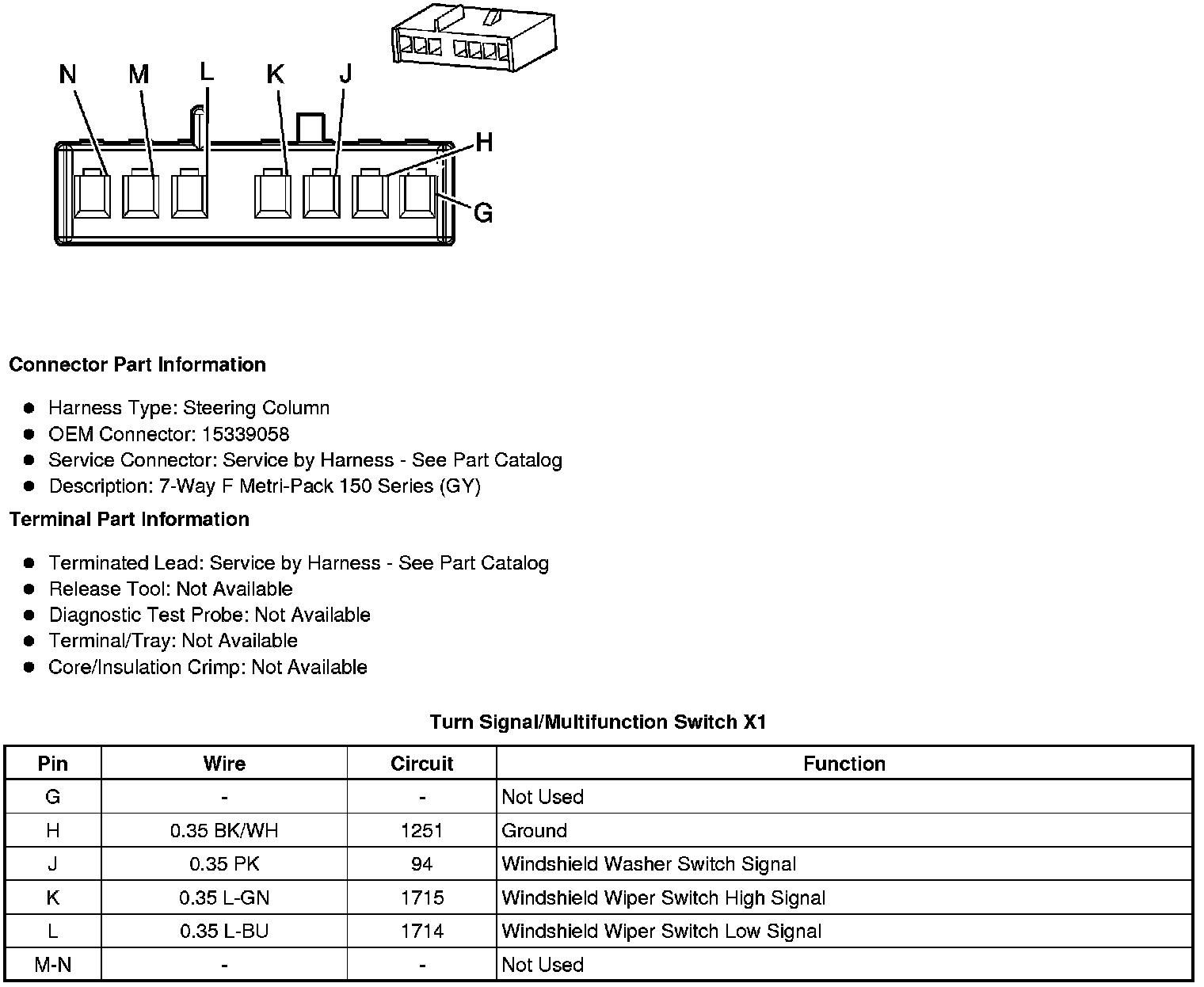

Turn Signal/Multifunction Switch X1

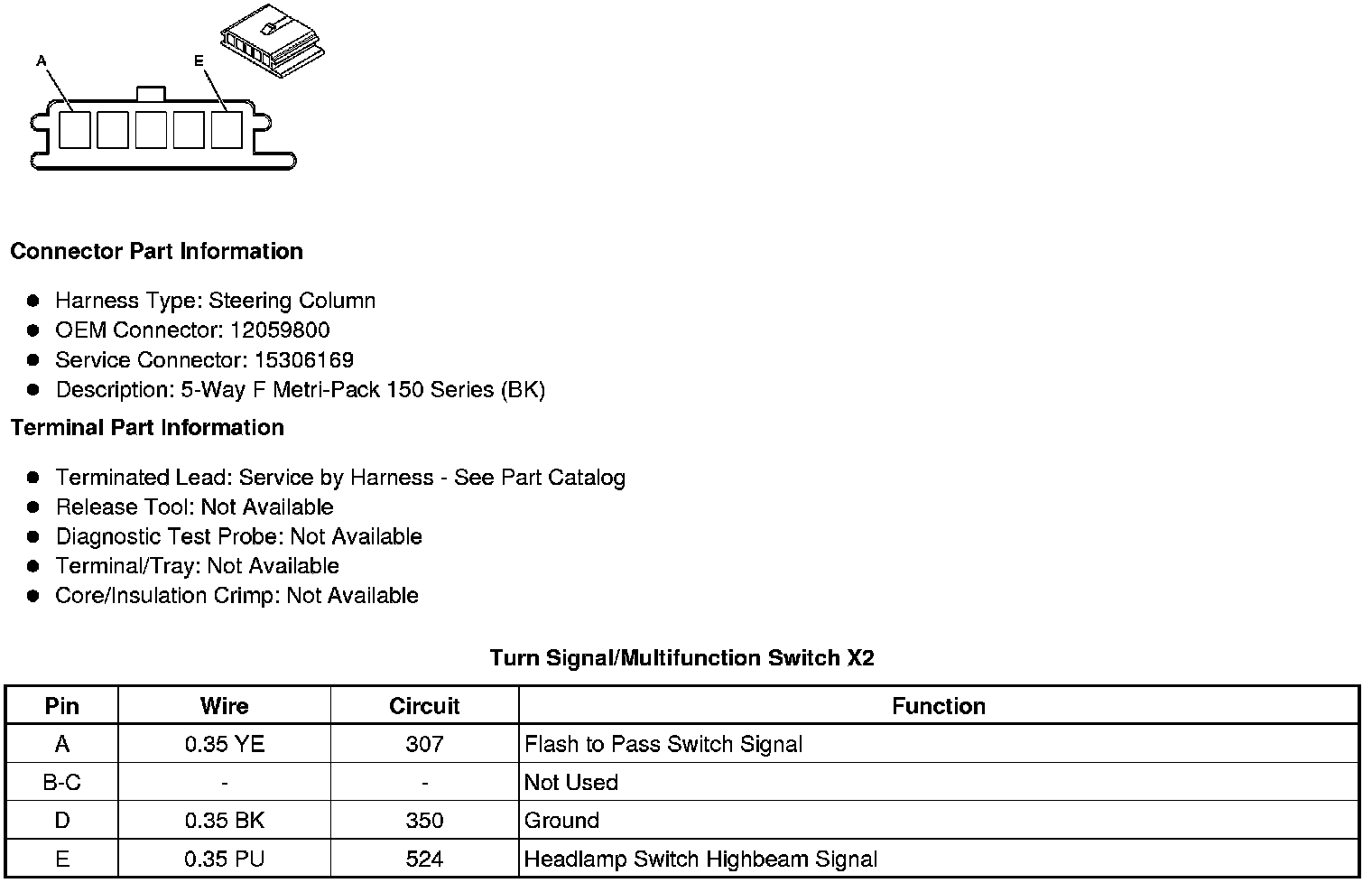

Turn Signal/Multifunction Switch X2

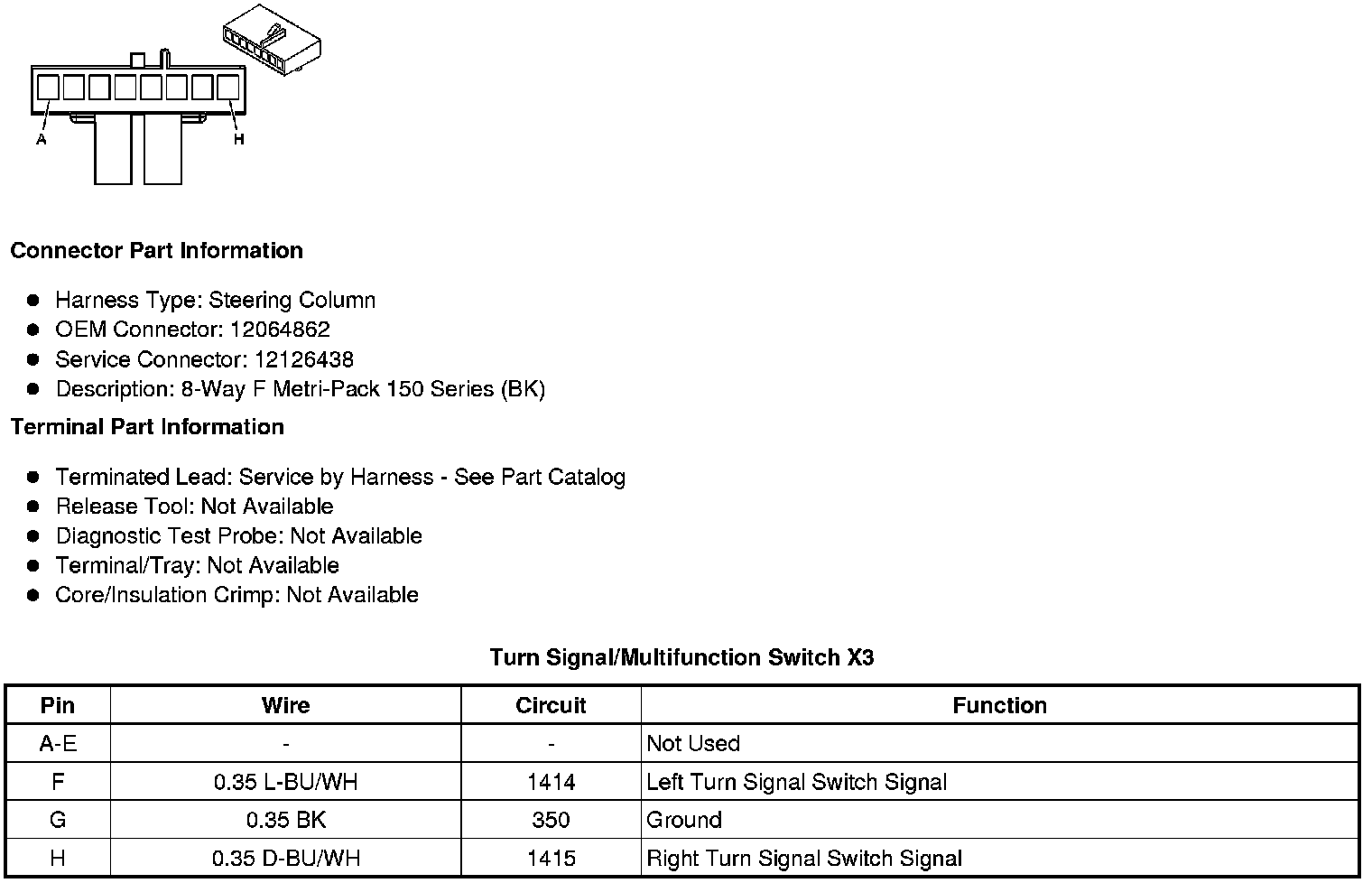

Turn Signal/Multifunction Switch X3
