Cadillac
>>
2011
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Acceleration/Deceleration Sensor
Acceleration/Deceleration Sensor

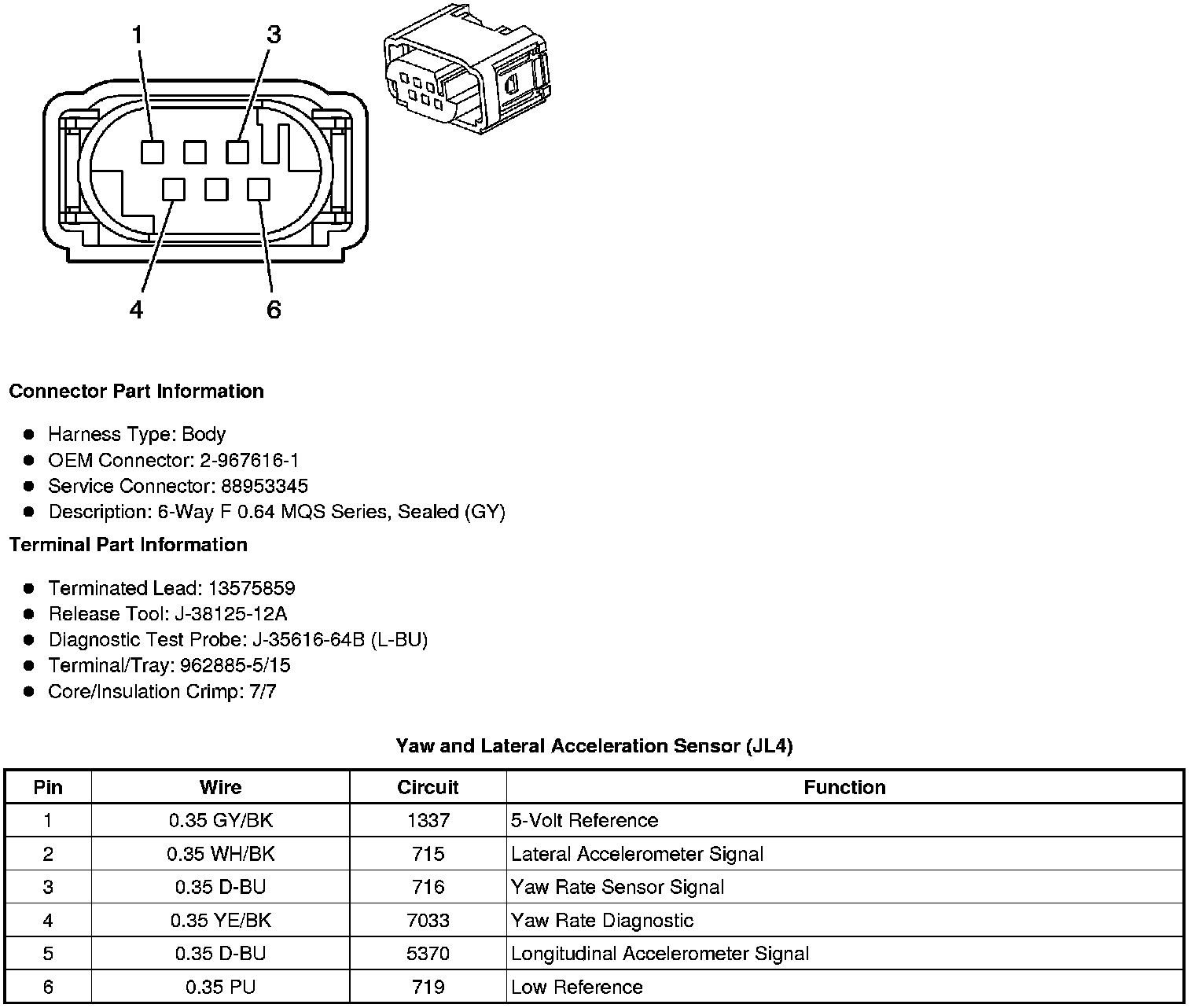

Component Connector End Views
Yaw and Lateral Acceleration Sensor (JL4)
