Home >> Cadillac >> 2011 >> DTS V8-4.6L >> Repair and Diagnosis >> Cruise Control >> Distance Sensor >> Diagrams

Distance Sensor: Diagrams

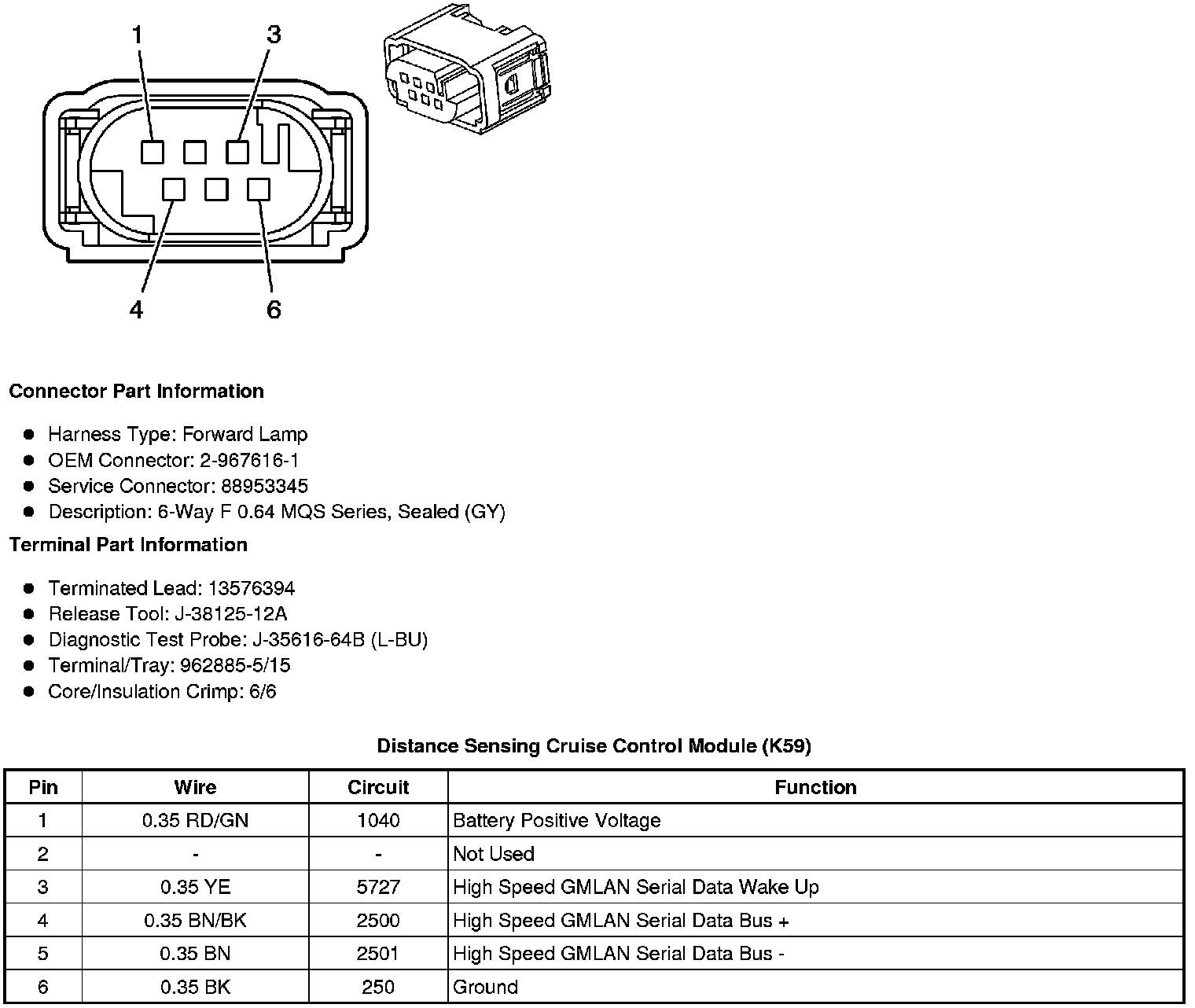

Component Connector End Views

Distance Sensing Cruise Control Module (K59)
