Splash Guard: Service and Repair

Engine Splash Shield Replacement


Removal Procedure





1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

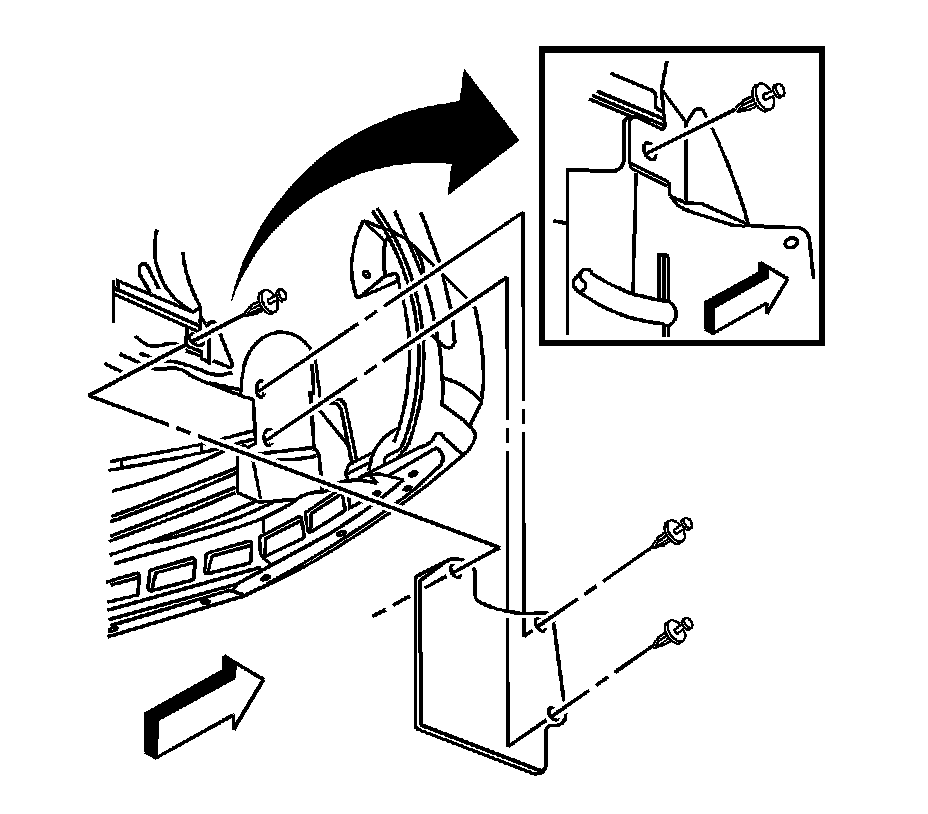

2.Remove the push-in retainers securing the splash shield to the vehicle.

3.Remove the splash shield from the vehicle.

Installation Procedure





1.Position the splash shield to the vehicle.

2.Install the push-in retainers to secure the splash shield to the vehicle.
