Cadillac
>>
2011
>>
CTS Sedan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
Suspension Control Module

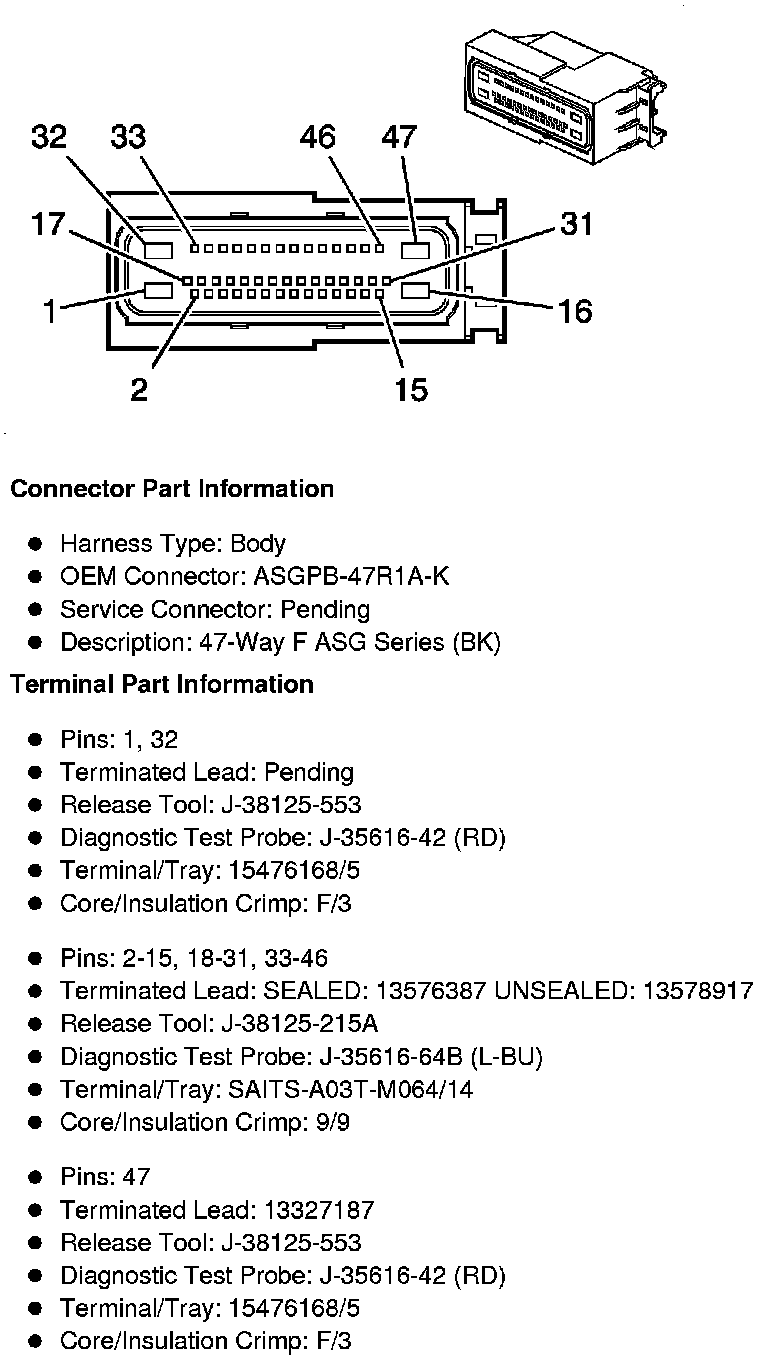

Component Connector End Views

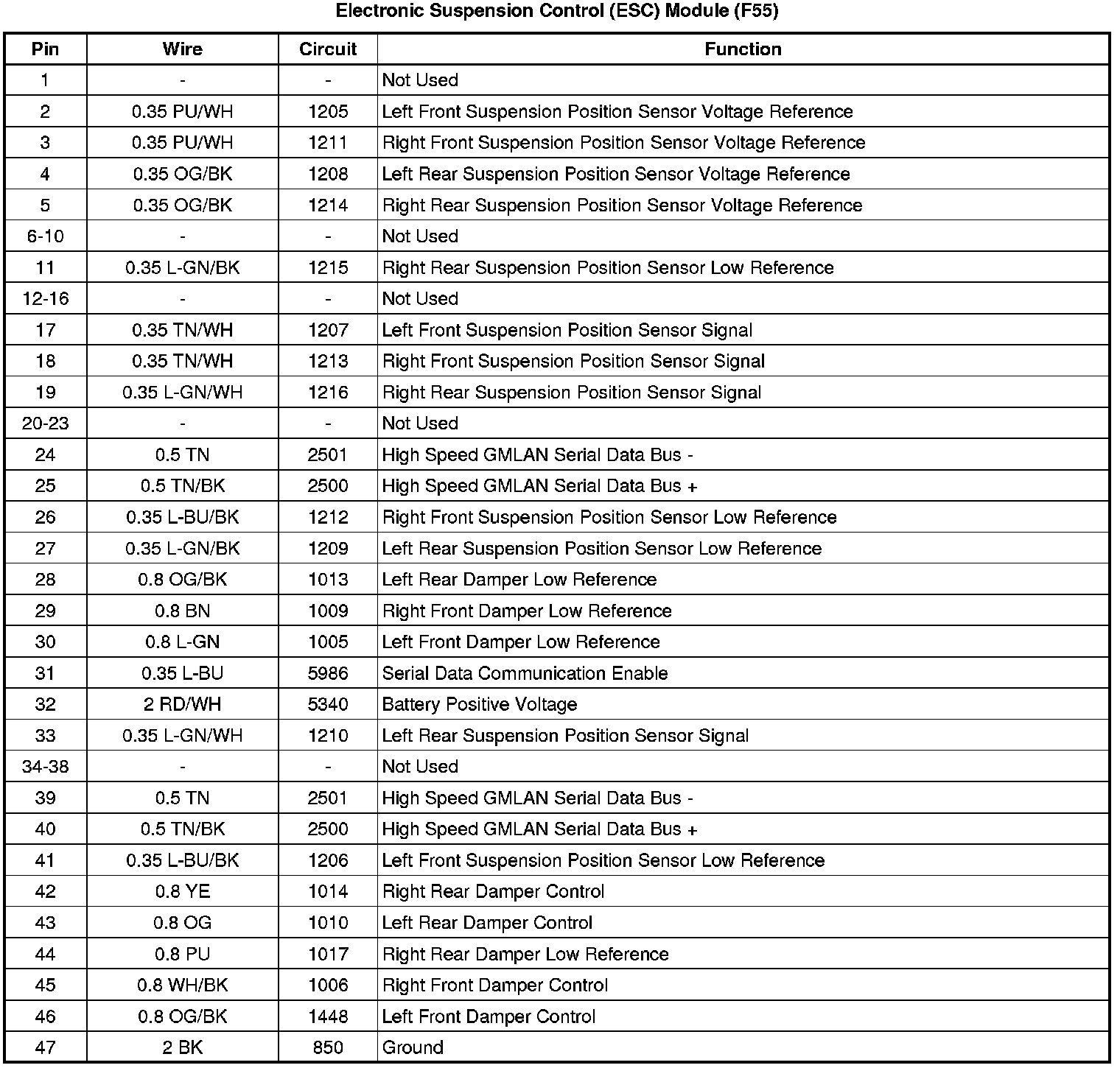

Electronic Suspension Control (ESC) Module (F55)
