Body Control Module
>>
Auxiliary Body Control Module X2 (UA2)
Auxiliary Body Control Module X2 (UA2)

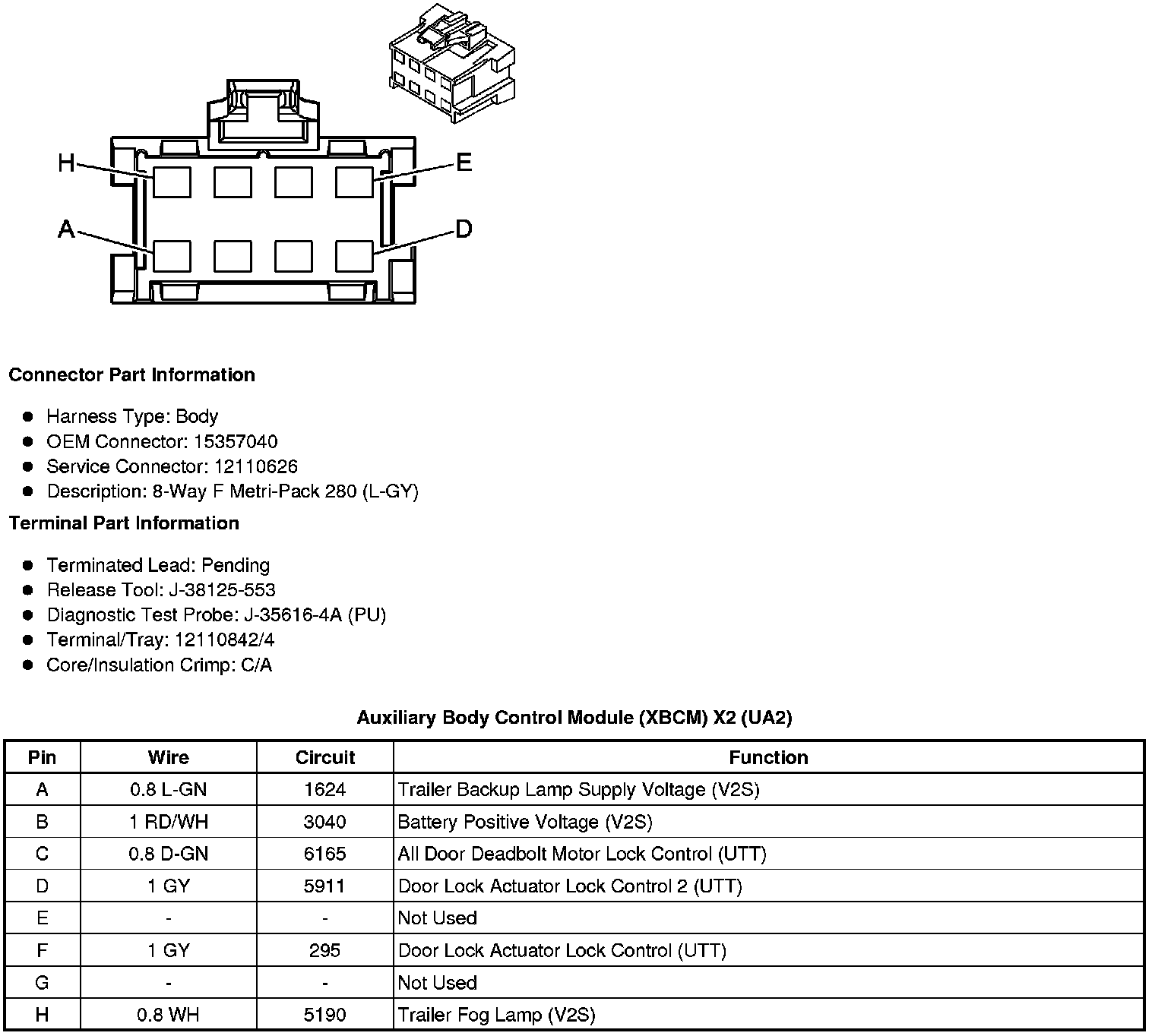

Component Connector End Views
Auxiliary Body Control Module X2 (UA2)
