Electronic Brake Control Module




Component Connector End Views

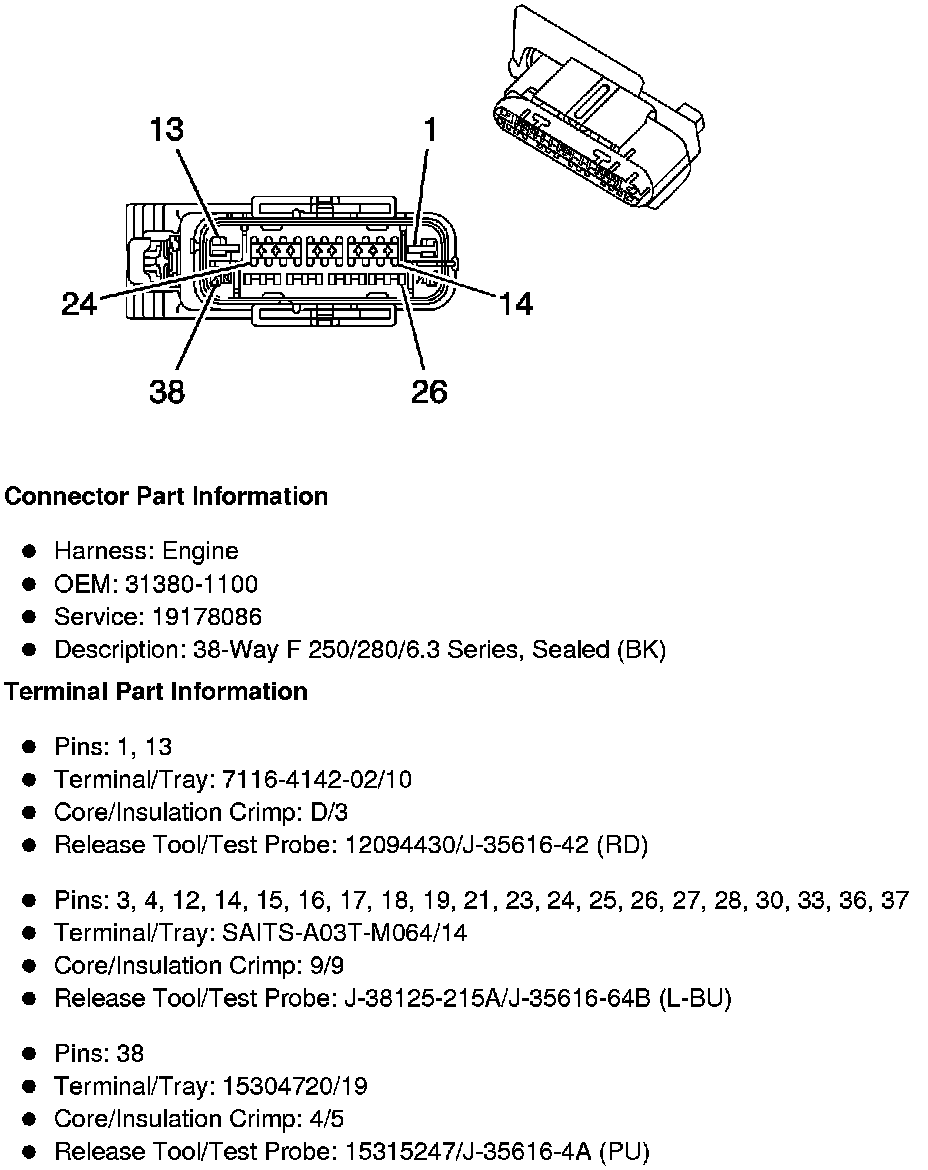

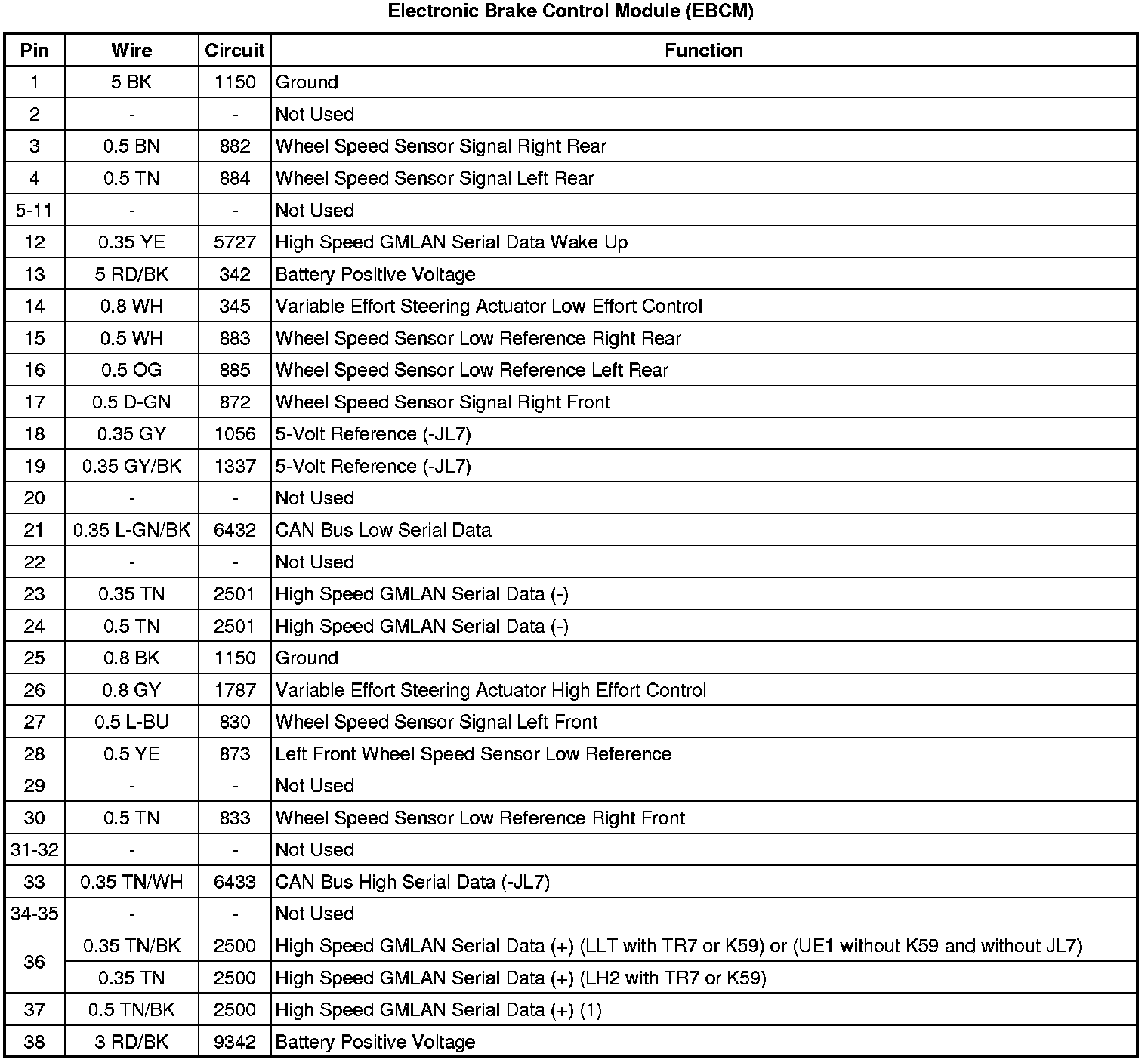

Electronic Brake Control Module (EBCM)

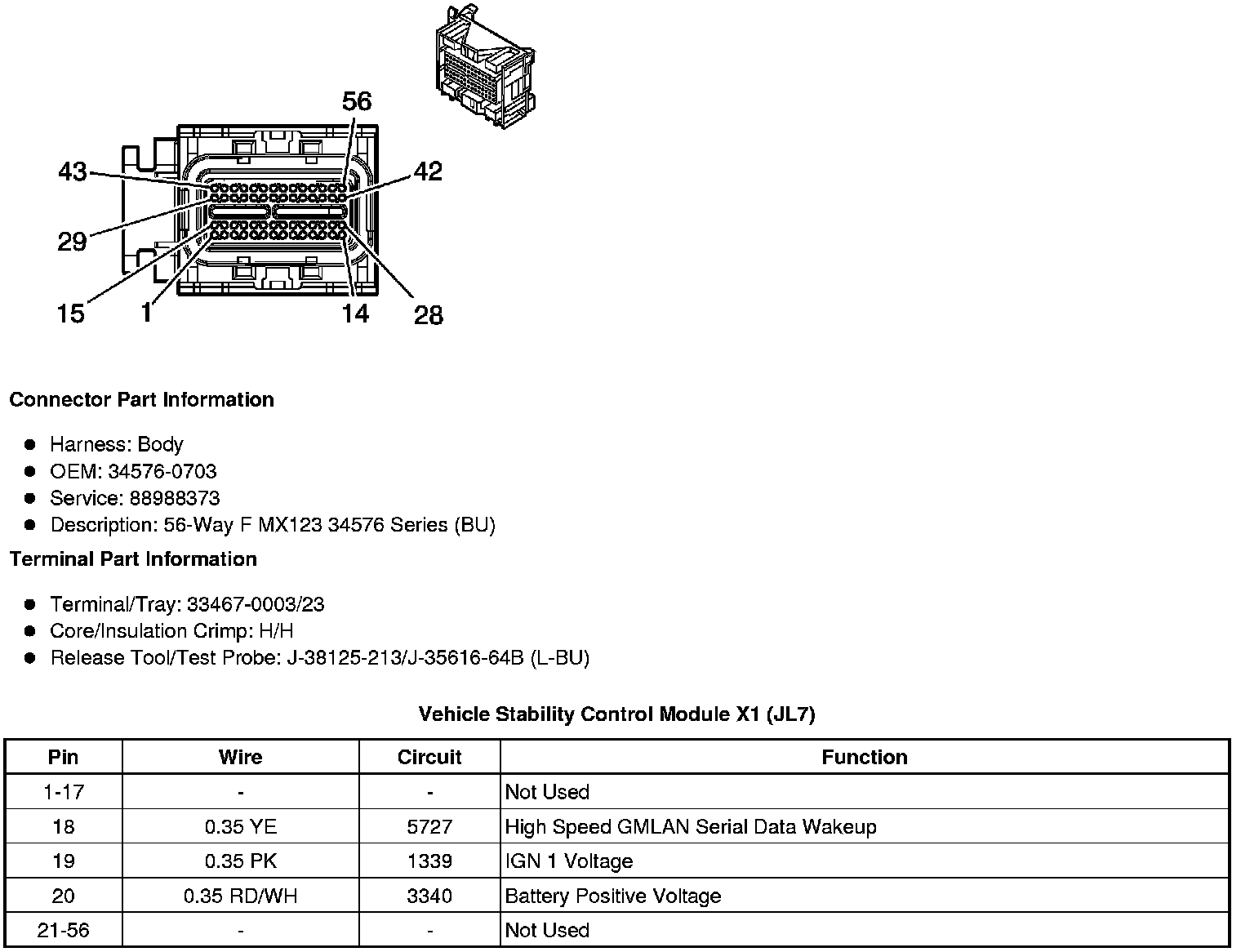

Vehicle Stability Control Module X1 (JL7)

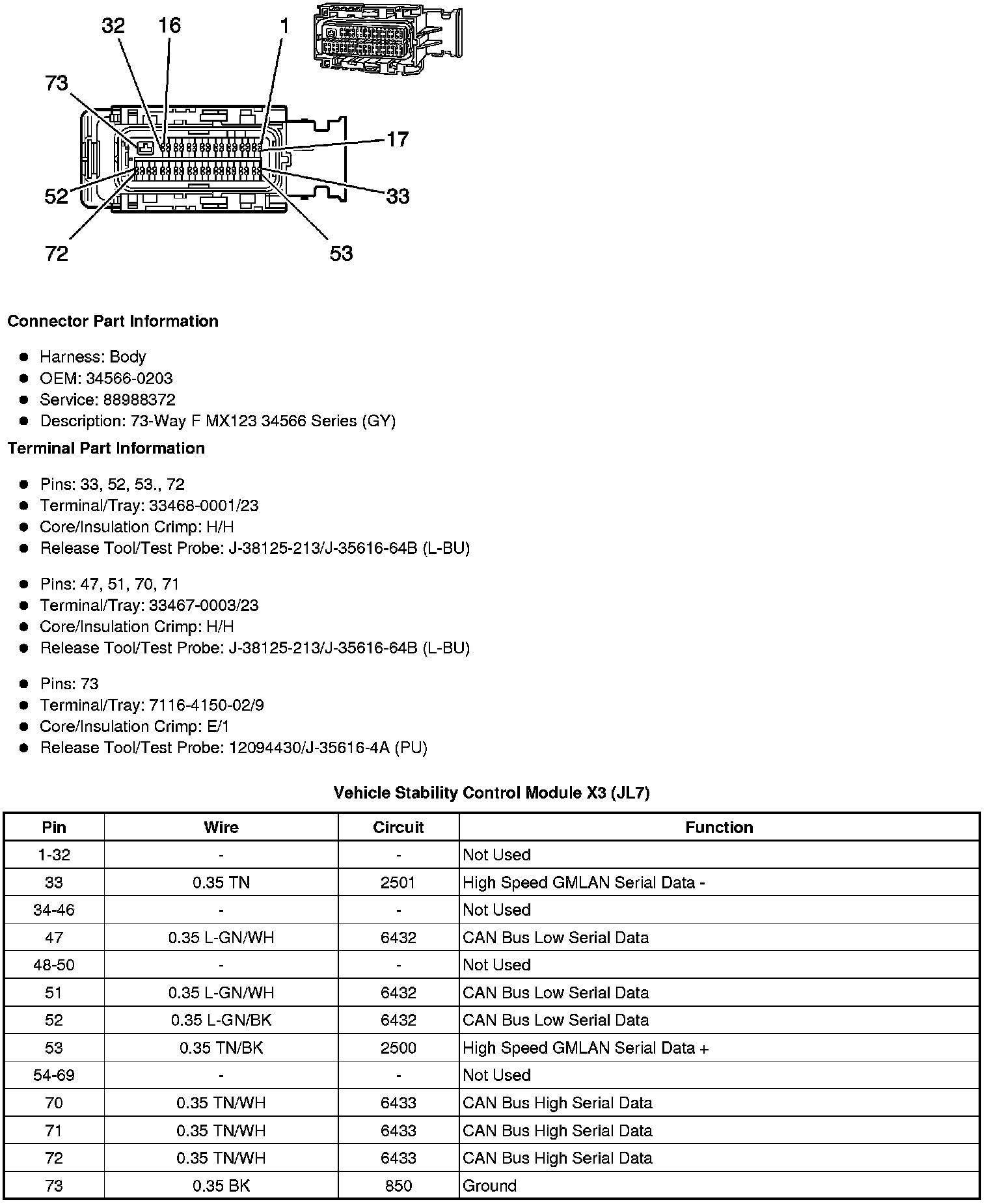

Vehicle Stability Control Module X3 (JL7)
