Home >> Cadillac >> 2010 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Diagrams

Keyless Entry Receiver: Diagrams




Component Connector End Views

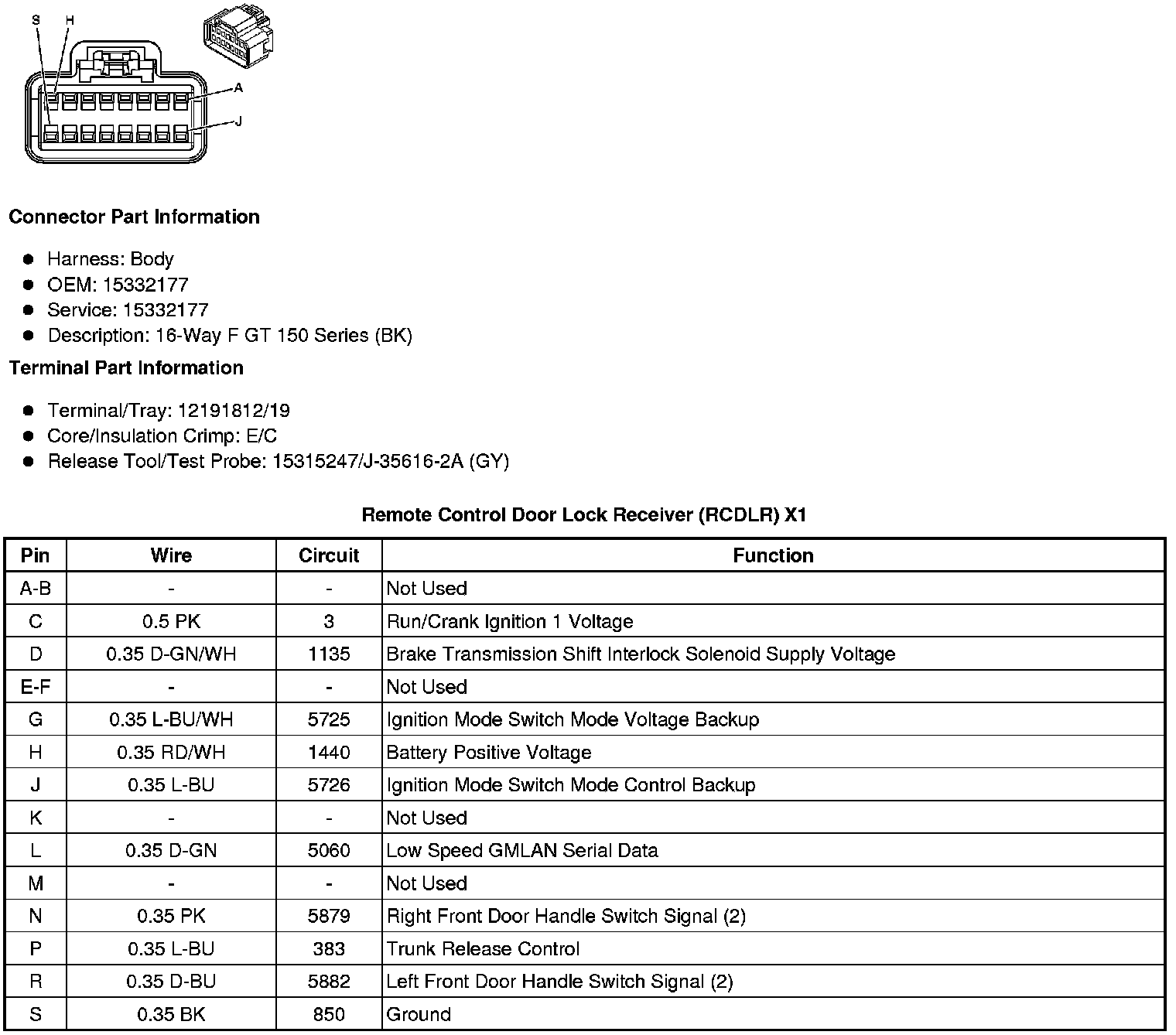

Remote Control Door Lock Receiver (RCDLR) X1

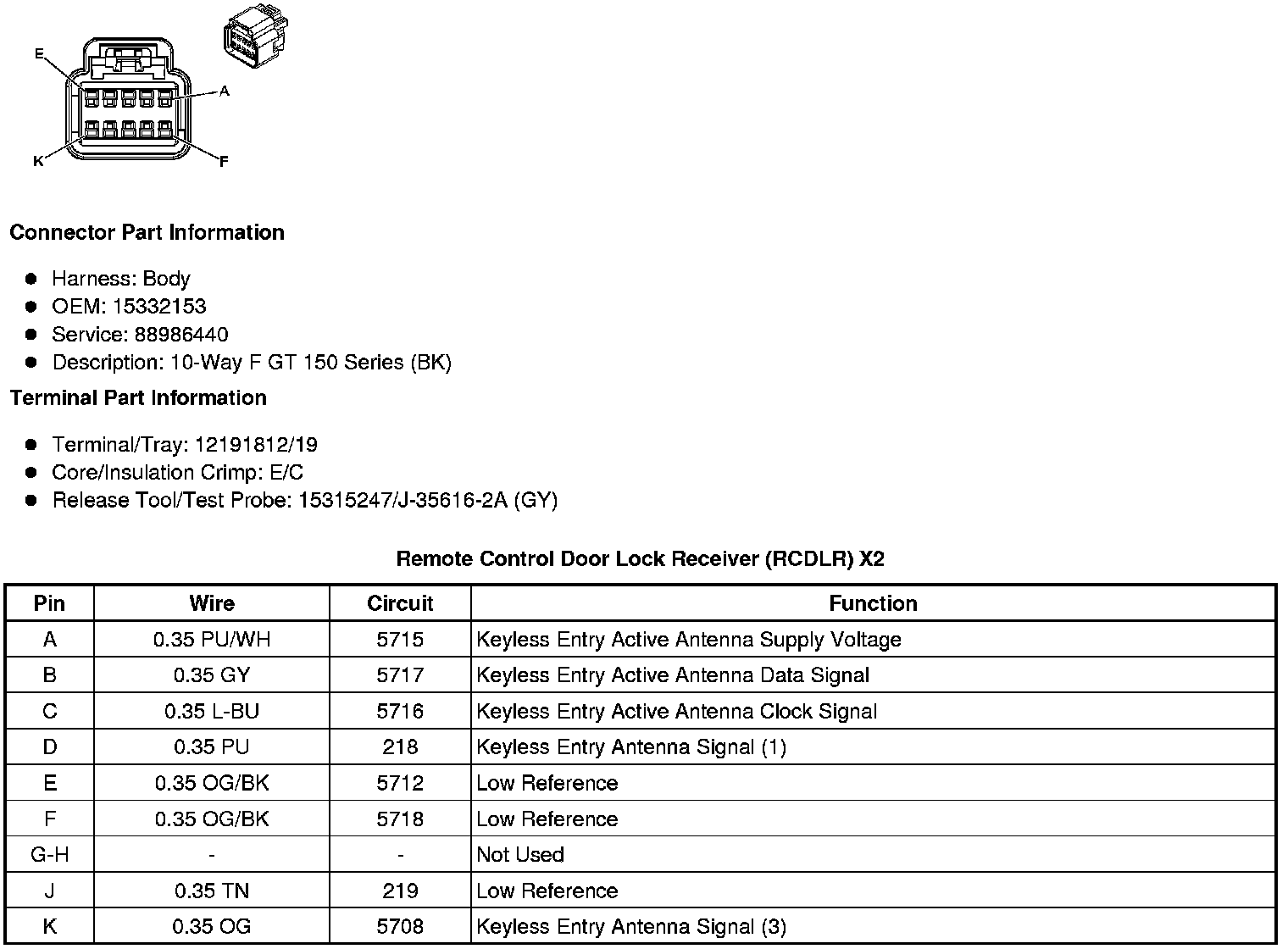

Remote Control Door Lock Receiver (RCDLR) X2

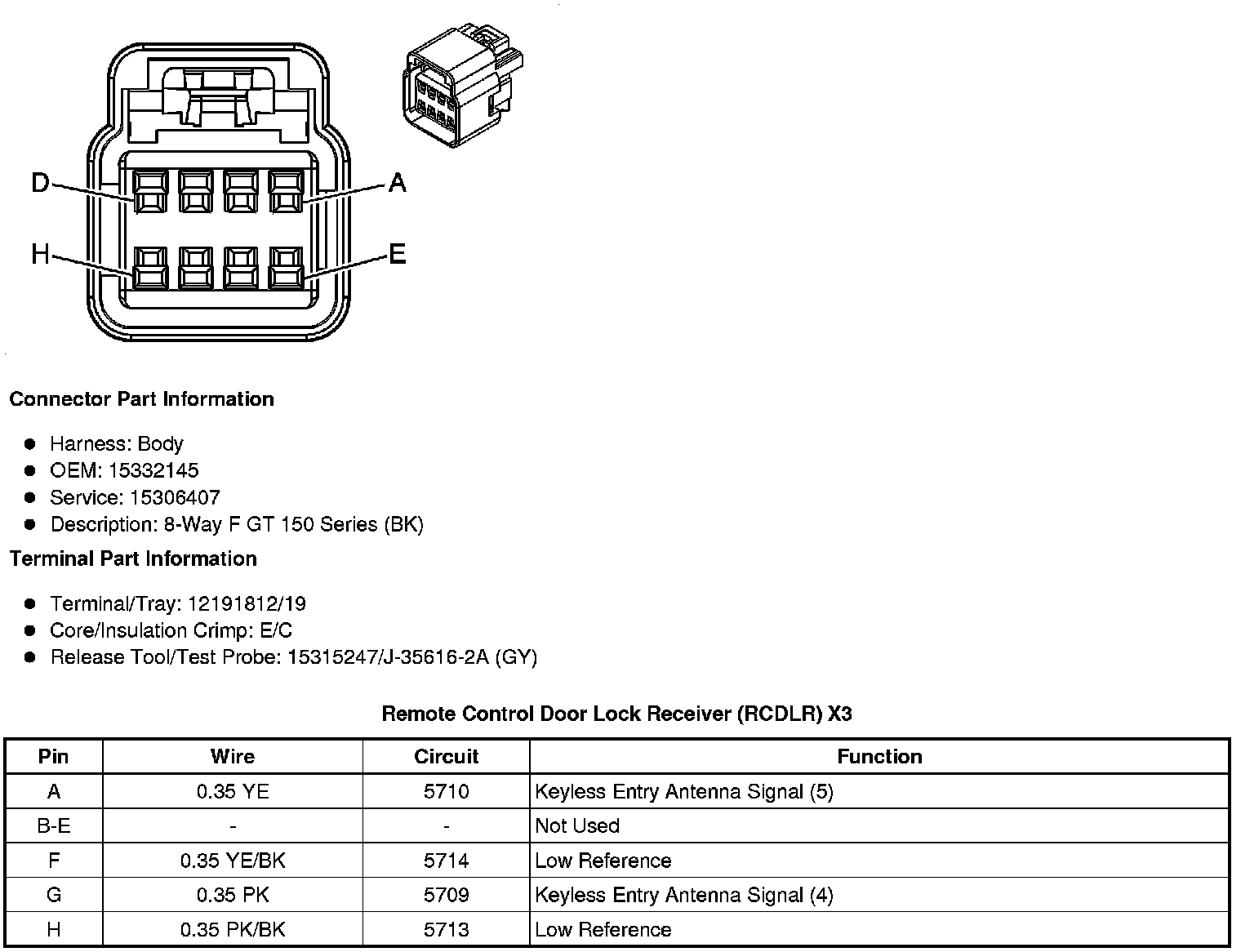

Remote Control Door Lock Receiver (RCDLR) X3
