Cadillac
>>
2010
>>
SRX FWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
Entertainment System Control Module
Component Connector End Views

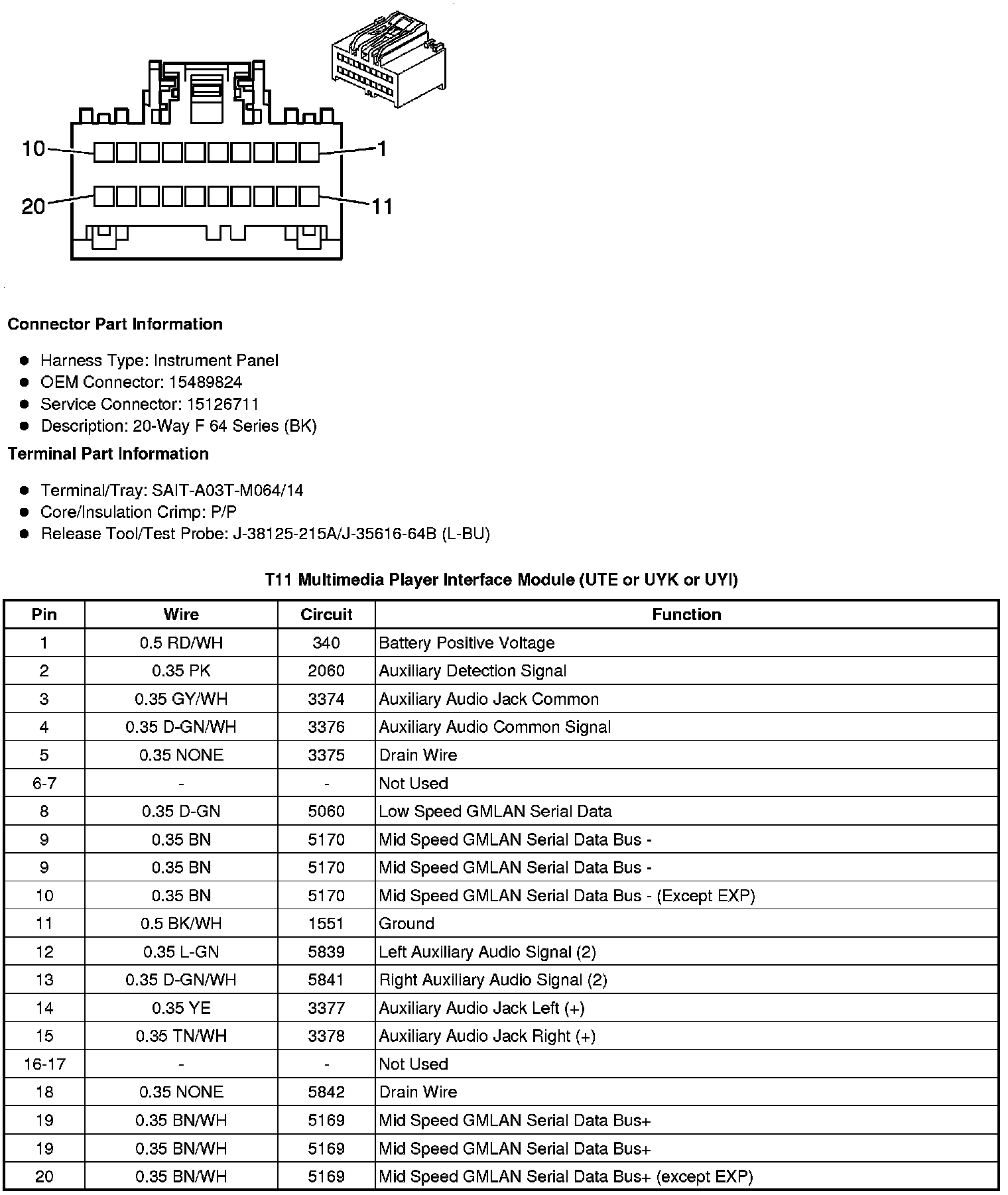

T11 Multimedia Player Interface Module (UTE or UYK or UYI)
