Collision Avoidance Module




Component Connector End Views

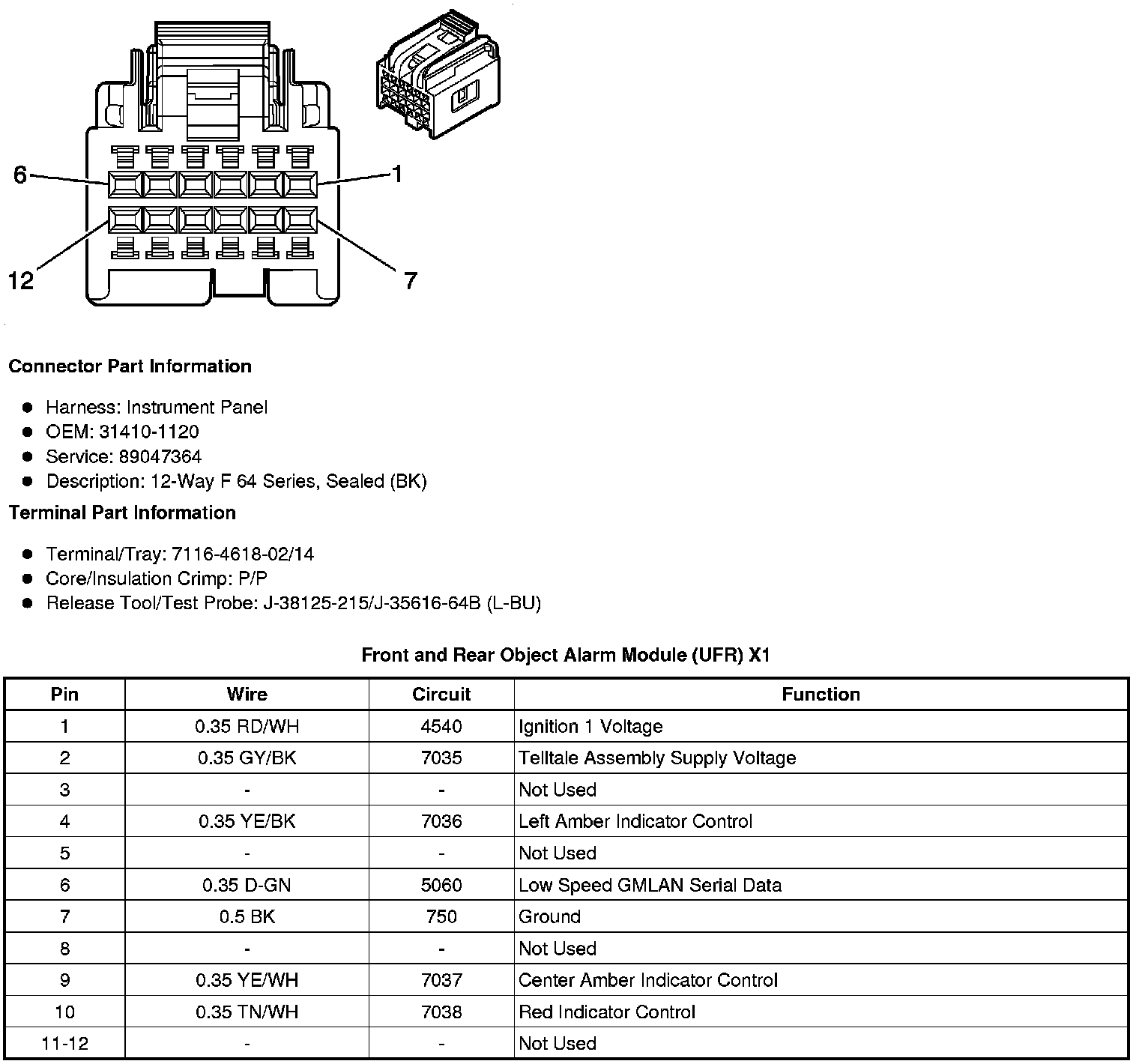

Front and Rear Object Alarm Module (UFR) X1

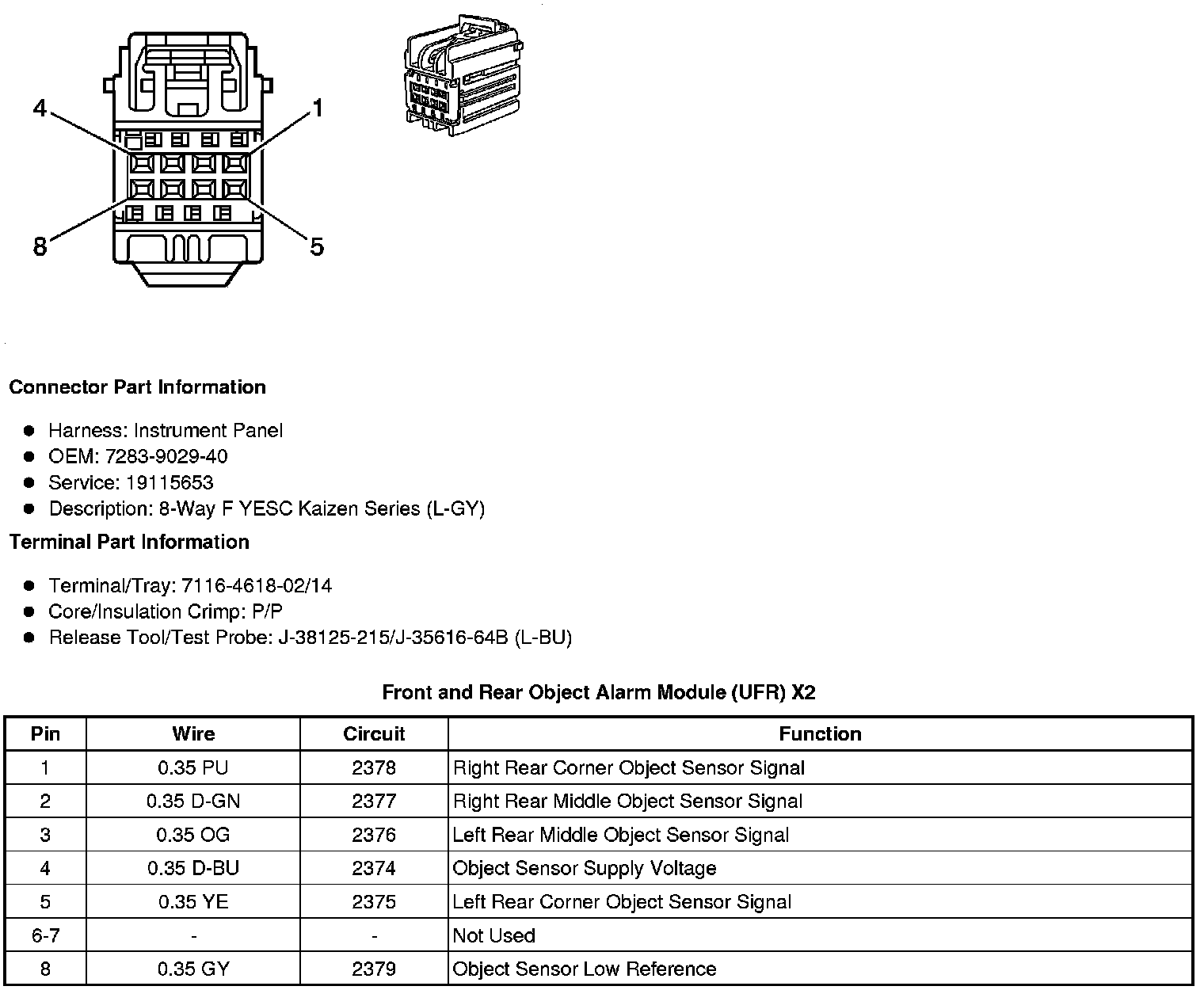

Front and Rear Object Alarm Module (UFR) X2

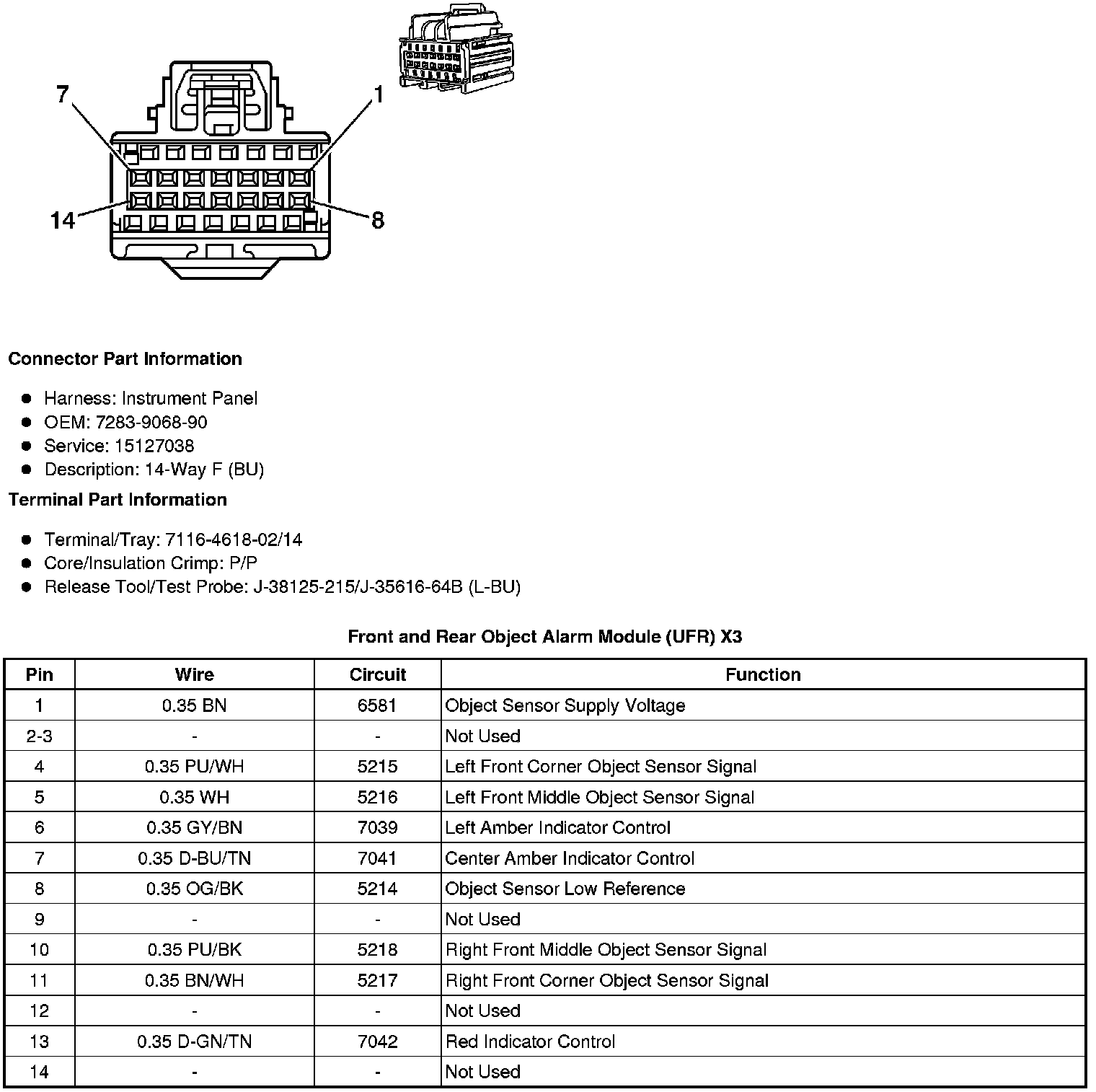

Front and Rear Object Alarm Module (UFR) X3
