Home >> Cadillac >> 2010 >> DTS V8-4.6L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Diagrams

Cruise Control Module: Diagrams

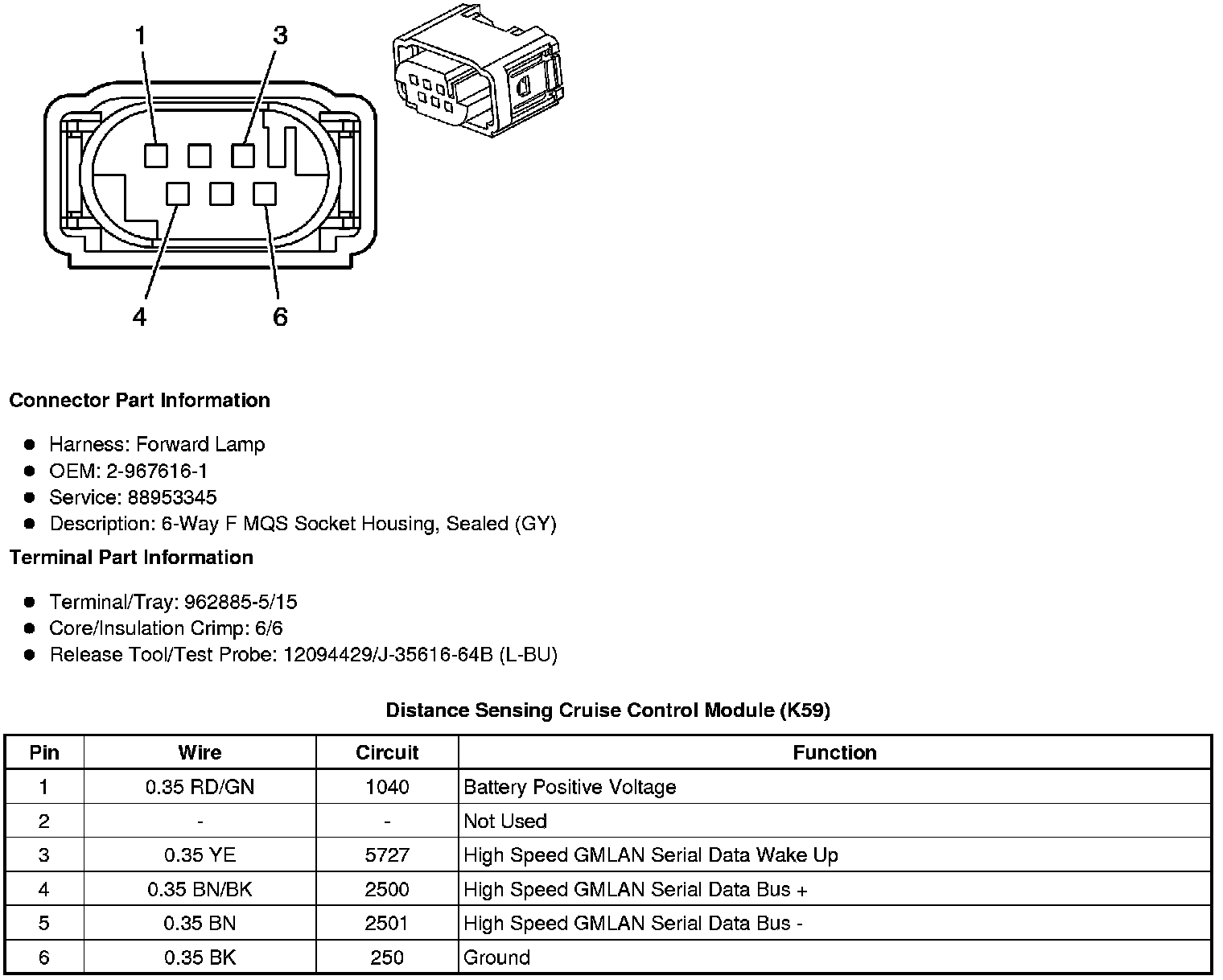

Component Connector End Views

Distance Sensing Cruise Control Module (K59)
