Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column Control Module
>>
Steering Column Lock Control Module X1 (UA2)
Steering Column Lock Control Module X1 (UA2)
Component Connector End Views

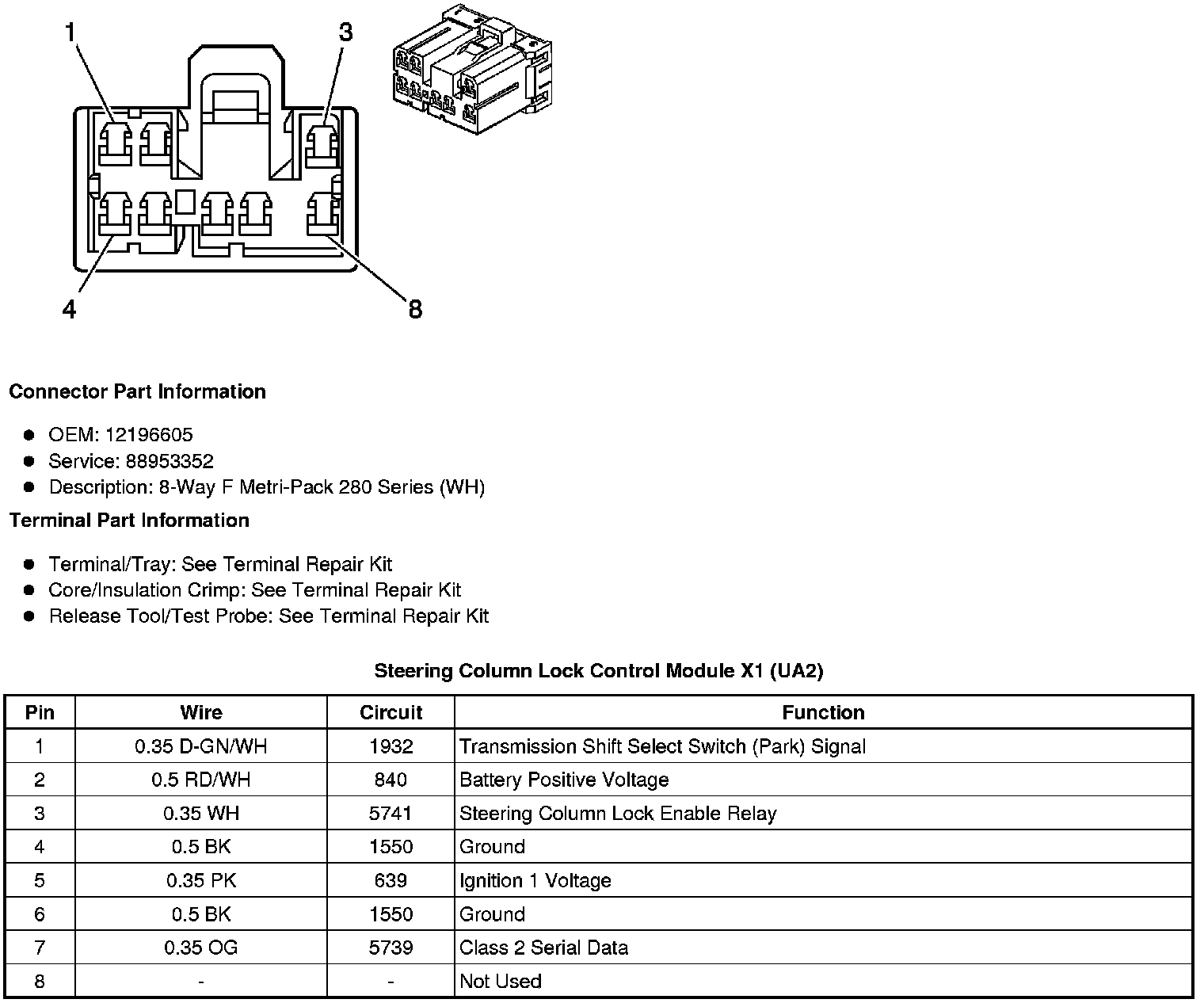

Steering Column Lock Control Module X1 (UA2)
