Power Seat Control Module
>>
Seat Lumbar Pump/Control Module - Driver
Seat Lumbar Pump/Control Module - Driver

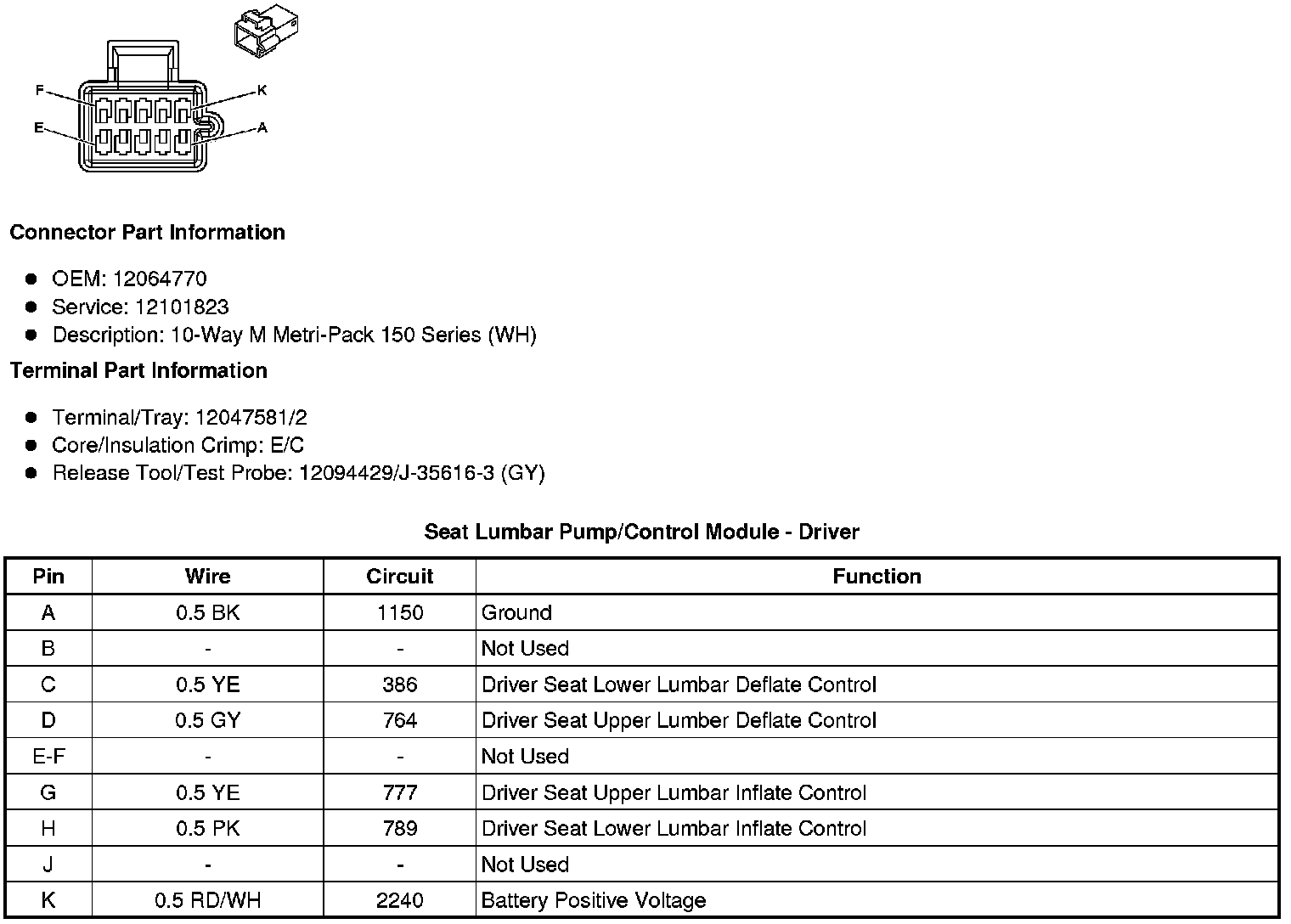

Component Connector End Views
Seat Lumbar Pump/Control Module - Driver
