lemon-mirror
:
Home
>>
Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
Navigation System

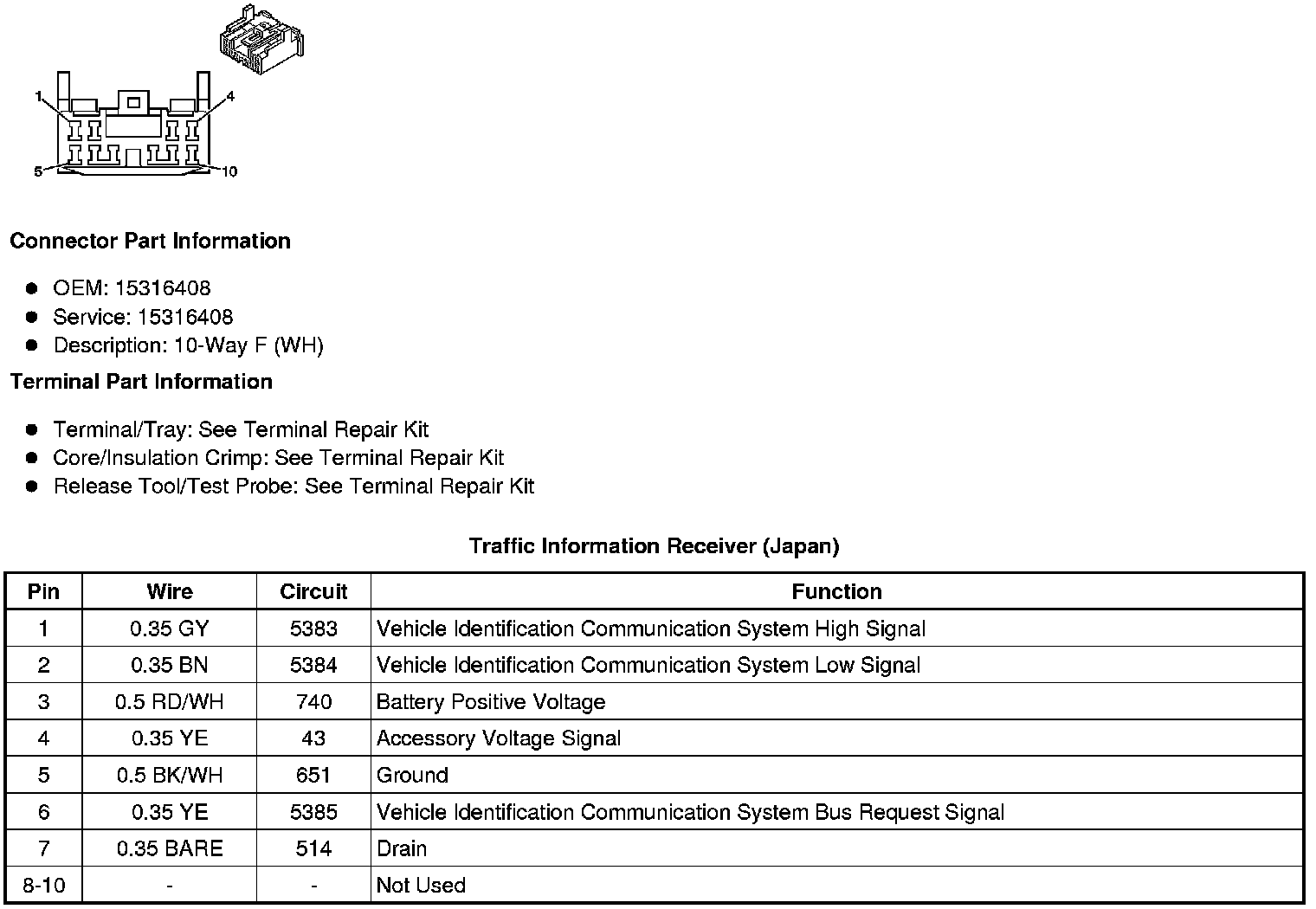

Component Connector End Views
Traffic Information Receiver (Japan)
