Engine Control Module (ECM) - X3
Engine Control Module (ECM) - X3
Component Connector End Views

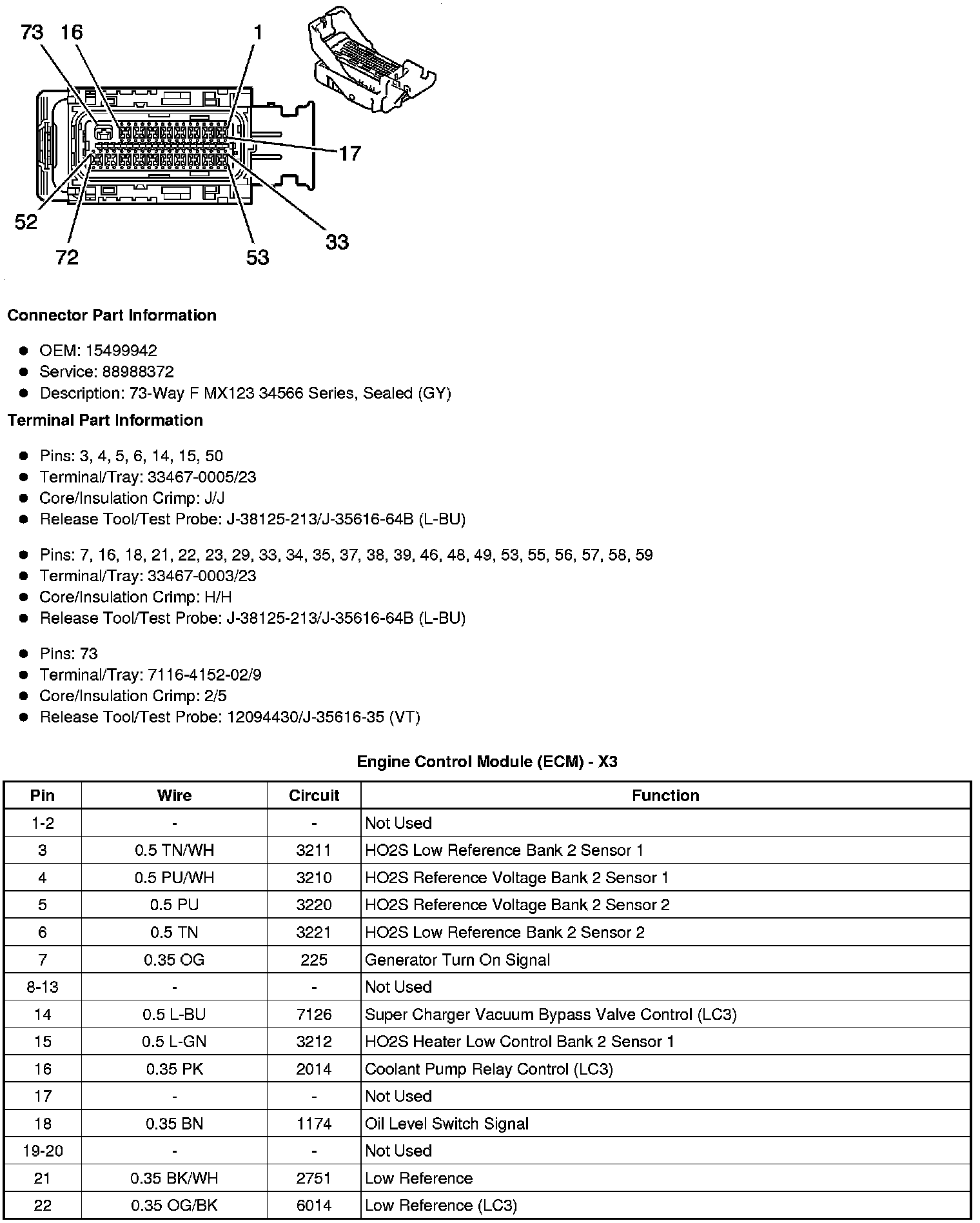

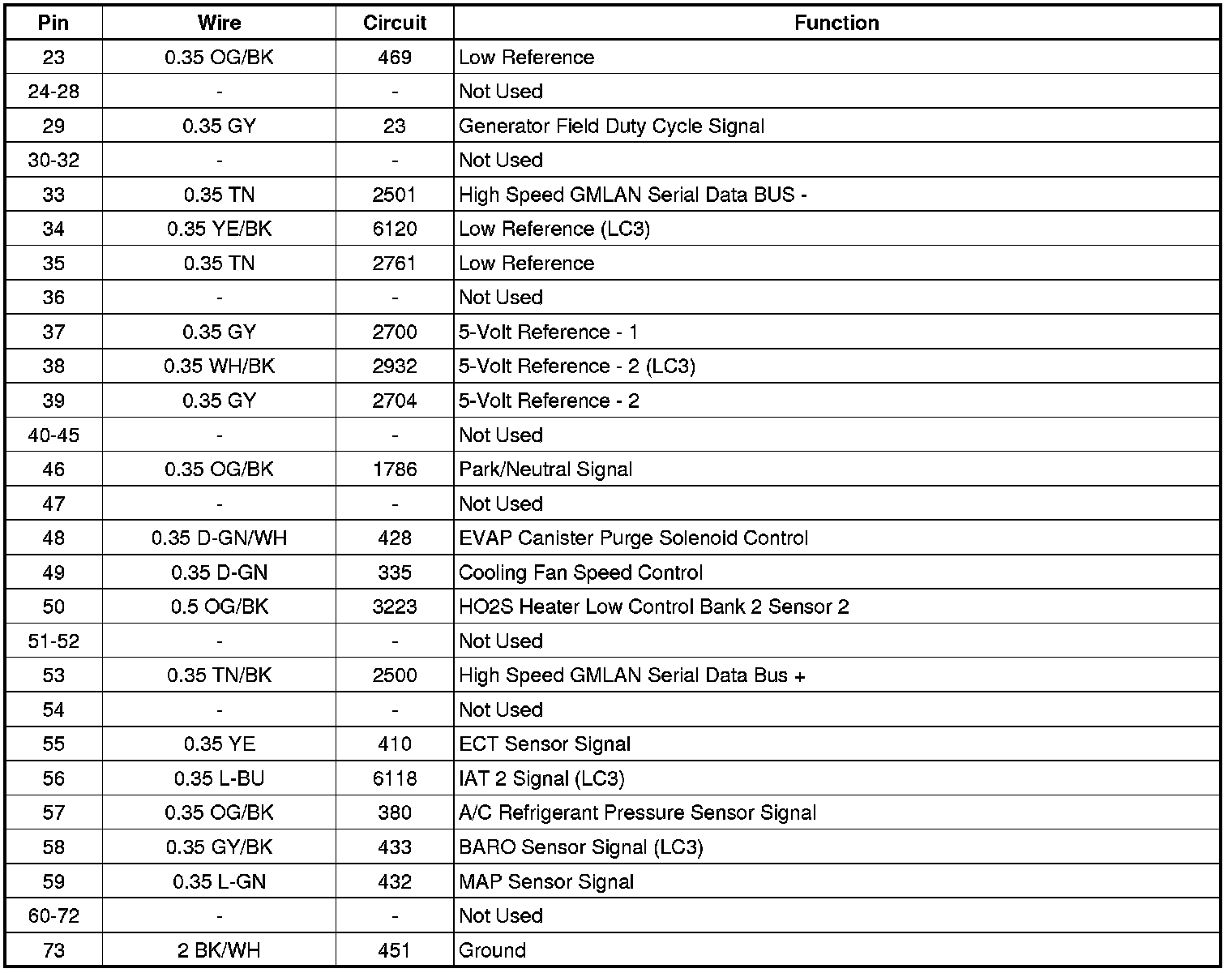

Engine Control Module (ECM) - X3
