Vehicle Communication Interface Module (VCIM) X3

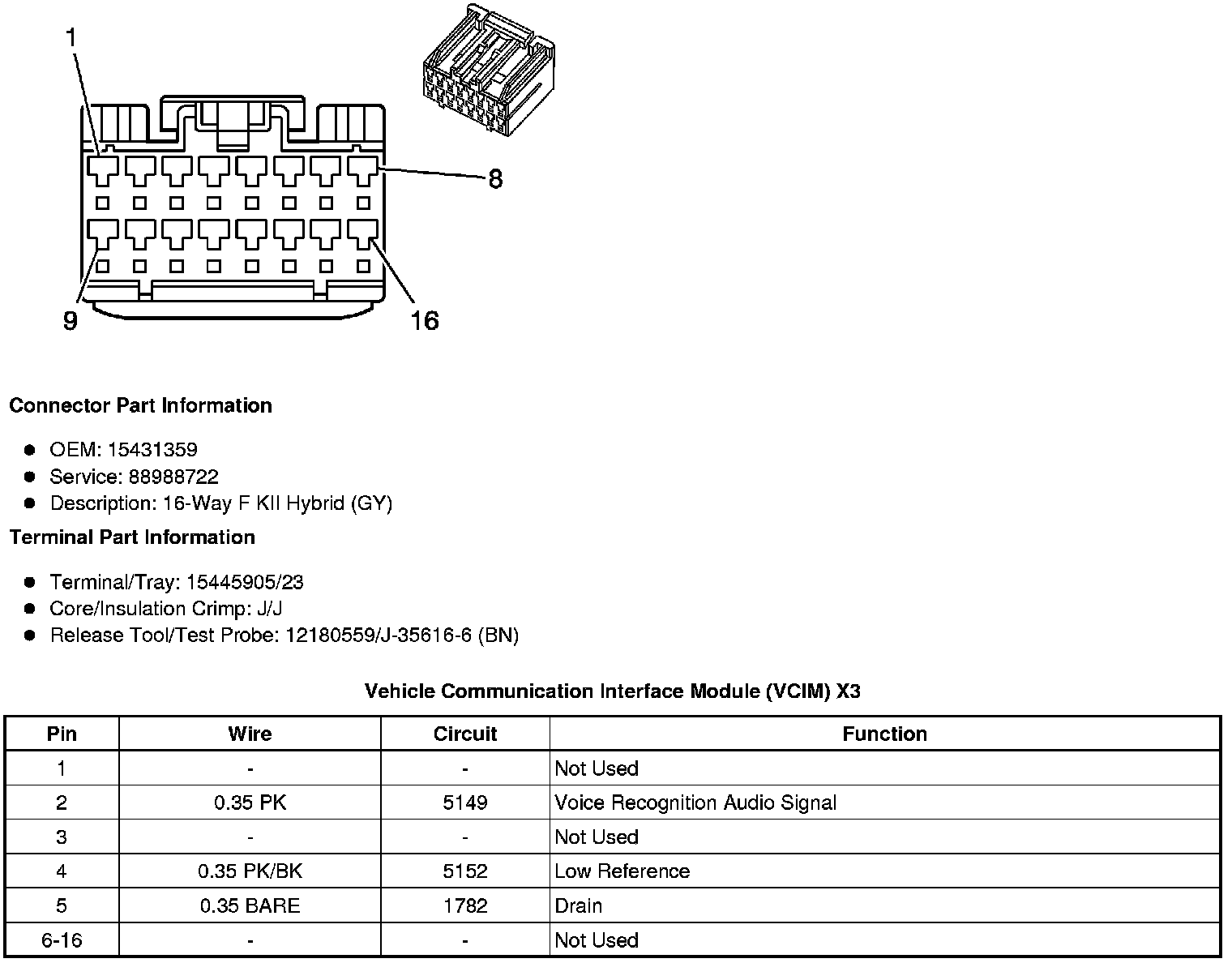

Vehicle Communication Interface Module (VCIM) X3
Component Connector End Views
Vehicle Communication Interface Module (VCIM) X3
