Air Bag Control Module
>>
Inflatable Restraint Side Impact Module - Right
Inflatable Restraint Side Impact Module - Right

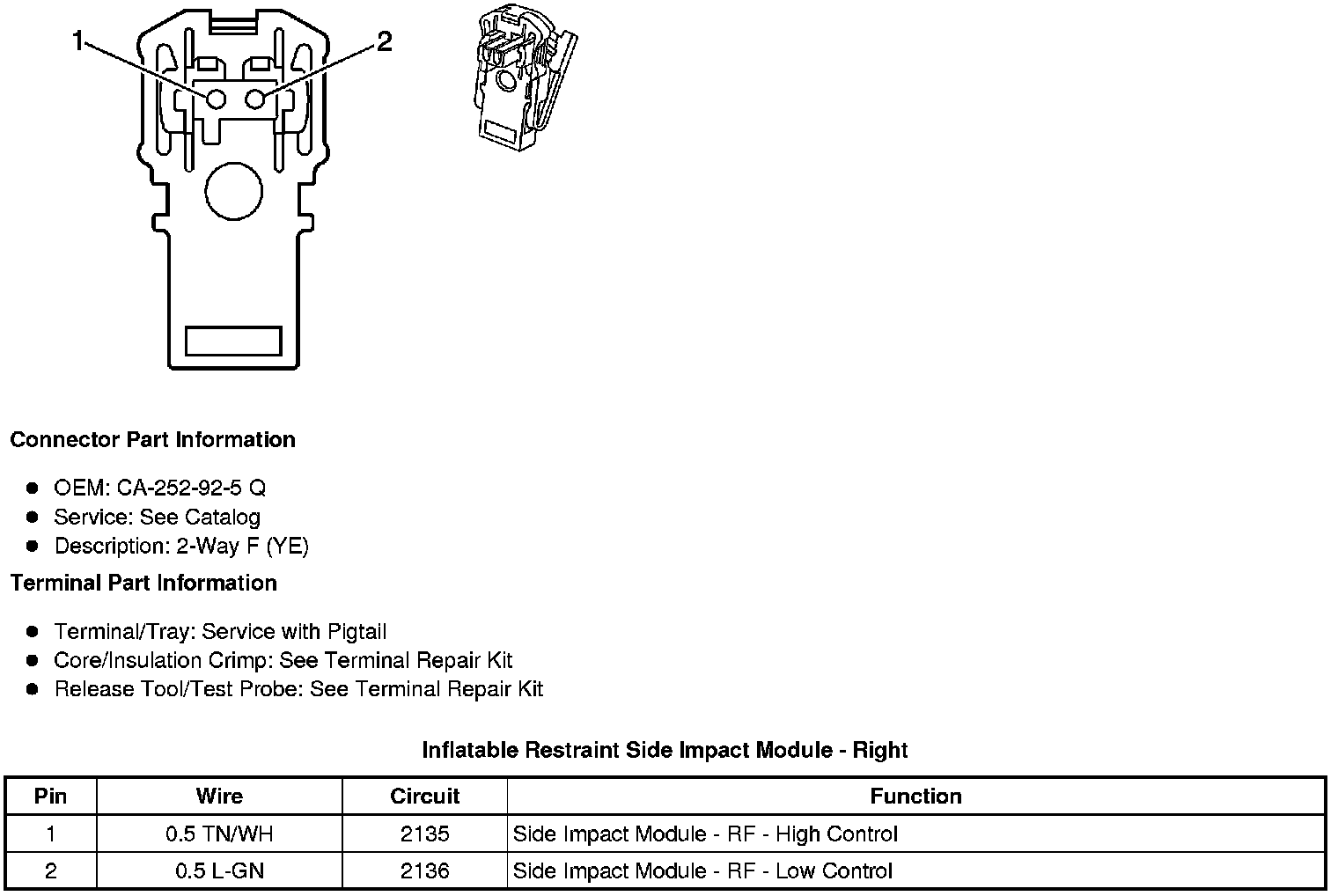

Component Connector End Views
Inflatable Restraint Side Impact Module - Right
