Air Bag Control Module
>>
Inflatable Restraint Side Impact Module - Left
Inflatable Restraint Side Impact Module - Left

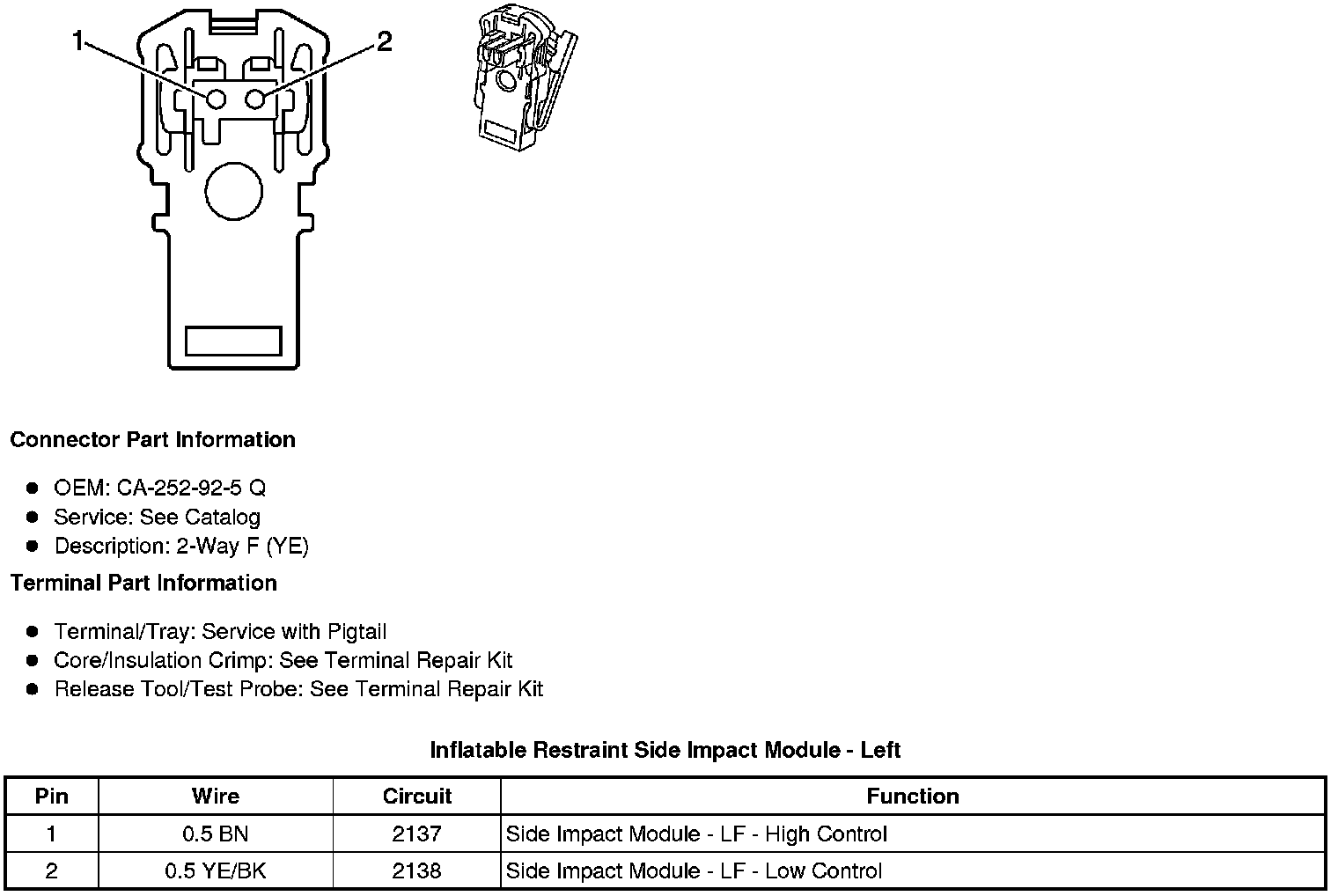

Component Connector End Views
Inflatable Restraint Side Impact Module - Left
