Active Exhaust System Control Module
>>
Exhaust Tail Pipe Flow Valve Control Module X2
Exhaust Tail Pipe Flow Valve Control Module X2
Component Connector End Views

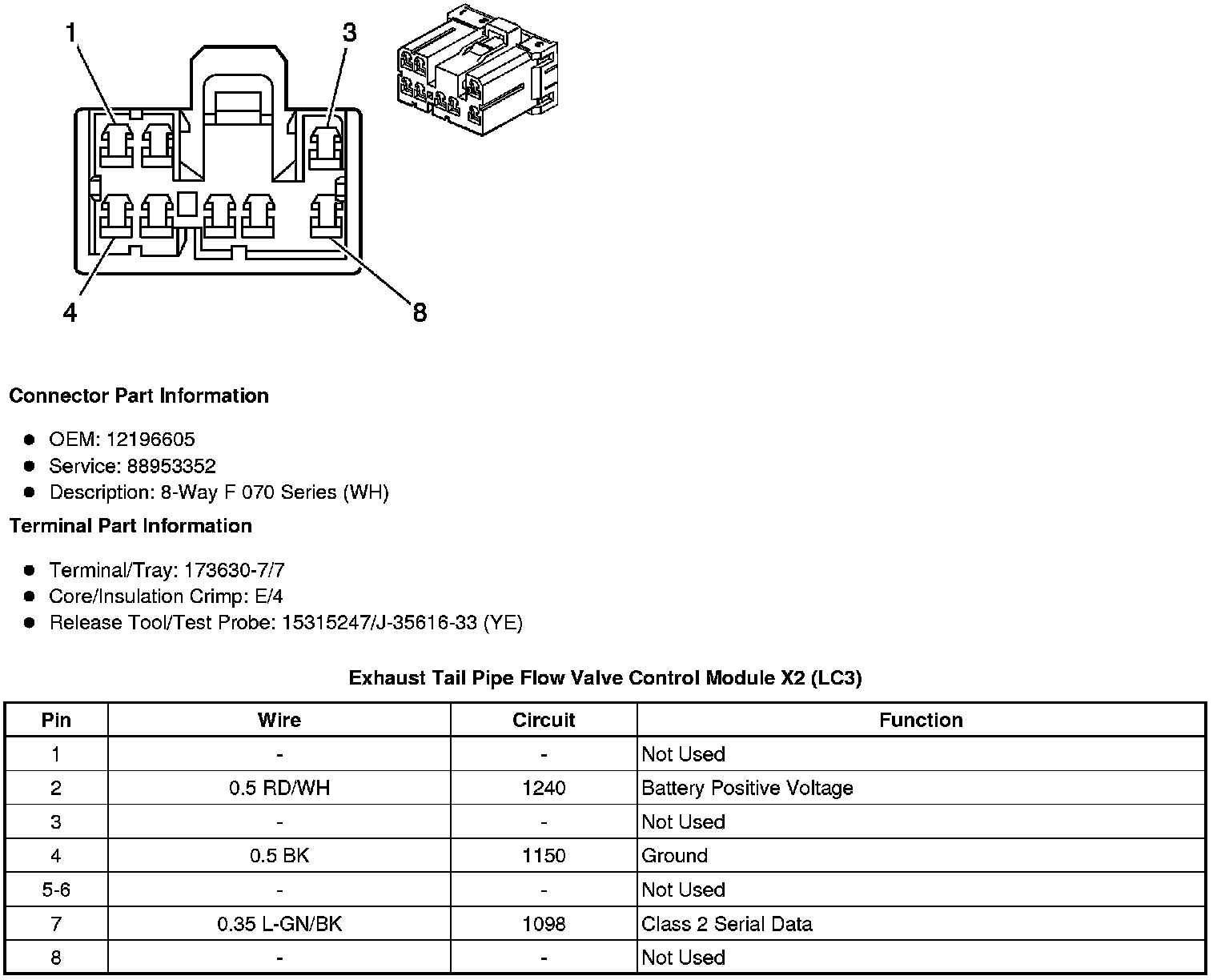

Exhaust Tail Pipe Flow Valve Control Module X2 (LC3)
