Home >> Cadillac >> 2009 >> STS RWD V8-4.4L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

Intake Manifold

Supercharger

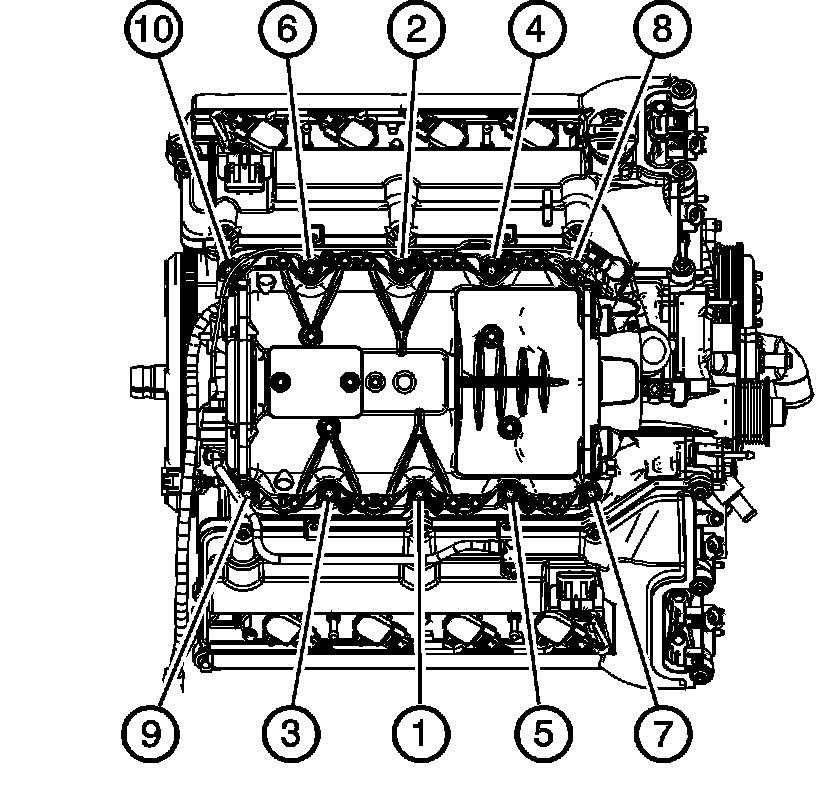

Bolt In Sequence 25 Nm (18 lb ft)


THROTTLE BODY

Throttle Body Bolt 10 Nm (89 lb in)
