Knock Sensor: Diagrams
Component Connector End Views

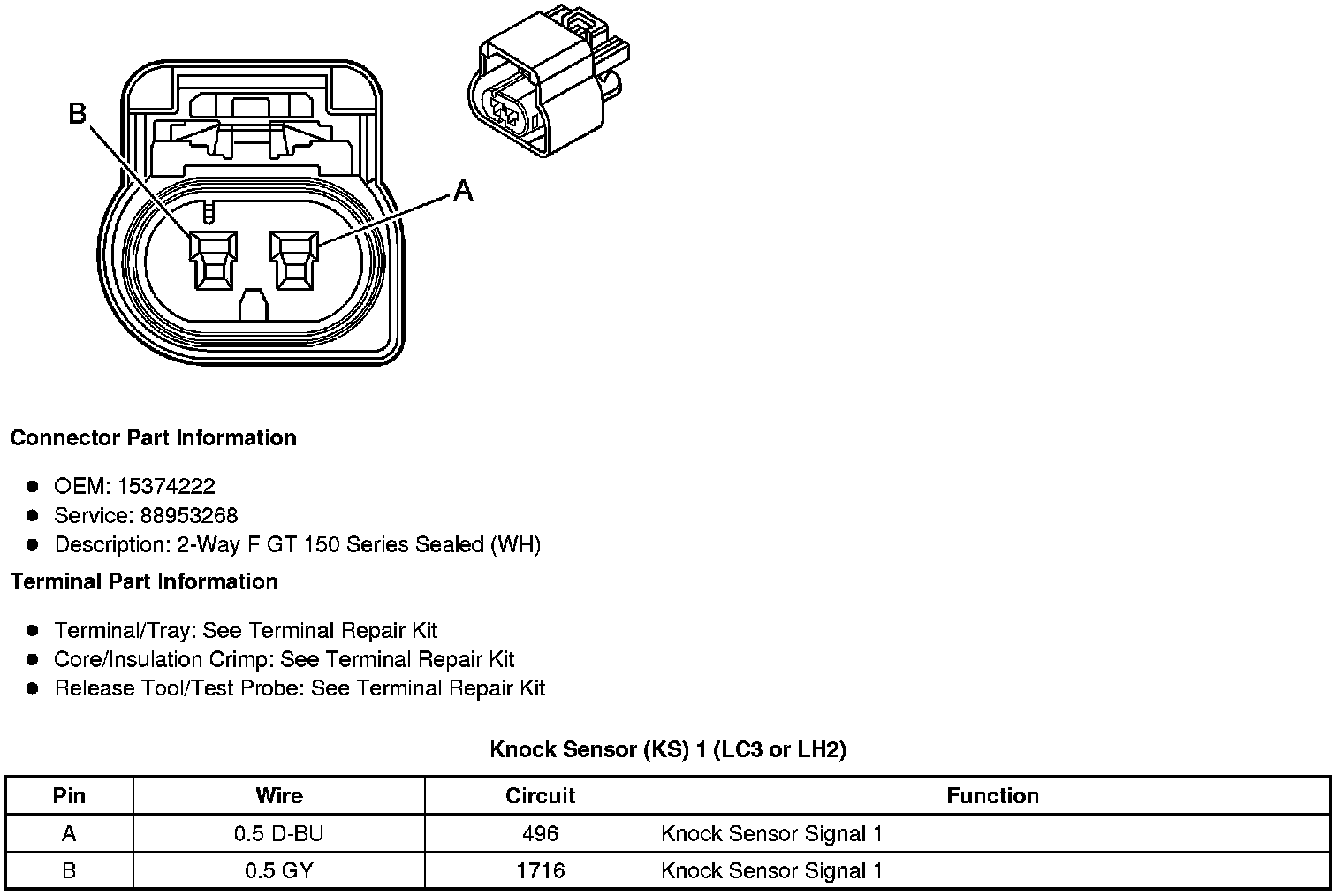

Knock Sensor (KS) 1 (LC3 or LH2)
Knock Sensor (KS) 2 (LC3 or LH2)
